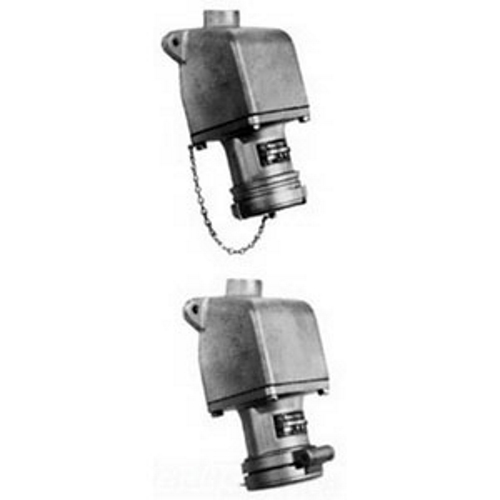

Appleton® Powertite® ADRE6044-125-RS Pin and Sleeve Receptacle with AEE Mounting Box, 600 VAC/250 VDC, 60 A, 4 Poles, 4 Wires
Custom_Product_Images_Illustration
Appleton® Powertite® ADRE6044-125-RS Pin and Sleeve Receptacle with AEE Mounting Box, 600 VAC/250 VDC, 60 A, 4 Poles, 4 Wires
SKU1097672
MFGR #ADRE6044125RS
Your Cost: $623.33/ea
The Powertite Series uses the versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 Amp designs, these plugs and receptacles are built of triple coated, copperfree aluminum to withstand harsh weather, corrosive atmospheres and rough working conditions. Safety features include widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene bushing that seals out water and dust. Shell only or shell plus extra pole grounding designs provide safe, "make first, break last" grounding. Both standard and reverse service versions are available and field conversion between the two is simple using a matching plug and receptacle for most styles. Appleton also offers a nonmetallic plug designed to work with Powertite receptacles.
The Powertite Series uses the versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 Amp designs, these plugs and receptacles are built of triple coated, copperfree aluminum to withstand harsh weather, corrosive atmospheres and rough working conditions. Safety features include widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene bushing that seals out water and dust. Shell only or shell plus extra pole grounding designs provide safe, "make first, break last" grounding. Both standard and reverse service versions are available and field conversion between the two is simple using a matching plug and receptacle for most styles. Appleton also offers a nonmetallic plug designed to work with Powertite receptacles.
Application For ACP6044BC Metallic Clamping Ring Plug ARRA Compliant N Buy American Compliant N Catalog Number ADRE6044125RS Connection Pressure Wire Terminal Cord Diameter 1/2 to 1-1/4 in Country of Origin MX Currency USD Dimensions 9.75 in H x 6.38 in W x 4.73 in D EU RoHS Indicator N Frequency Rating 50 to 400 Hz Gross Weight Per Pack 5.0000 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Height 6.00 in Height [Metric] 15.2400 cm Horsepower 30 hp Hub Size 1-1/4 in Length 10.10 in Length [Metric] 25.6540 cm Material Copper Free Aluminum Mounting Surface Mount With 1-1/4 IN Hub NEMA Rating NEMA 3/3R/4/4X Number Of Poles 4 Phase 3 Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 Standards UL1682UL 1686UL 50E File No. E145916E145917CSA C22.2 No. 182.1CSA File No. 065179NEMA FB-11 Sub Brand Powertite Temperature Rating -40 to 225 °F Terminal Type Pressure Wired Type 3-Phase Grounding Style 1 Reverse Service UNSPSC 39121406 UPC 11 78138171081 UPC 12 781381710817 Width 7.30 in Width [Metric] 18.5420 cm Wire Size 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex) Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 60 A Number of Wires 4 Voltage Rating 600/250 VAC//VDC For ACP6044BC Metallic Clamping Ring Plug For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 5/16 IN; Weatherproof spring door, brass with beryllium copper springs Shell grounding style 1 Natural finish glass filled polyester insulating blocks 5/16 in dia wire recess Designed to supply power to portable or fixed electrical equipment Suitable for use in locations where a weatherproof enclosure is required Weatherproof spring door, brass with beryllium copper springs 11/16 in wire recess diameter Weatherproof spring door, brass with beryllium copper springs Surface mount 6 - 2 AWG (building), 6 - 4 AWG (extra flex) 3 Phase Copper free (4/10 of 1 PCT maximum) aluminum Epoxy powder coat Reverse service Shell grounding
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | For ACP6044BC Metallic Clamping Ring Plug |
ARRA Compliant | N |
Buy American Compliant | N |
Catalog Number | ADRE6044125RS |
Connection | Pressure Wire Terminal |
Cord Diameter | 1/2 to 1-1/4 in |
Country of Origin | MX |
Currency | USD |
Dimensions | 9.75 in H x 6.38 in W x 4.73 in D |
EU RoHS Indicator | N |
Frequency Rating | 50 to 400 Hz |
Gross Weight Per Pack | 5.0000 lb |
Gross Weight per Pack Metric | 2.27 |
Gross Weight UOM Metric | kg |
Height | 6.00 in |
Height [Metric] | 15.2400 cm |
Horsepower | 30 hp |
Hub Size | 1-1/4 in |
Length | 10.10 in |
Length [Metric] | 25.6540 cm |
Material | Copper Free Aluminum |
Mounting | Surface Mount With 1-1/4 IN Hub |
NEMA Rating | NEMA 3/3R/4/4X |
Number Of Poles | 4 |
Phase | 3 |
Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
Standards | UL1682UL 1686UL 50E File No. E145916E145917CSA C22.2 No. 182.1CSA File No. 065179NEMA FB-11 |
Sub Brand | Powertite |
Temperature Rating | -40 to 225 °F |
Terminal Type | Pressure Wired |
Type | 3-Phase Grounding Style 1 Reverse Service |
UNSPSC | 39121406 |
UPC 11 | 78138171081 |
UPC 12 | 781381710817 |
Width | 7.30 in |
Width [Metric] | 18.5420 cm |
Wire Size | 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex) |
Stock Status | NONSTOCK |
Brand | Appleton™ |
Manufacturer | Appleton |
Amperage Rating | 60 A |
Number of Wires | 4 |
Voltage Rating | 600/250 VAC//VDC |
For ACP6044BC Metallic Clamping Ring Plug |
For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 5/16 IN; Weatherproof spring door, brass with beryllium copper springs |
Shell grounding style 1 |
Natural finish glass filled polyester insulating blocks |
5/16 in dia wire recess |
Designed to supply power to portable or fixed electrical equipment |
Suitable for use in locations where a weatherproof enclosure is required |
Weatherproof spring door, brass with beryllium copper springs |
11/16 in wire recess diameter |
Weatherproof spring door, brass with beryllium copper springs |
Surface mount |
6 - 2 AWG (building), 6 - 4 AWG (extra flex) |
3 Phase |
Copper free (4/10 of 1 PCT maximum) aluminum |
Epoxy powder coat |
Reverse service |
Shell grounding |
