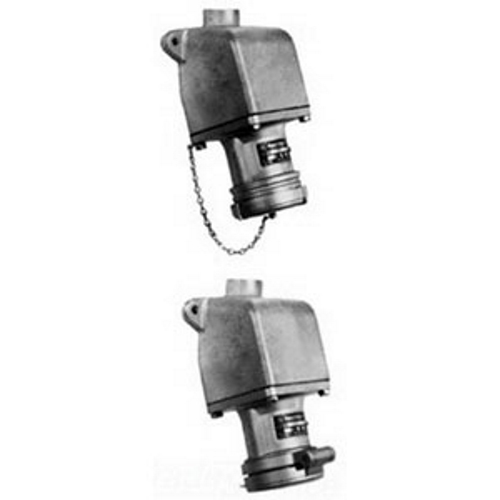

Appleton® Powertite® ADRE3044-100 Pin and Sleeve Receptacle Assembly, 600 VAC/250 VDC, 30 A, 4 Poles, 4 Wires, Natural

Custom_Product_Images_Illustration

Appleton® Powertite® ADRE3044-100 Pin and Sleeve Receptacle Assembly, 600 VAC/250 VDC, 30 A, 4 Poles, 4 Wires, Natural

SKU263176

MFGR #ADRE3044100

Your Cost: $393.23/ea
The Powertite Series uses the versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 Amp designs, these plugs and receptacles are built of triple coated, copperfree aluminum to withstand harsh weather, corrosive atmospheres and rough working conditions. Safety features include widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene bushing that seals out water and dust. Shell only or shell plus extra pole grounding designs provide safe, "make first, break last" grounding. Both standard and reverse service versions are available and field conversion between the two is simple using a matching plug and receptacle for most styles. Appleton also offers a nonmetallic plug designed to work with Powertite receptacles.
The Powertite Series uses the versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 Amp designs, these plugs and receptacles are built of triple coated, copperfree aluminum to withstand harsh weather, corrosive atmospheres and rough working conditions. Safety features include widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene bushing that seals out water and dust. Shell only or shell plus extra pole grounding designs provide safe, "make first, break last" grounding. Both standard and reverse service versions are available and field conversion between the two is simple using a matching plug and receptacle for most styles. Appleton also offers a nonmetallic plug designed to work with Powertite receptacles.

Application

For ACP3044BC Metallic Clamping Ring Plug

ARRA Compliant

N

Buy American Compliant

N

Catalog Number

ADRE3044100

Connection

Pressure Wire Terminal

Cord Diameter

1/2 to 1-1/4 in

Country of Origin

MX

Currency

USD

Dimensions

6.88 in H x 5 in W x 3.45 in D

EU RoHS Indicator

C

Frequency Rating

50 to 400 Hz

Gross Weight Per Pack

10.4000 lb

Gross Weight per Pack Metric

4.72

Gross Weight UOM Metric

kg

Height

6.50 in

Height [Metric]

16.5100 cm

Horsepower

20 hp

Hub Size

1 in

Length

13.00 in

Length [Metric]

33.0200 cm

Material

Copper Free Aluminum

Mounting

Surface Mount With 1 IN Hub

NEMA Rating

NEMA 3/3R/4/4X

Number Of Poles

4

Phase

3

Standard

UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11

Standards

UL1682UL 1686UL 50E File No. E145916E145917CSA C22.2 No. 182.1CSA File No. 065179NEMA FB-11RoHS Compliant

Sub Brand

Powertite

Temperature Rating

-40 to 225 °F

Terminal Type

Pressure Wired

Type

3-Phase Grounding Style 1

UNSPSC

39121406

UPC 11

78138115856

UPC 12

781381158565

Width

6.50 in

Width [Metric]

16.5100 cm

Wire Size

10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex)

Stock Status

NONSTOCK

Brand

Appleton™

Manufacturer

Appleton

Amperage Rating

30 A

Number of Wires

4

Voltage Rating

600/250 VAC//VDC
