Appleton™

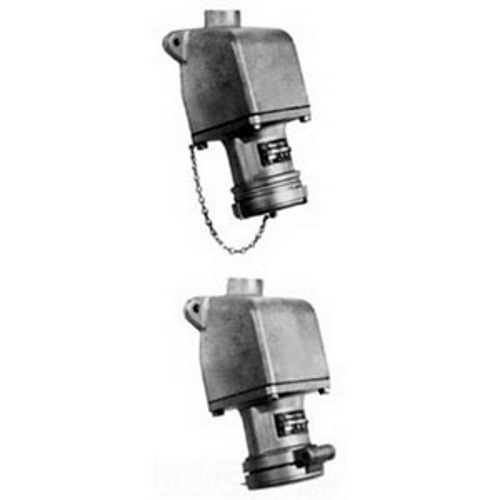

Appleton® Powertite® ADRE3034-75-RS Style 2 Shell/ Extra Pole Grounding Pin and Sleeve Receptacle With AEE Mounting Box, 600 VAC/250 VDC, 30 A, 4 Poles, 3 Wires
Custom_Product_Images_Illustration
Appleton™
Appleton® Powertite® ADRE3034-75-RS Style 2 Shell/ Extra Pole Grounding Pin and Sleeve Receptacle With AEE Mounting Box, 600 VAC/250 VDC, 30 A, 4 Poles, 3 Wires
SKU217261
MFGR #ADRE303475RS
Your Cost: $428.36/ea
The Powertite series uses the versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 Amp designs, these plugs and receptacles are built of triple coated, copperfree aluminum to withstand harsh weather, corrosive atmospheres and rough working conditions.
The Powertite series uses the versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 Amp designs, these plugs and receptacles are built of triple coated, copperfree aluminum to withstand harsh weather, corrosive atmospheres and rough working conditions.
Application For ACP3034BC Metallic And NMACP3034BC Nonmetallic Clamping Ring Plugs ARRA Compliant N Buy American Compliant N Catalog Number ADRE303475RS Connection Pressure Wire Terminal Cord Diameter 1/2 to 1-1/4 in Country of Origin MX Currency USD Dimensions 6.88 in H x 5 in W x 3.45 in D EU RoHS Indicator N Frequency Rating 50 to 400 Hz Gross Weight Per Pack 3.0000 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Height 5.00 in Height [Metric] 12.7000 cm Horsepower 20 hp Hub Size 3/4 in Length 7.50 in Length [Metric] 19.0500 cm Material Copper Free Aluminum Mounting Surface Mount With 3/4 IN Hub NEMA Rating NEMA 3/3R/4/4X Number Of Poles 4 Phase 3 Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 Standards UL1682UL 1686UL 50E File No. E145916E145917CSA C22.2 No. 182.1CSA File No. 065179NEMA FB-11 Sub Brand Powertite Temperature Rating -40 to 225 °F Terminal Type Pressure Wired Type 3-Phase Grounding Style 2 Reverse Service UNSPSC 39121406 UPC 11 78138171036 UPC 12 781381710367 Width 6.00 in Width [Metric] 15.2400 cm Wire Size 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 30 A Number of Wires 3 Voltage Rating 600/250 VAC//VDC For ACP3034BC Metallic And NMACP3034BC Nonmetallic Clamping Ring Plugs For reverse service (generator applications); Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 9/32 IN; Weatherproof spring door, brass with beryllium copper springs
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For ACP3034BC Metallic And NMACP3034BC Nonmetallic Clamping Ring Plugs |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ADRE303475RS |
| Connection | Pressure Wire Terminal |
| Cord Diameter | 1/2 to 1-1/4 in |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.88 in H x 5 in W x 3.45 in D |
| EU RoHS Indicator | N |
| Frequency Rating | 50 to 400 Hz |
| Gross Weight Per Pack | 3.0000 lb |
| Gross Weight per Pack Metric | 1.36 |
| Gross Weight UOM Metric | kg |
| Height | 5.00 in |
| Height [Metric] | 12.7000 cm |
| Horsepower | 20 hp |
| Hub Size | 3/4 in |
| Length | 7.50 in |
| Length [Metric] | 19.0500 cm |
| Material | Copper Free Aluminum |
| Mounting | Surface Mount With 3/4 IN Hub |
| NEMA Rating | NEMA 3/3R/4/4X |
| Number Of Poles | 4 |
| Phase | 3 |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| Standards | UL1682UL 1686UL 50E File No. E145916E145917CSA C22.2 No. 182.1CSA File No. 065179NEMA FB-11 |
| Sub Brand | Powertite |
| Temperature Rating | -40 to 225 °F |
| Terminal Type | Pressure Wired |
| Type | 3-Phase Grounding Style 2 Reverse Service |
| UNSPSC | 39121406 |
| UPC 11 | 78138171036 |
| UPC 12 | 781381710367 |
| Width | 6.00 in |
| Width [Metric] | 15.2400 cm |
| Wire Size | 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 30 A |
| Number of Wires | 3 |
| Voltage Rating | 600/250 VAC//VDC |
| For ACP3034BC Metallic And NMACP3034BC Nonmetallic Clamping Ring Plugs |
| For reverse service (generator applications); Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 9/32 IN; Weatherproof spring door, brass with beryllium copper springs |
