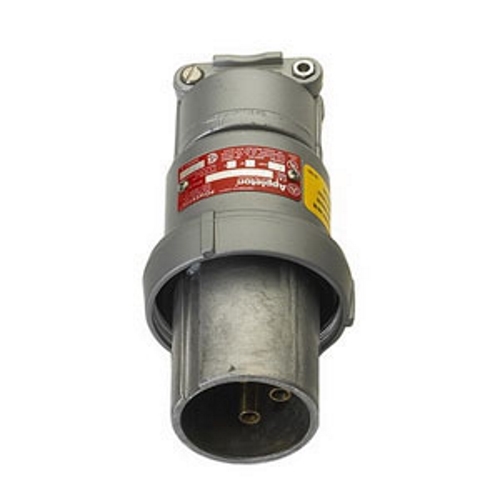

Appleton® Powertite® ACP3033BC Clamping Ring Pin & Sleeve Plug, 600 VAC/250 VDC, 30 A, 3 Poles, 3 Wires
Custom_Product_Images_Illustration
Appleton® Powertite® ACP3033BC Clamping Ring Pin & Sleeve Plug, 600 VAC/250 VDC, 30 A, 3 Poles, 3 Wires
SKU275829
MFGR #ACP3033BC
Your Cost: $343.12/ea
Appleton® Powertite® Pin & Sleeve Plug, Clamping Ring, 600 VAC/250 VDC, 30 A, 20 hp, 50/400 Hz, 3 Pole, 3 Wires, NEMA 3/3R/4/4X, -40 to 107 deg C, Pressure Wire Terminal, Aluminum, 3.13 in Dia x 6 in L
Appleton® Powertite® Pin & Sleeve Plug, Clamping Ring, 600 VAC/250 VDC, 30 A, 20 hp, 50/400 Hz, 3 Pole, 3 Wires, NEMA 3/3R/4/4X, -40 to 107 deg C, Pressure Wire Terminal, Aluminum, 3.13 in Dia x 6 in L
Application For ADR3033 Receptacle And ARC3033BC Connector Body ARRA Compliant N Buy American Compliant N Catalog Number ACP3033BC Connection Pressure Wire Terminal Country of Origin MX Currency USD Dimensions 6 in L x 3.13 in W Environmental Conditions Temperature Rating: -40 To 107 DEG C EU RoHS Indicator C Frequency Rating 50/400 Hz Gross Weight Per Pack 1.5100 lb Gross Weight per Pack Metric 0.68 Gross Weight UOM Metric kg Height 4.30 in Height [Metric] 10.9220 cm Length 11.90 in Length [Metric] 30.2260 cm Material Copper Free Aluminum NEMA Rating NEMA 3/3R/4/4X Number Of Poles 3 Phase 3 Series ACP Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 Standards UL 1682UL 1686UL 50E File No. E145916/E145917CSA C22.2 No. 182.1CSA File No. 065179RoHS Compliant Sub Brand Powertite Temperature Rating -40 to 225 °F Terminal Type Pressure Wire Type 3-Phase Grounding Style 1 UNSPSC 39121402 UPC 11 78138144041 UPC 12 781381440417 Width 5.00 in Width [Metric] 12.7000 cm Wire Size 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 30 A Color Metallic Number of Wires 3 Voltage Rating 250/600 VAC//VDC For ADR3033 Receptacle And ARC3033BC Connector Body Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 9/32 IN; Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle Shell grounding style 1 Designed to supply power to portable or fixed electrical equipment Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking Natural finish glass filled polyester insulating blocks 9/32 in dia wire recess Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle Locking screw and slot prevents plug cable collar from "backing off" Controlled length contacts ensure that ground makes first and breaks last for added safety Contacts exert constant pressure along entire contact surface and provide electrical continuity Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle Locking screw and slot prevents plug cable collar from backing off 0.281 in wire recess diameter Style 1 (Shell Only) grounding style 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) Wire Size 3 phase 0.5 to 1.25 in dia connector/plug cable 3/4 - 1 in hub
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For ADR3033 Receptacle And ARC3033BC Connector Body |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ACP3033BC |
| Connection | Pressure Wire Terminal |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6 in L x 3.13 in W |
| Environmental Conditions | Temperature Rating: -40 To 107 DEG C |
| EU RoHS Indicator | C |
| Frequency Rating | 50/400 Hz |
| Gross Weight Per Pack | 1.5100 lb |
| Gross Weight per Pack Metric | 0.68 |
| Gross Weight UOM Metric | kg |
| Height | 4.30 in |
| Height [Metric] | 10.9220 cm |
| Length | 11.90 in |
| Length [Metric] | 30.2260 cm |
| Material | Copper Free Aluminum |
| NEMA Rating | NEMA 3/3R/4/4X |
| Number Of Poles | 3 |
| Phase | 3 |
| Series | ACP |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| Standards | UL 1682UL 1686UL 50E File No. E145916/E145917CSA C22.2 No. 182.1CSA File No. 065179RoHS Compliant |
| Sub Brand | Powertite |
| Temperature Rating | -40 to 225 °F |
| Terminal Type | Pressure Wire |
| Type | 3-Phase Grounding Style 1 |
| UNSPSC | 39121402 |
| UPC 11 | 78138144041 |
| UPC 12 | 781381440417 |
| Width | 5.00 in |
| Width [Metric] | 12.7000 cm |
| Wire Size | 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 30 A |
| Color | Metallic |
| Number of Wires | 3 |
| Voltage Rating | 250/600 VAC//VDC |
| For ADR3033 Receptacle And ARC3033BC Connector Body |
| Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 9/32 IN; Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle |
| Shell grounding style 1 |
| Designed to supply power to portable or fixed electrical equipment |
| Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking |
| Natural finish glass filled polyester insulating blocks |
| 9/32 in dia wire recess |
| Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle |
| Locking screw and slot prevents plug cable collar from "backing off" |
| Controlled length contacts ensure that ground makes first and breaks last for added safety |
| Contacts exert constant pressure along entire contact surface and provide electrical continuity |
| Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing |
| Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle |
| Locking screw and slot prevents plug cable collar from backing off |
| 0.281 in wire recess diameter |
| Style 1 (Shell Only) grounding style |
| 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) Wire Size |
| 3 phase |
| 0.5 to 1.25 in dia connector/plug cable |
| 3/4 - 1 in hub |
