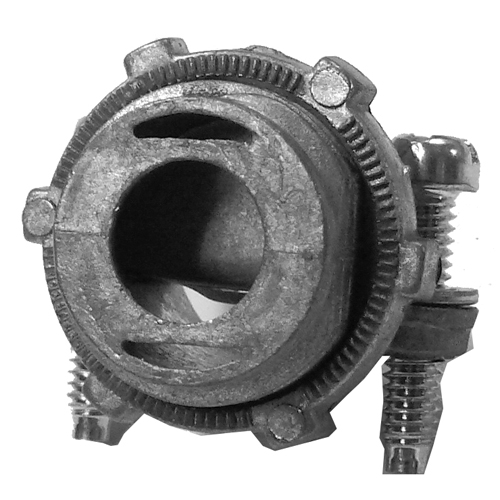

Appleton® NEER™ C-510 2-Screw Cable Connector With Locknut, Combination Head Screw, 3/8 in Knockout, 14/2 to 10/2 AWG Conductor, Die Cast Zinc
Custom_Product_Images_Illustration
Appleton® NEER™ C-510 2-Screw Cable Connector With Locknut, Combination Head Screw, 3/8 in Knockout, 14/2 to 10/2 AWG Conductor, Die Cast Zinc
SKU16689
MFGR #C-510
Your Cost: $1.90/ea
Appleton® NEER™ Cable Connector, 2-Screw, 3/8 in Knockout, 14/2 to 10/2 AWG Conductor, For Use With: Metal Clad Cable, Die Cast Zinc, 0.87 in Dia x 0.91 in W
Appleton® NEER™ Cable Connector, 2-Screw, 3/8 in Knockout, 14/2 to 10/2 AWG Conductor, For Use With: Metal Clad Cable, Die Cast Zinc, 0.87 in Dia x 0.91 in W
ARRA Compliant N Buy American Compliant N Catalog Number C-510 Connection Male NPS Thread Country of Origin IN Currency USD Dimensions 0.87 in Dia x 0.91 in W EU RoHS Indicator Y Gross Weight Per Pack 0.0500 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Height 0.06 in Height [Metric] 1.5240 mm Length 4.00 in Length [Metric] 10.1600 cm Size 0.38 IN in Standard UL 514B, CSA C22.2, NEMA FB-1, Fed Spec W-F-406D Standards UL 514B Listed, CSA C22.2 No 18, NEMA FB-1, Fed Spec W-F-406D, RoHS Complaint Sub Brand NEER Suitable For Use With Metal Clad Cable Type 2-Screw UNSPSC 39121311 UPC 11 68785510510 UPC 12 687855105106 Width 5.00 in Width [Metric] 12.7000 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Conductor Size 14/2 to 10/2 AWG Knockout Size 3/8 in Material Die Cast Zinc 0.87 IN Dia X 0.91 IN Length, For 14-2 to 10-2 AWG Armored Cable, 14-2 to 10-3 AWG Metal Clad Cable, With Locknut, Combination Head Screw To terminate regular wall steel or aluminum flexible conduit to a 1/2 in knockout in a dry box or enclosure End stopped Male hub threads NPS For 14-2 to 10-2 AWG Armored Cable, 14-2 to 10-3 AWG Metal Clad Cable
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | C-510 |
| Connection | Male NPS Thread |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 0.87 in Dia x 0.91 in W |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0500 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Height | 0.06 in |
| Height [Metric] | 1.5240 mm |
| Length | 4.00 in |
| Length [Metric] | 10.1600 cm |
| Size | 0.38 IN in |
| Standard | UL 514B, CSA C22.2, NEMA FB-1, Fed Spec W-F-406D |
| Standards | UL 514B Listed, CSA C22.2 No 18, NEMA FB-1, Fed Spec W-F-406D, RoHS Complaint |
| Sub Brand | NEER |
| Suitable For Use With | Metal Clad Cable |
| Type | 2-Screw |
| UNSPSC | 39121311 |
| UPC 11 | 68785510510 |
| UPC 12 | 687855105106 |
| Width | 5.00 in |
| Width [Metric] | 12.7000 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Conductor Size | 14/2 to 10/2 AWG |
| Knockout Size | 3/8 in |
| Material | Die Cast Zinc |
| 0.87 IN Dia X 0.91 IN Length, For 14-2 to 10-2 AWG Armored Cable, 14-2 to 10-3 AWG Metal Clad Cable, With Locknut, Combination Head Screw |
| To terminate regular wall steel or aluminum flexible conduit to a 1/2 in knockout in a dry box or enclosure |
| End stopped |
| Male hub threads NPS |
| For 14-2 to 10-2 AWG Armored Cable, 14-2 to 10-3 AWG Metal Clad Cable |
