Appleton™

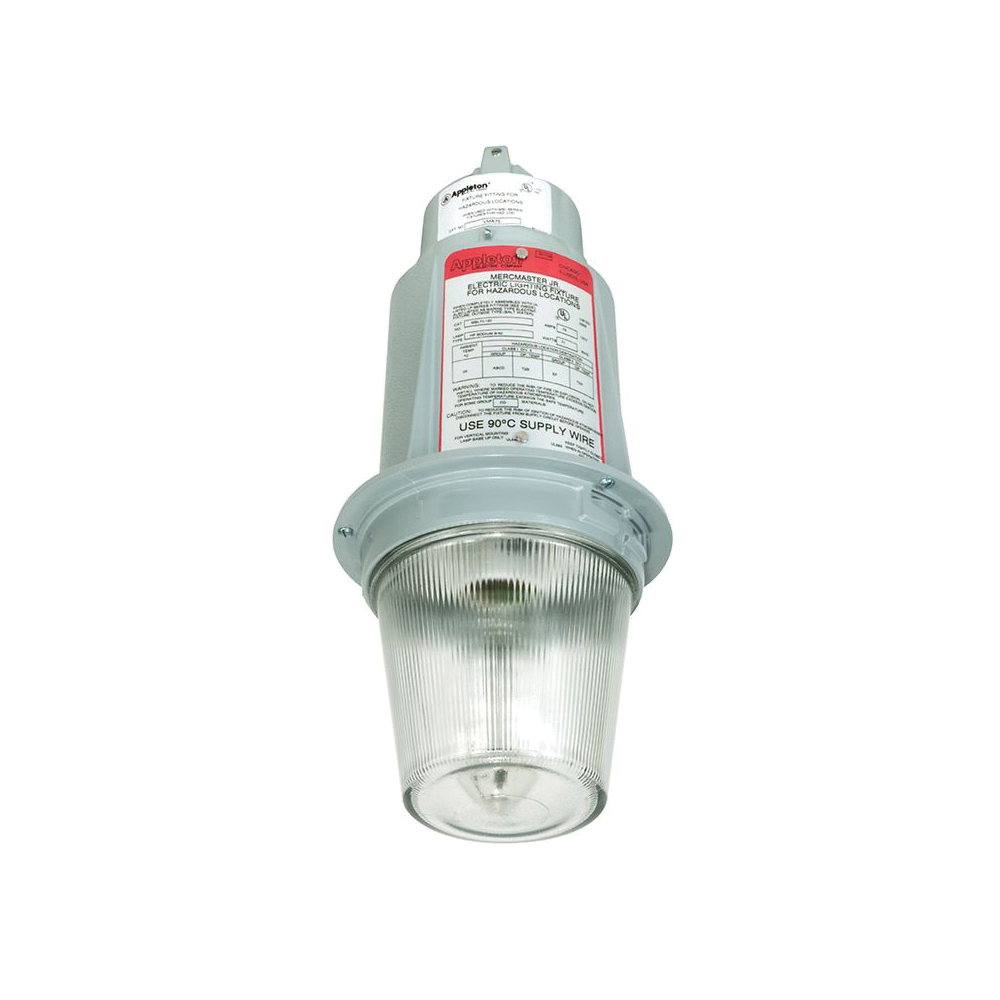

Appleton® MS70150-120 Mercmaster Jr MS Series HID Lighting Fixture With Globe and Less Guard, S62 High Pressure Sodium Lamp
Appleton™
Appleton® MS70150-120 Mercmaster Jr MS Series HID Lighting Fixture With Globe and Less Guard, S62 High Pressure Sodium Lamp
SKU559647
MFGR #MS70150-120
Your Cost: $983.10/ea
Appleton® Mercmaster Jr HID Lighting Fixture, Series: MS Series, 120 VAC, S62 High Pressure Sodium Lamp, 70 W Lamp, Medium Lamp Base, HPF Ballast, Prismatic Glass Lens, Stanchion Mount, Aluminum Housing, Epoxy Powder Coated Housing
Appleton® Mercmaster Jr HID Lighting Fixture, Series: MS Series, 120 VAC, S62 High Pressure Sodium Lamp, 70 W Lamp, Medium Lamp Base, HPF Ballast, Prismatic Glass Lens, Stanchion Mount, Aluminum Housing, Epoxy Powder Coated Housing
Amperage Rating 0.7 A Starting, 0.73 A Operating ARRA Compliant N Ballast Type ANSI S62/Intregral/HPF Buy American Compliant N Catalog Number MS70150-120 Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 1 lb Housing Material Copper Free Aluminum Lamp Base Type Medium Lamp Wattage 70 W Lens Type Prismatic Glass Mounting Type 25 deg Stanchion Series MS Series Standards RoHS CompliantUL 1598/1598A/844 File No. E10444Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F UNSPSC 39111524 UPC 11 78138146569 UPC 12 78138146569 Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Fixture Wattage 82 W Housing Finish Epoxy Powder Coated Lamp Type High Pressure Sodium Voltage Rating 120 VAC Wireless design, threading of fixture unit onto mounting hood makes electrical connection, only wiring required is attaching two wires to connection block in mounting hood Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing Unitized construction reduces installation and maintenance costs Ballast has standard non-PCB biodegradable capacitors Medium base socket is furnished with 200 deg C leads, prewired to the ballast Porcelain socket assures trouble-free operation in high ambient installations Prismatic glass globe or glass refractor is standard and threads directly into fixture housing Eliminates glare and provides uniform light distribution Fiberglass reinforced polyester reflector for exceptionally severe corrosive atmospheres Vented for cooler, dirt-free operation, increased lumen output Zinc electroplated steel guard Class I, division 2, Groups A, B, C, D class II, division 1 and 2, Groups E, F, G class II 1-1/2 in threaded one hub
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 0.7 A Starting, 0.73 A Operating |
| ARRA Compliant | N |
| Ballast Type | ANSI S62/Intregral/HPF |
| Buy American Compliant | N |
| Catalog Number | MS70150-120 |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1 lb |
| Housing Material | Copper Free Aluminum |
| Lamp Base Type | Medium |
| Lamp Wattage | 70 W |
| Lens Type | Prismatic Glass |
| Mounting Type | 25 deg Stanchion |
| Series | MS Series |
| Standards | RoHS CompliantUL 1598/1598A/844 File No. E10444Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F |
| UNSPSC | 39111524 |
| UPC 11 | 78138146569 |
| UPC 12 | 78138146569 |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Fixture Wattage | 82 W |
| Housing Finish | Epoxy Powder Coated |
| Lamp Type | High Pressure Sodium |
| Voltage Rating | 120 VAC |
| Wireless design, threading of fixture unit onto mounting hood makes electrical connection, only wiring required is attaching two wires to connection block in mounting hood |
| Safe, easy servicing without disconnecting any wiring, wireless fixture unit easily threads off mounting hood for convenient servicing |
| Unitized construction reduces installation and maintenance costs |
| Ballast has standard non-PCB biodegradable capacitors |
| Medium base socket is furnished with 200 deg C leads, prewired to the ballast |
| Porcelain socket assures trouble-free operation in high ambient installations |
| Prismatic glass globe or glass refractor is standard and threads directly into fixture housing |
| Eliminates glare and provides uniform light distribution |
| Fiberglass reinforced polyester reflector for exceptionally severe corrosive atmospheres |
| Vented for cooler, dirt-free operation, increased lumen output |
| Zinc electroplated steel guard |
| Class I, division 2, Groups A, B, C, D class II, division 1 and 2, Groups E, F, G class II |
| 1-1/2 in threaded one hub |
