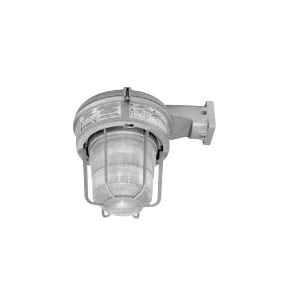

Appleton® MLWL102G1GMT Mercmaster III ML Series Low Profile HID Lighting Fixture With Globe and Cast Guard, High Pressure Sodium Lamp
Appleton® MLWL102G1GMT Mercmaster III ML Series Low Profile HID Lighting Fixture With Globe and Cast Guard, High Pressure Sodium Lamp
SKU736641
MFGR #MLWL102G1GMT
Your Cost: $1,475.58/ea
The Mercmaster III low profile luminaires feature a compact, lightweight, low profile design that is suited for low mounting heights in conjunction with lower wattage fixtures. These enclosed and gasketed fixtures are suitable for hazardous and adverse locations where flammable gases and vapors, combustible dusts, severe weather conditions or excessive moisture or dirt are present.
The Mercmaster III low profile luminaires feature a compact, lightweight, low profile design that is suited for low mounting heights in conjunction with lower wattage fixtures. These enclosed and gasketed fixtures are suitable for hazardous and adverse locations where flammable gases and vapors, combustible dusts, severe weather conditions or excessive moisture or dirt are present.
Amperage Rating 1.3/0.76/0.66/0.6 A Starting, 1.15/0.67/0.6/0.52 A Operating ARRA Compliant N Ballast Type HX-HPF Buy American Compliant N Catalog Number MLWL102G1GMT Country of Origin MX Currency USD Dimensions 17.01 in W Enclosure Type NEMA 4X/IP66 EU RoHS Indicator C Gross Weight Per Pack 22.0000 lb Gross Weight per Pack Metric 9.98 Gross Weight UOM Metric kg Height 13.60 in Height [Metric] 34.5440 cm Housing Material Cast Copper-Free Aluminum Lamp Base Type Medium Lamp Wattage 100 W Length 24.00 in Length [Metric] 60.9600 cm Lens Type Prismatic Glass Lumens 9500 Lumens Mounting Type Wall Series ML Series Type Enclosed Gasketed Low Profile UNSPSC 39111524 UPC 11 78138165624 UPC 12 781381656245 Width 16.00 in Width [Metric] 40.6400 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Fixture Wattage 130 W Housing Finish Baked Gray Epoxy Clad Lamp Type High Pressure Sodium Voltage Rating 120 to 277 VAC Compact lightweight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures Modular design allows scores of fixture component combinations to meet installation and lighting needs, uses same mounting hoods and optical accessories as Mercmaster III A choice of heat-resistant prismatic glass refractors (NEMA I, III or V) or heat-resistant globes which thread directly into ballast housing Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres Hinge has high lip for added safety during installation and servicing, body gaskets and globe gaskets are high temperature silicone rubber Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing Swing away design of captive bolt and nut simplifies servicing All Mercmaster III mounting hoods have provision for easy field installation of fuses in fixtures The Ex nR factory sealed Mercmaster III prevents vapors and gases from entering the globe chamber, there are no seals or putty required which will reduce installation time and installation errors Cast copperfree (4/10 of 1% max) aluminum mounting hoods, bodies and guard 60 Hz frequency 5 hubs, four close up plugs 3/4 in NTP hub 40 to 65 deg C ambient temperature, 90 deg C supply wire temperature All hardware and catch assemblies stainless steel, body gaskets and globe gaskets are high temperature silicone rubber Fiberglass reinforced white polyester reflectors Heat-resistant prismatic glass globes and refractors High power factor (min PF 90%) Baked gray epoxy clad finish, electrostatically applied for complete uniform protection mounting hoods, bodies and guards
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 1.3/0.76/0.66/0.6 A Starting, 1.15/0.67/0.6/0.52 A Operating |
| ARRA Compliant | N |
| Ballast Type | HX-HPF |
| Buy American Compliant | N |
| Catalog Number | MLWL102G1GMT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 17.01 in W |
| Enclosure Type | NEMA 4X/IP66 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 22.0000 lb |
| Gross Weight per Pack Metric | 9.98 |
| Gross Weight UOM Metric | kg |
| Height | 13.60 in |
| Height [Metric] | 34.5440 cm |
| Housing Material | Cast Copper-Free Aluminum |
| Lamp Base Type | Medium |
| Lamp Wattage | 100 W |
| Length | 24.00 in |
| Length [Metric] | 60.9600 cm |
| Lens Type | Prismatic Glass |
| Lumens | 9500 Lumens |
| Mounting Type | Wall |
| Series | ML Series |
| Type | Enclosed Gasketed Low Profile |
| UNSPSC | 39111524 |
| UPC 11 | 78138165624 |
| UPC 12 | 781381656245 |
| Width | 16.00 in |
| Width [Metric] | 40.6400 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Fixture Wattage | 130 W |
| Housing Finish | Baked Gray Epoxy Clad |
| Lamp Type | High Pressure Sodium |
| Voltage Rating | 120 to 277 VAC |
| Compact lightweight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures |
| Modular design allows scores of fixture component combinations to meet installation and lighting needs, uses same mounting hoods and optical accessories as Mercmaster III |
| A choice of heat-resistant prismatic glass refractors (NEMA I, III or V) or heat-resistant globes which thread directly into ballast housing |
| Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres |
| Hinge has high lip for added safety during installation and servicing, body gaskets and globe gaskets are high temperature silicone rubber |
| Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing |
| Swing away design of captive bolt and nut simplifies servicing |
| All Mercmaster III mounting hoods have provision for easy field installation of fuses in fixtures |
| The Ex nR factory sealed Mercmaster III prevents vapors and gases from entering the globe chamber, there are no seals or putty required which will reduce installation time and installation errors |
| Cast copperfree (4/10 of 1% max) aluminum mounting hoods, bodies and guard |
| 60 Hz frequency |
| 5 hubs, four close up plugs |
| 3/4 in NTP hub |
| 40 to 65 deg C ambient temperature, 90 deg C supply wire temperature |
| All hardware and catch assemblies stainless steel, body gaskets and globe gaskets are high temperature silicone rubber |
| Fiberglass reinforced white polyester reflectors |
| Heat-resistant prismatic glass globes and refractors |
| High power factor (min PF 90%) |
| Baked gray epoxy clad finish, electrostatically applied for complete uniform protection mounting hoods, bodies and guards |
