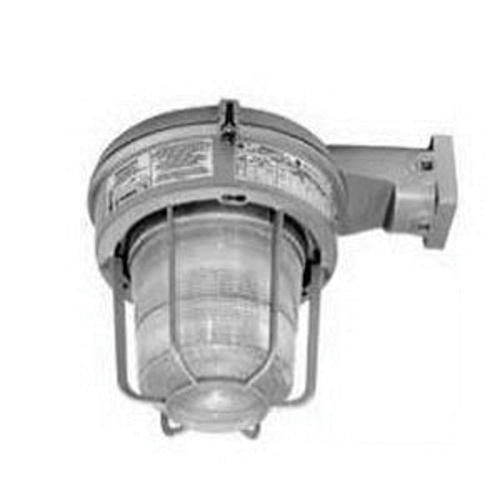

Appleton® MLWF322G2NBU Mercmaster III ML Series Enclosed Gasketed Low Profile Compact Fluorescent Fixture With VPGL2HR Globe
Appleton® MLWF322G2NBU Mercmaster III ML Series Enclosed Gasketed Low Profile Compact Fluorescent Fixture With VPGL2HR Globe
SKU312660
MFGR #MLWF322G2NBU
Your Cost: $1,378.01/ea
Light fixtures that work flawlessly and stand up to harsh conditions go unnoticed everyday, which is exactly the point. Appleton luminaires are designed to withstand the harshest conditions and operate across your facility without incident. A century of innovation and testing makes sure of that. From area to task, flood to emergency, we have a light fixture perfectly suited for every task and use in environments that are hazardous, adverse or ordinary. After all, our vast collection of fixtures is unsurpassed in the industry. Appleton has expanded the boundaries of technology, efficiency and performance to ensure your lights stays on, because failure is not an option.
Light fixtures that work flawlessly and stand up to harsh conditions go unnoticed everyday, which is exactly the point. Appleton luminaires are designed to withstand the harshest conditions and operate across your facility without incident. A century of innovation and testing makes sure of that. From area to task, flood to emergency, we have a light fixture perfectly suited for every task and use in environments that are hazardous, adverse or ordinary. After all, our vast collection of fixtures is unsurpassed in the industry. Appleton has expanded the boundaries of technology, efficiency and performance to ensure your lights stays on, because failure is not an option.
Amperage Rating 0.3 A Starting, 0.13 A Operating ARRA Compliant N Average Life 10000 hr Ballast Type Electronic Buy American Compliant N Catalog Number MLWF322G2NBU Color Rendering Index [CRI] 82 Country of Origin MX Currency USD Dimensions 17 in L Enclosure Type NEMA 4X/IP66 EU RoHS Indicator N Gross Weight Per Pack 17.2000 lb Gross Weight per Pack Metric 7.80 Gross Weight UOM Metric kg Height 13.50 in Height [Metric] 34.2900 cm Housing Material Die Cast Copper-Free Aluminum Lamp Base Type GX24q-3 Lamp Wattage 32 W Length 24.20 in Length [Metric] 61.4680 cm Lens Type Engineered Thermoplastic Lumens 2400 Lumens Mounting Type Wall Number Of Lamps 1 Series ML Series Type Enclosed Gasketed Low Profile UNSPSC 39111501 UPC 11 78138187852 UPC 12 781381878524 Width 16.40 in Width [Metric] 41.6560 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Fixture Wattage 36 W Housing Finish Epoxy Powder Coated Lamp Type PL-T CFL Voltage Rating 120 to 277 VAC, 125 VDC Energy-efficient, compact fluorescent light sources possess superior lamp efficiency Fluorescent provides long lamp life, thereby reducing relamping costs Instant on nature of this electronically ballasted fluorescent eliminates the possibility of an extended blackout due to a momentary power dip High efficacies (up to 75 lumens per watt) offer a desirable low-glare/instant on alternative to low wattage HID sources High output under widely varying conditions, greater than 90% of rated lumens in ambient temperatures from 23 to 130 deg F Excellent color rendering (82 CRI) makes it the best choice for food processing and inspection facilities Electronic ballast permits low operating costs with power factor greater than 99%, also allows flicker-free starting Cold weather starting to a minimum temperature of -18 deg C (0 deg F) Compact lightweight low profile design creates ease of installation and maintenance Modular design, with multiple mounting hoods, optics and reflectors, permits a wide array of fixtures to meet installation and lighting needs Body gaskets and optic gaskets are high temperature silicone O-rings that provide superior sealing Mounting hoods have a high hinge for added safety during installation and servicing Body gaskets and optic gaskets are high temperature silicone O-rings that provide superior sealing Mounting hoods have a high hinge for added safety during installation and servicing Choice of heat-resistant prismatic glass refractor (NEMA I, III or V), heat-resistant clear globes, color globes or polymeric refractors (NEMA II, III, IV or V) (polymeric refractors are not listed for zone 2) 40 deg C ambient temperature, 75 deg C supply wire temperature Fixture housing, mounting hoods and guards are diecast, copperfree (4/10 of 1% max) aluminum with epoxy finish for corrosion resistance Exposed hardware such as stainless steel latch assemblies have stainless steel bolt and captive nut, reflectors and guards attach with stainless steel screws threading into stainless steel inserts Epoxy powder coat finish electrostatically applied for complete, uniform surface protection No guard option
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Amperage Rating | 0.3 A Starting, 0.13 A Operating |
ARRA Compliant | N |
Average Life | 10000 hr |
Ballast Type | Electronic |
Buy American Compliant | N |
Catalog Number | MLWF322G2NBU |
Color Rendering Index [CRI] | 82 |
Country of Origin | MX |
Currency | USD |
Dimensions | 17 in L |
Enclosure Type | NEMA 4X/IP66 |
EU RoHS Indicator | N |
Gross Weight Per Pack | 17.2000 lb |
Gross Weight per Pack Metric | 7.80 |
Gross Weight UOM Metric | kg |
Height | 13.50 in |
Height [Metric] | 34.2900 cm |
Housing Material | Die Cast Copper-Free Aluminum |
Lamp Base Type | GX24q-3 |
Lamp Wattage | 32 W |
Length | 24.20 in |
Length [Metric] | 61.4680 cm |
Lens Type | Engineered Thermoplastic |
Lumens | 2400 Lumens |
Mounting Type | Wall |
Number Of Lamps | 1 |
Series | ML Series |
Type | Enclosed Gasketed Low Profile |
UNSPSC | 39111501 |
UPC 11 | 78138187852 |
UPC 12 | 781381878524 |
Width | 16.40 in |
Width [Metric] | 41.6560 cm |
Stock Status | NONSTOCK |
Brand | Appleton™ |
Manufacturer | Appleton |
Fixture Wattage | 36 W |
Housing Finish | Epoxy Powder Coated |
Lamp Type | PL-T CFL |
Voltage Rating | 120 to 277 VAC, 125 VDC |
Energy-efficient, compact fluorescent light sources possess superior lamp efficiency |
Fluorescent provides long lamp life, thereby reducing relamping costs |
Instant on nature of this electronically ballasted fluorescent eliminates the possibility of an extended blackout due to a momentary power dip |
High efficacies (up to 75 lumens per watt) offer a desirable low-glare/instant on alternative to low wattage HID sources |
High output under widely varying conditions, greater than 90% of rated lumens in ambient temperatures from 23 to 130 deg F |
Excellent color rendering (82 CRI) makes it the best choice for food processing and inspection facilities |
Electronic ballast permits low operating costs with power factor greater than 99%, also allows flicker-free starting |
Cold weather starting to a minimum temperature of -18 deg C (0 deg F) |
Compact lightweight low profile design creates ease of installation and maintenance |
Modular design, with multiple mounting hoods, optics and reflectors, permits a wide array of fixtures to meet installation and lighting needs |
Body gaskets and optic gaskets are high temperature silicone O-rings that provide superior sealing |
Mounting hoods have a high hinge for added safety during installation and servicing |
Body gaskets and optic gaskets are high temperature silicone O-rings that provide superior sealing |
Mounting hoods have a high hinge for added safety during installation and servicing |
Choice of heat-resistant prismatic glass refractor (NEMA I, III or V), heat-resistant clear globes, color globes or polymeric refractors (NEMA II, III, IV or V) (polymeric refractors are not listed for zone 2) |
40 deg C ambient temperature, 75 deg C supply wire temperature |
Fixture housing, mounting hoods and guards are diecast, copperfree (4/10 of 1% max) aluminum with epoxy finish for corrosion resistance |
Exposed hardware such as stainless steel latch assemblies have stainless steel bolt and captive nut, reflectors and guards attach with stainless steel screws threading into stainless steel inserts |
Epoxy powder coat finish electrostatically applied for complete, uniform surface protection |
No guard option |
