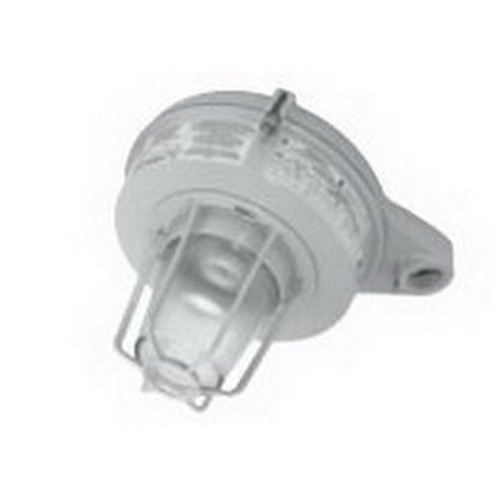

Appleton® MLSL105G1NMT Mercmaster III ML Series Low Profile HID Lighting Fixture With Globe, High Pressure Sodium Lamp, 130 W Fixture
Custom_Product_Images_Illustration
Appleton® MLSL105G1NMT Mercmaster III ML Series Low Profile HID Lighting Fixture With Globe, High Pressure Sodium Lamp, 130 W Fixture
SKU410469
MFGR #MLSL105G1NMT
Your Cost: $1,423.23/ea
The Mercmaster III low profile luminaires feature a compact, lightweight, low profile design that is suited for low mounting heights in conjunction with lower wattage fixtures. These enclosed and gasketed fixtures are suitable for hazardous and adverse locations where flammable gases and vapors, combustible dusts, severe weather conditions or excessive moisture or dirt are present.
The Mercmaster III low profile luminaires feature a compact, lightweight, low profile design that is suited for low mounting heights in conjunction with lower wattage fixtures. These enclosed and gasketed fixtures are suitable for hazardous and adverse locations where flammable gases and vapors, combustible dusts, severe weather conditions or excessive moisture or dirt are present.
Amperage Rating 1.3/0.76/0.66/0.6 A Starting, 1.15/0.67/0.6/0.52 A Operating A ARRA Compliant N Ballast Type High Reactance High Power Factor Autotransformer (HX-HPF) Buy American Compliant N Catalog Number MLSL105G1NMT Country of Origin MX Currency USD Dimensions 15.28 in W Enclosure Type NEMA 4X/IP66 EU RoHS Indicator C Gross Weight Per Pack 24.0000 lb Gross Weight per Pack Metric 10.89 Gross Weight UOM Metric kg Height 13.80 in Height [Metric] 35.0520 cm Housing Material Cast Copper Free Aluminum Lamp Base Medium Lamp Wattage 100 W Length 24.40 in Length [Metric] 61.9760 cm Lens Type Prismatic Glass Lumens 9500 Lumens Material Stainless Steel Hardware And Latch Assembly, Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood And Body Mounting Type 25 deg Stanchion Number Of Lamps 1 Series ML Series Standard Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nR IIC (Z2); Class I, Zone 2, Ex nR IIC (Z); Class I, Zone 2, AEx nR IIC (ZB); Class II, Division 1 And 2, Groups E, F, G; Class III; UL 1598A, 60079-15, 844; CSA LR25428 Sub Brand Mercmaster III Type Enclosed Gasketed Low Profile UNSPSC 39111524 UPC 11 78138165163 UPC 12 781381651639 Width 16.80 in Width [Metric] 42.6720 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Fixture Wattage 130 W Housing Finish Baked Gray Epoxy Clad Powder Coated Lamp Type High Pressure Sodium Voltage Rating 120 to 277 VAC Enclosed And Gasketed Fixtures Suitable For Use In Marine And Wet Locations, And In A Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Or Combustible Dusts Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, R Use In Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust Or Corrosive Atmospheres Are Present, Oil Refineries, Pulp And Paper Mills, Chemical Plants, Food-Processing Areas, Inspection Facilities, Foundries, Power Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, And Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations; Compact light weight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures; Modular design allows scores of fixture component combinations to meet installation and lighting needs; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction ensures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; Fixtures are for use in Class I, Zone 2 hazardous locations Compact lightweight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures Modular design allows scores of fixture component combinations to meet installation and lighting needs A choice of heat-resistant prismatic glass refractors (NEMA I, III or V) or heat-resistant globes which thread directly into ballast housing Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres Hinge has high lip for added safety during installation and servicing Hinge and bolt construction ensures 360 deg compression at all points on ballast housing gasket for positive sealing Swing away design of captive bolt and nut simplifies servicing All Mercmaster™ III mounting hoods have provision for easy field installation of fuses in fixtures Fixtures are for use in Class I, Zone 2 hazardous locations No seals or putty required, reducing installation time and errors 1.3 A at 120 VAC, 0.76 A at 208 VAC, 0.66 A at 240 VAC, 0.6 A at 277 VAC starting, 1.15 A at 120 VAC, 0.67 A at 208 VAC, 0.6 A at 240 VAC, 0.52 A at 277 VAC operating 1 hub 1-1/2 in NPT stanchion hub 40 to 65 deg C ambient temperature, 90 deg C supply wire temperature All hardware and catch assemblies stainless steel, body gaskets and globe gaskets are high temperature silicone rubber Fiberglass reinforced white polyester reflectors Heat-resistant prismatic glass globes and refractors High power factor (min PF 90%) Baked gray epoxy clad finish, electrostatically applied for complete uniform protection mounting hoods, bodies and guards 1 ballast quantity
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 1.3/0.76/0.66/0.6 A Starting, 1.15/0.67/0.6/0.52 A Operating A |
| ARRA Compliant | N |
| Ballast Type | High Reactance High Power Factor Autotransformer (HX-HPF) |
| Buy American Compliant | N |
| Catalog Number | MLSL105G1NMT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 15.28 in W |
| Enclosure Type | NEMA 4X/IP66 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 24.0000 lb |
| Gross Weight per Pack Metric | 10.89 |
| Gross Weight UOM Metric | kg |
| Height | 13.80 in |
| Height [Metric] | 35.0520 cm |
| Housing Material | Cast Copper Free Aluminum |
| Lamp Base | Medium |
| Lamp Wattage | 100 W |
| Length | 24.40 in |
| Length [Metric] | 61.9760 cm |
| Lens Type | Prismatic Glass |
| Lumens | 9500 Lumens |
| Material | Stainless Steel Hardware And Latch Assembly, Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood And Body |
| Mounting Type | 25 deg Stanchion |
| Number Of Lamps | 1 |
| Series | ML Series |
| Standard | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nR IIC (Z2); Class I, Zone 2, Ex nR IIC (Z); Class I, Zone 2, AEx nR IIC (ZB); Class II, Division 1 And 2, Groups E, F, G; Class III; UL 1598A, 60079-15, 844; CSA LR25428 |
| Sub Brand | Mercmaster III |
| Type | Enclosed Gasketed Low Profile |
| UNSPSC | 39111524 |
| UPC 11 | 78138165163 |
| UPC 12 | 781381651639 |
| Width | 16.80 in |
| Width [Metric] | 42.6720 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Fixture Wattage | 130 W |
| Housing Finish | Baked Gray Epoxy Clad Powder Coated |
| Lamp Type | High Pressure Sodium |
| Voltage Rating | 120 to 277 VAC |
| Enclosed And Gasketed Fixtures Suitable For Use In Marine And Wet Locations, And In A Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Or Combustible Dusts Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, R Use In Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust Or Corrosive Atmospheres Are Present, Oil Refineries, Pulp And Paper Mills, Chemical Plants, Food-Processing Areas, Inspection Facilities, Foundries, Power Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, And Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem |
| The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations; Compact light weight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures; Modular design allows scores of fixture component combinations to meet installation and lighting needs; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction ensures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; Fixtures are for use in Class I, Zone 2 hazardous locations |
| Compact lightweight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures |
| Modular design allows scores of fixture component combinations to meet installation and lighting needs |
| A choice of heat-resistant prismatic glass refractors (NEMA I, III or V) or heat-resistant globes which thread directly into ballast housing |
| Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres |
| Hinge has high lip for added safety during installation and servicing |
| Hinge and bolt construction ensures 360 deg compression at all points on ballast housing gasket for positive sealing |
| Swing away design of captive bolt and nut simplifies servicing |
| All Mercmaster™ III mounting hoods have provision for easy field installation of fuses in fixtures |
| Fixtures are for use in Class I, Zone 2 hazardous locations |
| No seals or putty required, reducing installation time and errors |
| 1.3 A at 120 VAC, 0.76 A at 208 VAC, 0.66 A at 240 VAC, 0.6 A at 277 VAC starting, 1.15 A at 120 VAC, 0.67 A at 208 VAC, 0.6 A at 240 VAC, 0.52 A at 277 VAC operating |
| 1 hub |
| 1-1/2 in NPT stanchion hub |
| 40 to 65 deg C ambient temperature, 90 deg C supply wire temperature |
| All hardware and catch assemblies stainless steel, body gaskets and globe gaskets are high temperature silicone rubber |
| Fiberglass reinforced white polyester reflectors |
| Heat-resistant prismatic glass globes and refractors |
| High power factor (min PF 90%) |
| Baked gray epoxy clad finish, electrostatically applied for complete uniform protection mounting hoods, bodies and guards |
| 1 ballast quantity |
