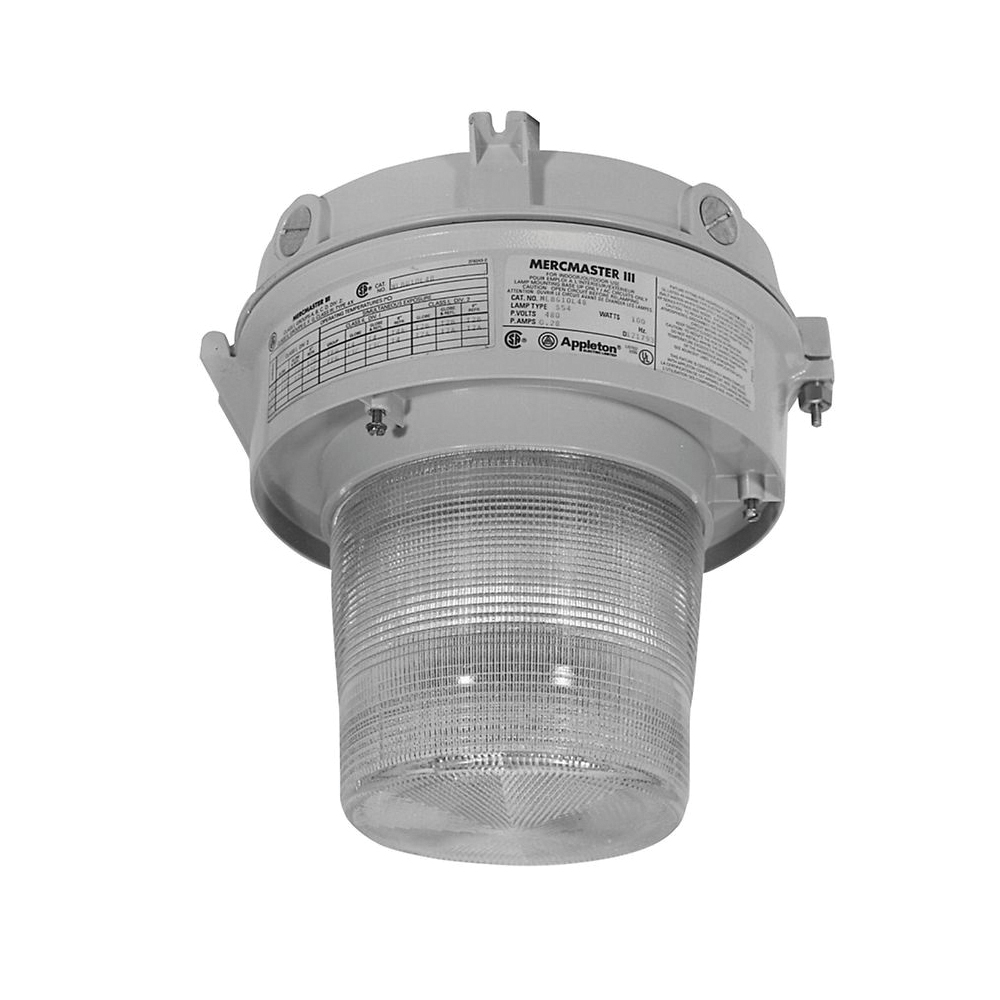

Appleton® MLDF642J5NBU 64W CF CONE MT TYPE 5
Explosion Proof Outdoor Lighting
PDW~929826
MFG #: MLDF642J5NBU
Appleton™
1691.53000
/ ea
Light fixtures that work flawlessly and stand up to harsh conditions go unnoticed everyday, which is exactly the point. Appleton luminaires are designed to withstand the harshest conditions and operate across your facility without incident. A century of innovation and testing makes sure of that. From area to task, flood to emergency, we have a light fixture perfectly suited for every task and use in environments that are hazardous, adverse or ordinary. After all, our vast collection of fixtures is unsurpassed in the industry. Appleton has expanded the boundaries of technology, efficiency and performance to ensure your lights stays on, because failure is not an option.
- Features
Energy-efficient, compact fluorescent light sources possess superior lamp efficiency |
Fluorescent provides long lamp life, thereby reducing relamping costs |
Instant on nature of this electronically ballasted fluorescent eliminates the possibility of an extended blackout due to a momentary power dip |
High efficacies (up to 75 lumens per watt) offer a desirable low-glare/instant on alternative to low wattage HID sources |
High output under widely varying conditions, greater than 90% of rated lumens in ambient temperatures from 23 to 130 deg F |
Excellent color rendering (82 CRI) makes it the best choice for food processing and inspection facilities |
Electronic ballast permits low operating costs with power factor greater than 99%, also allows flicker-free starting |
Cold weather starting to a minimum temperature of -18 deg C (0 deg F) |
Compact lightweight low profile design creates ease of installation and maintenance |
Modular design, with multiple mounting hoods, optics and reflectors, permits a wide array of fixtures to meet installation and lighting needs |
Body gaskets and optic gaskets are high temperature silicone O-rings that provide superior sealing |
Mounting hoods have a high hinge for added safety during installation and servicing |
Body gaskets and optic gaskets are high temperature silicone O-rings that provide superior sealing |
Mounting hoods have a high hinge for added safety during installation and servicing |
Choice of heat-resistant prismatic glass refractor (NEMA I, III or V), heat-resistant clear globes, color globes or polymeric refractors (NEMA II, III, IV or V) (polymeric refractors are not listed for zone 2) |
40 deg C ambient temperature, 75 deg C supply wire temperature |
Fixture housing, mounting hoods and guards are diecast, copperfree (4/10 of 1% max) aluminum with epoxy finish for corrosion resistance |
Exposed hardware such as stainless steel latch assemblies have stainless steel bolt and captive nut, reflectors and guards attach with stainless steel screws threading into stainless steel inserts |
Epoxy powder coat finish electrostatically applied for complete, uniform surface protection |
No guard option |
