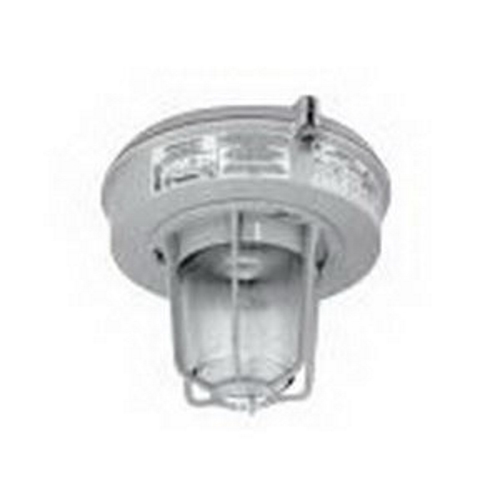

Appleton® MLAL152G1NMT Mercmaster III ML Series Enclosed Gasketed Low Profile Outdoor Luminaire With Globe, High Pressure Sodium Lamp
Custom_Product_Images_Illustration
Appleton® MLAL152G1NMT Mercmaster III ML Series Enclosed Gasketed Low Profile Outdoor Luminaire With Globe, High Pressure Sodium Lamp
SKU422399
MFGR #MLAL152G1NMT
Your Cost: $1,357.29/ea
Light fixtures that work flawlessly and stand up to harsh conditions go unnoticed everyday, which is exactly the point. Appleton luminaires are designed to withstand the harshest conditions and operate across your facility without incident. A century of innovation and testing makes sure of that. From area to task, flood to emergency, we have a light fixture perfectly suited for every task and use in environments that are hazardous, adverse or ordinary. After all, our vast collection of fixtures is unsurpassed in the industry. Appleton has expanded the boundaries of technology, efficiency and performance to ensure your lights stays on, because failure is not an option.
Light fixtures that work flawlessly and stand up to harsh conditions go unnoticed everyday, which is exactly the point. Appleton luminaires are designed to withstand the harshest conditions and operate across your facility without incident. A century of innovation and testing makes sure of that. From area to task, flood to emergency, we have a light fixture perfectly suited for every task and use in environments that are hazardous, adverse or ordinary. After all, our vast collection of fixtures is unsurpassed in the industry. Appleton has expanded the boundaries of technology, efficiency and performance to ensure your lights stays on, because failure is not an option.
Amperage Rating 2/1.15/1/0.85 A Starting, 1.7/0.95/0.85/0.72 A Operating A ARRA Compliant N Ballast Type High Reactance High Power Factor Autotransformer (HX-HPF) Buy American Compliant N Catalog Number MLAL152G1NMT Country of Origin MX Currency USD Dimensions 1.17 in H x 12.06 in W Enclosure Type NEMA 4X/IP66 EU RoHS Indicator C Gross Weight Per Pack 24.5000 lb Gross Weight per Pack Metric 11.11 Gross Weight UOM Metric kg Height 13.80 in Height [Metric] 35.0520 cm Housing Material Cast Copper-Free Aluminum Lamp Base Type Medium Lamp Wattage 150 W Length 24.40 in Length [Metric] 61.9760 cm Lens Type Prismatic Glass Lumens 16000 Lumens Material Stainless Steel Hardware And Latch Assembly, Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood And Body Mounting Type Pendant/Rigid Number Of Lamps 1 Series ML Series Standard Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nR IIC (Z2); Class I, Zone 2, Ex nR IIC (Z); Class I, Zone 2, AEx nR IIC (ZB); Class II, Division 1 And 2, Groups E, F, G; Class III; UL 1598A, 60079-15, 844; CSA LR25428 Sub Brand Mercmaster III Type Enclosed Gasketed Low Profile UNSPSC 39111524 UPC 11 78138165198 UPC 12 781381651981 Width 16.80 in Width [Metric] 42.6720 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Fixture Wattage 188 W Housing Finish Baked Gray Epoxy Clad Powder Coated Lamp Type High Pressure Sodium Voltage Rating 120 to 277 VAC Enclosed And Gasketed Fixtures Suitable For Use In Marine And Wet Locations, And In A Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Or Combustible Dusts Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, R Use In Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust Or Corrosive Atmospheres Are Present, Oil Refineries, Pulp And Paper Mills, Chemical Plants, Food-Processing Areas, Inspection Facilities, Foundries, Power Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, And Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations; Compact light weight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures; Modular design allows scores of fixture component combinations to meet installation and lighting needs; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction ensures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; Fixtures are for use in Class I, Zone 2 hazardous locations 60 Hz frequency rating Compact lightweight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures Modular design allows scores of fixture component combinations to meet installation and lighting needs A choice of heat-resistant prismatic glass refractors (NEMA I, III or V) or heat-resistant globes which thread directly into ballast housing Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres Hinge has high lip for added safety during installation and servicing Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing Swing away design of captive bolt and nut simplifies servicing Fixtures are for use in class I, zone 2 hazardous locations The Ex nR factory sealed Mercmaster III prevents vapors and gases from entering the globe chamber There are no seals or putty required which will reduce installation time and installation errors Mounting hoods, bodies and guard are cast copperfree (4/10 of 1% max) aluminum All hardware and catch assemblies are stainless steel Mounting hoods, bodies and guards are baked gray epoxy clad finish, electrostatically applied for complete uniform protection Heat-resistant prismatic glass globe 2 hub, 3/4 in NPT threaded hub No guard option 40 deg C ambient temperature, 90 deg C supply wire temperature
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 2/1.15/1/0.85 A Starting, 1.7/0.95/0.85/0.72 A Operating A |
| ARRA Compliant | N |
| Ballast Type | High Reactance High Power Factor Autotransformer (HX-HPF) |
| Buy American Compliant | N |
| Catalog Number | MLAL152G1NMT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.17 in H x 12.06 in W |
| Enclosure Type | NEMA 4X/IP66 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 24.5000 lb |
| Gross Weight per Pack Metric | 11.11 |
| Gross Weight UOM Metric | kg |
| Height | 13.80 in |
| Height [Metric] | 35.0520 cm |
| Housing Material | Cast Copper-Free Aluminum |
| Lamp Base Type | Medium |
| Lamp Wattage | 150 W |
| Length | 24.40 in |
| Length [Metric] | 61.9760 cm |
| Lens Type | Prismatic Glass |
| Lumens | 16000 Lumens |
| Material | Stainless Steel Hardware And Latch Assembly, Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood And Body |
| Mounting Type | Pendant/Rigid |
| Number Of Lamps | 1 |
| Series | ML Series |
| Standard | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nR IIC (Z2); Class I, Zone 2, Ex nR IIC (Z); Class I, Zone 2, AEx nR IIC (ZB); Class II, Division 1 And 2, Groups E, F, G; Class III; UL 1598A, 60079-15, 844; CSA LR25428 |
| Sub Brand | Mercmaster III |
| Type | Enclosed Gasketed Low Profile |
| UNSPSC | 39111524 |
| UPC 11 | 78138165198 |
| UPC 12 | 781381651981 |
| Width | 16.80 in |
| Width [Metric] | 42.6720 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Fixture Wattage | 188 W |
| Housing Finish | Baked Gray Epoxy Clad Powder Coated |
| Lamp Type | High Pressure Sodium |
| Voltage Rating | 120 to 277 VAC |
| Enclosed And Gasketed Fixtures Suitable For Use In Marine And Wet Locations, And In A Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Or Combustible Dusts Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, R Use In Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust Or Corrosive Atmospheres Are Present, Oil Refineries, Pulp And Paper Mills, Chemical Plants, Food-Processing Areas, Inspection Facilities, Foundries, Power Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, And Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem |
| The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations; Compact light weight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures; Modular design allows scores of fixture component combinations to meet installation and lighting needs; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction ensures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; Fixtures are for use in Class I, Zone 2 hazardous locations |
| 60 Hz frequency rating |
| Compact lightweight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures |
| Modular design allows scores of fixture component combinations to meet installation and lighting needs |
| A choice of heat-resistant prismatic glass refractors (NEMA I, III or V) or heat-resistant globes which thread directly into ballast housing |
| Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres |
| Hinge has high lip for added safety during installation and servicing |
| Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing |
| Swing away design of captive bolt and nut simplifies servicing |
| Fixtures are for use in class I, zone 2 hazardous locations |
| The Ex nR factory sealed Mercmaster III prevents vapors and gases from entering the globe chamber |
| There are no seals or putty required which will reduce installation time and installation errors |
| Mounting hoods, bodies and guard are cast copperfree (4/10 of 1% max) aluminum |
| All hardware and catch assemblies are stainless steel |
| Mounting hoods, bodies and guards are baked gray epoxy clad finish, electrostatically applied for complete uniform protection |
| Heat-resistant prismatic glass globe |
| 2 hub, 3/4 in NPT threaded hub |
| No guard option |
| 40 deg C ambient temperature, 90 deg C supply wire temperature |
