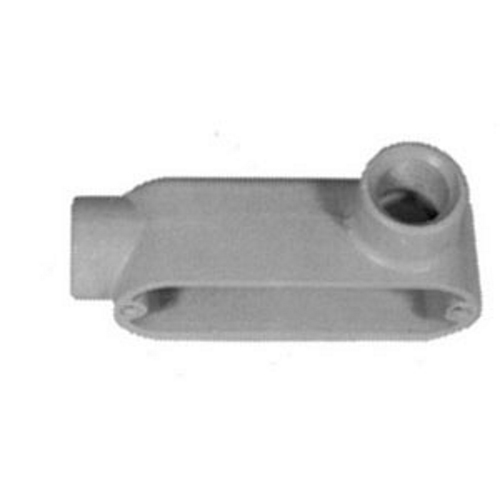

Appleton® LR300A Form 85™ Unilet® LR300-A Type LR Conduit Body, 3 in Hub, 85, 175 cu-in, Aluminum, Epoxy Powder Coated
Custom_Product_Images_Illustration
Appleton® LR300A Form 85™ Unilet® LR300-A Type LR Conduit Body, 3 in Hub, 85, 175 cu-in, Aluminum, Epoxy Powder Coated
SKU307736
MFGR #APPLR300A
$/ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Application For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT ARRA Compliant N Buy American Compliant C Catalog Number APPLR300A Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 13.69 in L x 5.75 in W x 6 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 4.4700 lb Gross Weight per Pack Metric 2.03 Gross Weight UOM Metric kg Height 4.60 in Height [Metric] 11.6840 cm Length 15.20 in Length [Metric] 38.6080 cm Mounting Type Surface Number of Hubs 2 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 Sub Brand UNILETS Type Type LR UNSPSC 39131708 UPC 11 78138111839 UPC 12 781381118392 Width 5.70 in Width [Metric] 14.4780 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 175 in³ Finish Epoxy Powder Coated Form 85 Hub Size 3 in Material Sand Cast Aluminum For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 175 CU-IN as per NEC 314.16(A) Serve as pulling fittings Make bends in conduit system Provide openings for splicing, connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Roomy interiors, more wiring space Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance Lightweight aluminum facilitates shipping, handling and installing Sizes with flat back design ideal where fitting is mounted flat against surface Internal volume and maximum wire capacity clearly marked on castings Threaded style is raintight when used with casketed covers Sand cast aluminum body Tapered FNPT connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| ARRA Compliant | N |
| Buy American Compliant | C |
| Catalog Number | APPLR300A |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 13.69 in L x 5.75 in W x 6 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 4.4700 lb |
| Gross Weight per Pack Metric | 2.03 |
| Gross Weight UOM Metric | kg |
| Height | 4.60 in |
| Height [Metric] | 11.6840 cm |
| Length | 15.20 in |
| Length [Metric] | 38.6080 cm |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 |
| Sub Brand | UNILETS |
| Type | Type LR |
| UNSPSC | 39131708 |
| UPC 11 | 78138111839 |
| UPC 12 | 781381118392 |
| Width | 5.70 in |
| Width [Metric] | 14.4780 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 175 in³ |
| Finish | Epoxy Powder Coated |
| Form | 85 |
| Hub Size | 3 in |
| Material | Sand Cast Aluminum |
| For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 175 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing, connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Roomy interiors, more wiring space |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance |
| Lightweight aluminum facilitates shipping, handling and installing |
| Sizes with flat back design ideal where fitting is mounted flat against surface |
| Internal volume and maximum wire capacity clearly marked on castings |
| Threaded style is raintight when used with casketed covers |
| Sand cast aluminum body |
| Tapered FNPT connection |
