Appleton™

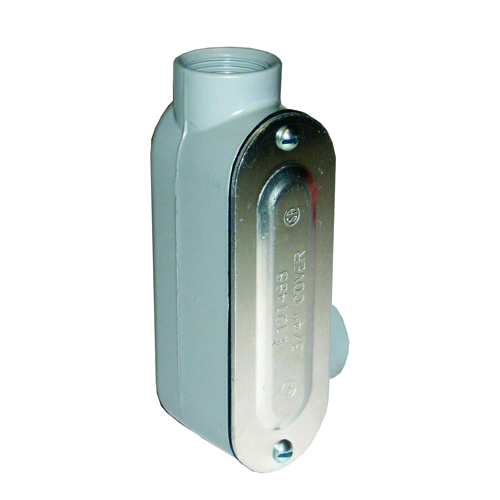

Appleton® LR100DCG NEER™ LR-100DCG Type LR Conduit Body With Cover and Gasket, 1 in Hub, 12.2 cu-in, Aluminum
Custom_Product_Images_Illustration
Appleton™
Appleton® LR100DCG NEER™ LR-100DCG Type LR Conduit Body With Cover and Gasket, 1 in Hub, 12.2 cu-in, Aluminum
SKU338015
MFGR #LR100DCG
Your Cost: $38.58/ea
NEER aluminum threaded conduit bodies are used with rigid conduit or IMC to provide access to the interior of the raceway for wire pulling, splicing and maintenance.
NEER aluminum threaded conduit bodies are used with rigid conduit or IMC to provide access to the interior of the raceway for wire pulling, splicing and maintenance.
Application Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends ARRA Compliant N Buy American Compliant N Catalog Number LR100DCG Connection Type Threaded Country of Origin IN Currency USD Dimensions 5.94 in L x 2.68 in W x 2.14 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 0.6000 lb Gross Weight per Pack Metric 0.27 Gross Weight UOM Metric kg Height 0.80 in Height [Metric] 20.3200 mm Length 10.00 in Length [Metric] 25.4000 cm Number of Hubs 2 Standard UL 514A, CSA C22.2, NEMA FB-1, NEMA FB-2.10, Fed Spec A-A-50563 Standards UL 514A File No. E53330CSA C22.2 No. 18.3/208044RoHS Compliant Sub Brand NEER Type Type LR UNSPSC 39131708 UPC 11 68785500076 UPC 12 68785500076 Width 6.00 in Width [Metric] 15.2400 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 12.2 in³ Finish Powder Coat Form LR Hub Size 1 in Material Die Cast Copper Free Aluminum Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends With Cover and Gasket Lightweight aluminum facilitates shipping, handling and installing Die cast copper free bodies with epoxy powder coat finish, stamped aluminum covers with natural finish, neoprene gaskets Packaged complete under one catalog number and ready to use Compact, with flat back design for easy mounting close to walls and a spacious interior for easy wiring High strength, corrosion and weather resistant Steel pan head screws secure cover to body and provide superior screwdriver seating and torque, cover screws prevent loss Allows connection of straight conduit runs, branch conduit runs and 90 deg bends (3) 4 AWG maximum wire fill Copper free die cast aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LR100DCG |
| Connection Type | Threaded |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 5.94 in L x 2.68 in W x 2.14 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.6000 lb |
| Gross Weight per Pack Metric | 0.27 |
| Gross Weight UOM Metric | kg |
| Height | 0.80 in |
| Height [Metric] | 20.3200 mm |
| Length | 10.00 in |
| Length [Metric] | 25.4000 cm |
| Number of Hubs | 2 |
| Standard | UL 514A, CSA C22.2, NEMA FB-1, NEMA FB-2.10, Fed Spec A-A-50563 |
| Standards | UL 514A File No. E53330CSA C22.2 No. 18.3/208044RoHS Compliant |
| Sub Brand | NEER |
| Type | Type LR |
| UNSPSC | 39131708 |
| UPC 11 | 68785500076 |
| UPC 12 | 68785500076 |
| Width | 6.00 in |
| Width [Metric] | 15.2400 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 12.2 in³ |
| Finish | Powder Coat |
| Form | LR |
| Hub Size | 1 in |
| Material | Die Cast Copper Free Aluminum |
| Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends |
| With Cover and Gasket |
| Lightweight aluminum facilitates shipping, handling and installing |
| Die cast copper free bodies with epoxy powder coat finish, stamped aluminum covers with natural finish, neoprene gaskets |
| Packaged complete under one catalog number and ready to use |
| Compact, with flat back design for easy mounting close to walls and a spacious interior for easy wiring |
| High strength, corrosion and weather resistant |
| Steel pan head screws secure cover to body and provide superior screwdriver seating and torque, cover screws prevent loss |
| Allows connection of straight conduit runs, branch conduit runs and 90 deg bends |
| (3) 4 AWG maximum wire fill |
| Copper free die cast aluminum |
