Appleton™

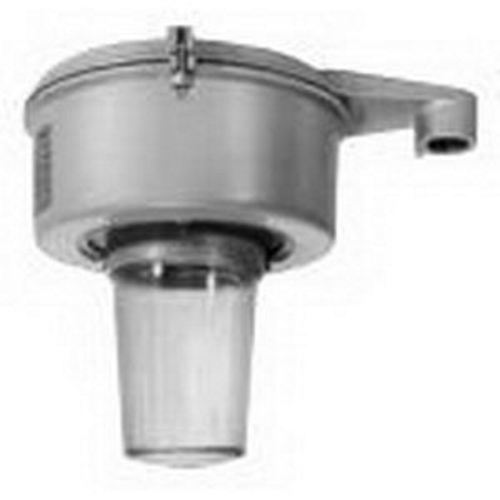

Appleton® KPSTL15150J5GMT Mercmaster III 250 KP Series HID Luminaire With 8 in NEMA 5 Glass Refractor and Globe Guard, 188 W Fixture
Custom_Product_Images_Illustration
Appleton™
Appleton® KPSTL15150J5GMT Mercmaster III 250 KP Series HID Luminaire With 8 in NEMA 5 Glass Refractor and Globe Guard, 188 W Fixture
SKU713846
MFGR #KPSTL15150J5GMT
Your Cost: $1,994.88/ea
The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations.
The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations.
Amperage Rating 2/1.15/1/0.85 A Starting, 1.7/0.95/0.85/0.72 A Operating A ARRA Compliant N Ballast Type High Reactance High Power Factor Autotransformer (HX-HPF) Buy American Compliant N Catalog Number KPSTL15150J5GMT Country of Origin MX Currency USD Dimensions 17.23 in L Enclosure Type NEMA 4X/IP66 EU RoHS Indicator C Gross Weight Per Pack 1 lb Housing Material Cast Copper-Free Aluminum Lamp Base Type Mogul Lamp Wattage 150 W Lens Type Prismatic Glass Lumens 16000 Lumens Material Copperfree Cast Aluminum (Less Than 4/10 Of 1 PCT) Mounting Hoods, Ballast Bodies And Guards, Stainless Steel Hardware And Latch Assemblies Mounting Type Stanchion Number Of Lamps 1 Series KP Series Sub Brand Mercmaster III 250 Type Enclosed Gasketed UNSPSC 39111524 UPC 11 78138104943 UPC 12 781381049436 Width 17.23 in Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Fixture Wattage 188 W Housing Finish Epoxy Powder Coated Lamp Type High Pressure Sodium Voltage Rating 120 to 277 VAC For Use In Marine And Wet Locations, Areas Where Flammable Gases And Vapors Or Combustible Dusts Are Present Under Conditions Defined By The National Electrical Code , Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust Or Corrosive Atmospheres Are Encountered, Pulp And Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Marine Applications The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations; Epoxy powder coat finish electrostatically applied for complete uniform corrosion protection; Modular design allows scores of fixture component combinations to meet installation and lighting needs; Many most used combinations are offered prewired and assembled, complete with lamp, packaged in a single carton and ready to install; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction ensures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; Body gaskets and globe gaskets are high temperature silicone rubber; Capacitors are non-PCB type, thermally isolated from ballast; Mogul base porcelain socket with nickel-plated contacts has 200 DEG C welded leads, prewired to the ballast to en Modular design allows scores of fixture component combinations to meet installation and lighting needs Many most used combinations are offered prewired and assembled, complete with lamp, packaged in a single carton and ready to install For high corrosion resistance, fixture housing, mounting hoods and guards are copper free cast aluminum with baked epoxy finish, electrostatically applied for uniformity, all exposed hardware is stainless steel Hinge has high lip for added safety during installation and servicing Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing Swing away design of captive bolt and nut simplifies servicing Body gaskets and globe gaskets are high temperature silicone rubber Capacitors are non-PCB type, thermally isolated from ballast Mogul base porcelain socket with nickel plated contacts has 200 deg C (392 deg F), welded leads, prewired to the ballast 2 A at 120 VAC, 1.15 A at 208 VAC, 1 A at 240 VAC, 0.85 A at 277 VAC starting, 1.7 A at 120 VAC, 0.95 A at 208 VAC, 0.85 A at 240 VAC, 0.72 A at 277 VAC operating Hinge has high lip for added safety during installation and servicing Body gaskets and globe gaskets are high temperature silicone rubber, capacitors are non-PCB type, thermally isolated from ballast Mogul base porcelain socket with nickel plated contacts has 200 deg C (392 deg F) welded leads, prewired to the ballast, assures trouble-free operation in installations where high ambient temperatures are encountered HPS ballasts are high power factor (min PF 90%) For electrical protection, a ground wire is provided on each Mercmaster to bond hood and ballast housing Copperfree cast aluminum (less than 4/10 of 1%) mounting hoods, ballast bodies and guards Stainless steel, latch assemblies have stainless steel bolt and captive nut; reflectors and guards attach with stainless steel screws threading into stainless steel inserts exposed hardware, white polyester reflector 1 hub 1-1/2 in NPT hub 60 Hz frequency
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 2/1.15/1/0.85 A Starting, 1.7/0.95/0.85/0.72 A Operating A |
| ARRA Compliant | N |
| Ballast Type | High Reactance High Power Factor Autotransformer (HX-HPF) |
| Buy American Compliant | N |
| Catalog Number | KPSTL15150J5GMT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 17.23 in L |
| Enclosure Type | NEMA 4X/IP66 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1 lb |
| Housing Material | Cast Copper-Free Aluminum |
| Lamp Base Type | Mogul |
| Lamp Wattage | 150 W |
| Lens Type | Prismatic Glass |
| Lumens | 16000 Lumens |
| Material | Copperfree Cast Aluminum (Less Than 4/10 Of 1 PCT) Mounting Hoods, Ballast Bodies And Guards, Stainless Steel Hardware And Latch Assemblies |
| Mounting Type | Stanchion |
| Number Of Lamps | 1 |
| Series | KP Series |
| Sub Brand | Mercmaster III 250 |
| Type | Enclosed Gasketed |
| UNSPSC | 39111524 |
| UPC 11 | 78138104943 |
| UPC 12 | 781381049436 |
| Width | 17.23 in |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Fixture Wattage | 188 W |
| Housing Finish | Epoxy Powder Coated |
| Lamp Type | High Pressure Sodium |
| Voltage Rating | 120 to 277 VAC |
| For Use In Marine And Wet Locations, Areas Where Flammable Gases And Vapors Or Combustible Dusts Are Present Under Conditions Defined By The National Electrical Code , Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust Or Corrosive Atmospheres Are Encountered, Pulp And Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Marine Applications |
| The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations; Epoxy powder coat finish electrostatically applied for complete uniform corrosion protection; Modular design allows scores of fixture component combinations to meet installation and lighting needs; Many most used combinations are offered prewired and assembled, complete with lamp, packaged in a single carton and ready to install; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction ensures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; Body gaskets and globe gaskets are high temperature silicone rubber; Capacitors are non-PCB type, thermally isolated from ballast; Mogul base porcelain socket with nickel-plated contacts has 200 DEG C welded leads, prewired to the ballast to en |
| Modular design allows scores of fixture component combinations to meet installation and lighting needs |
| Many most used combinations are offered prewired and assembled, complete with lamp, packaged in a single carton and ready to install |
| For high corrosion resistance, fixture housing, mounting hoods and guards are copper free cast aluminum with baked epoxy finish, electrostatically applied for uniformity, all exposed hardware is stainless steel |
| Hinge has high lip for added safety during installation and servicing |
| Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing |
| Swing away design of captive bolt and nut simplifies servicing |
| Body gaskets and globe gaskets are high temperature silicone rubber |
| Capacitors are non-PCB type, thermally isolated from ballast |
| Mogul base porcelain socket with nickel plated contacts has 200 deg C (392 deg F), welded leads, prewired to the ballast |
| 2 A at 120 VAC, 1.15 A at 208 VAC, 1 A at 240 VAC, 0.85 A at 277 VAC starting, 1.7 A at 120 VAC, 0.95 A at 208 VAC, 0.85 A at 240 VAC, 0.72 A at 277 VAC operating |
| Hinge has high lip for added safety during installation and servicing |
| Body gaskets and globe gaskets are high temperature silicone rubber, capacitors are non-PCB type, thermally isolated from ballast |
| Mogul base porcelain socket with nickel plated contacts has 200 deg C (392 deg F) welded leads, prewired to the ballast, assures trouble-free operation in installations where high ambient temperatures are encountered |
| HPS ballasts are high power factor (min PF 90%) |
| For electrical protection, a ground wire is provided on each Mercmaster to bond hood and ballast housing |
| Copperfree cast aluminum (less than 4/10 of 1%) mounting hoods, ballast bodies and guards |
| Stainless steel, latch assemblies have stainless steel bolt and captive nut; reflectors and guards attach with stainless steel screws threading into stainless steel inserts exposed hardware, white polyester reflector |
| 1 hub |
| 1-1/2 in NPT hub |
| 60 Hz frequency |
