Appleton™

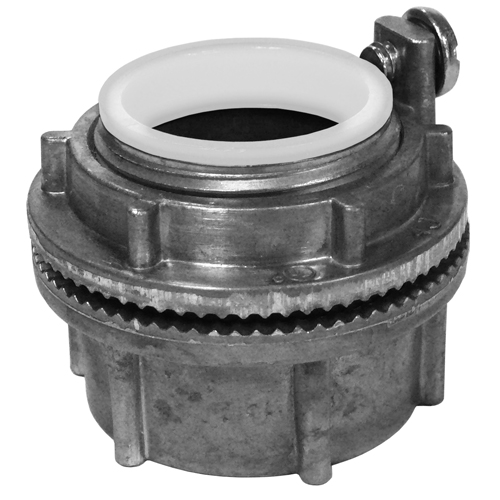

Appleton® HUBG50DN Grounding Conduit Hub, 1/2 in, For use with IMC/Rigid Conduit, Die Cast Zinc
Custom_Product_Images_Illustration
Appleton™
Appleton® HUBG50DN Grounding Conduit Hub, 1/2 in, For use with IMC/Rigid Conduit, Die Cast Zinc
SKU600639
MFGR #HUBG50DN
Your Cost: $18.72/ea
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
Application Used to Connect Rigid or IMC Conduit to a Threadless Opening in an Enclosure ARRA Compliant N Buy American Compliant N Catalog Number HUBG50DN Country of Origin IN Currency USD Dimensions 1.44 in OD x 1.53 in L EU RoHS Indicator C Gross Weight Per Pack 0.1900 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Height 0.24 in Height [Metric] 6.0960 mm Length 5.30 in Length [Metric] 13.4620 cm Series HUBG Standard UL Standard: 514B; UL Listed: E14814; CSA Standard: C22.2 No. 18.3; CSA Certified: 065178; NEMA: FB-1 Sub Brand Neer Temperature Rating 105 Degree C °C Type Grounding UNSPSC 39121311 UPC 11 68785500221 UPC 12 68785500221 Width 3.70 in Width [Metric] 9.3980 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Material Die Cast Zinc Size 1/2 in Suitable For Use With IMC/Rigid Conduit Used to Connect Rigid or IMC Conduit to a Threadless Opening in an Enclosure 1/2 IN Trade Size Hub, Hole Dia. Min .086 IN, Hole Dia. Max .091 IN, Panel Thickness Min. 0.03 IN, Panel Thickness Max. 0.25 IN, Insulated Throat, Grounding Style Buna-N o-ring, polycarbonate insulator, mild steel ground screw Insulated throat, rated up to 105 deg C (221 deg F), prevents wire abrasion Integral o-ring provides watertight seal Grounding version provides positive ground for external conductor Unique profile permits easy wrenching Smooth, accurately tapped threads facilitate installation Watertight and corrosion resistant NEMA types 2, 3, 3R, 4, 4X, 5, 12, 13 May be used in wet or dry locations, indoors or outdoors 0.86 - 0.91 in hole diameter 0.03 - 0.25 in panel thickness 10-32 x 1/4 in ground screw size 0.88 in knockout hole size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Used to Connect Rigid or IMC Conduit to a Threadless Opening in an Enclosure |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HUBG50DN |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 1.44 in OD x 1.53 in L |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1900 lb |
| Gross Weight per Pack Metric | 0.09 |
| Gross Weight UOM Metric | kg |
| Height | 0.24 in |
| Height [Metric] | 6.0960 mm |
| Length | 5.30 in |
| Length [Metric] | 13.4620 cm |
| Series | HUBG |
| Standard | UL Standard: 514B; UL Listed: E14814; CSA Standard: C22.2 No. 18.3; CSA Certified: 065178; NEMA: FB-1 |
| Sub Brand | Neer |
| Temperature Rating | 105 Degree C °C |
| Type | Grounding |
| UNSPSC | 39121311 |
| UPC 11 | 68785500221 |
| UPC 12 | 68785500221 |
| Width | 3.70 in |
| Width [Metric] | 9.3980 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Material | Die Cast Zinc |
| Size | 1/2 in |
| Suitable For Use With | IMC/Rigid Conduit |
| Used to Connect Rigid or IMC Conduit to a Threadless Opening in an Enclosure |
| 1/2 IN Trade Size Hub, Hole Dia. Min .086 IN, Hole Dia. Max .091 IN, Panel Thickness Min. 0.03 IN, Panel Thickness Max. 0.25 IN, Insulated Throat, Grounding Style |
| Buna-N o-ring, polycarbonate insulator, mild steel ground screw |
| Insulated throat, rated up to 105 deg C (221 deg F), prevents wire abrasion |
| Integral o-ring provides watertight seal |
| Grounding version provides positive ground for external conductor |
| Unique profile permits easy wrenching |
| Smooth, accurately tapped threads facilitate installation |
| Watertight and corrosion resistant |
| NEMA types 2, 3, 3R, 4, 4X, 5, 12, 13 |
| May be used in wet or dry locations, indoors or outdoors |
| 0.86 - 0.91 in hole diameter |
| 0.03 - 0.25 in panel thickness |
| 10-32 x 1/4 in ground screw size |
| 0.88 in knockout hole size |
