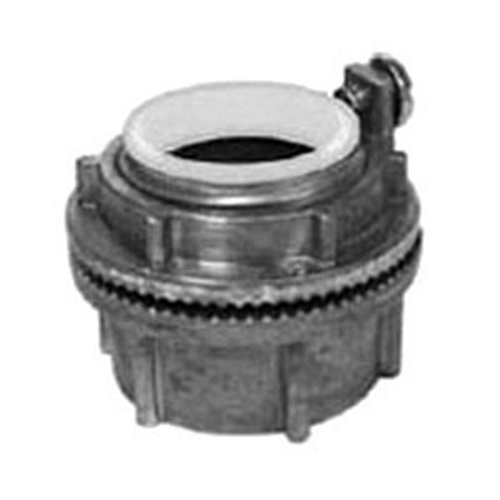

Appleton® HUBG200A Grounding Conduit Hub With Grounding Screw, 2 in, For use with IMC/Rigid Conduit, Die Cast Aluminum
Custom_Product_Images_Illustration
Appleton® HUBG200A Grounding Conduit Hub With Grounding Screw, 2 in, For use with IMC/Rigid Conduit, Die Cast Aluminum
SKU811640
MFGR #HUBG200A
Your Cost: $24.60/ea
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
Application For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure ARRA Compliant N Buy American Compliant N Cable Entry 2.5 Catalog Number HUBG200A Construction Rugged Die-Cast Country of Origin CN Currency USD Dimensions 3.23 in OD x 1.89 in L Enclosure NEMA 2, 3, 3R, 4, 4X, 5, 12, 13 EU RoHS Indicator N Gross Weight Per Pack 0.4100 lb Gross Weight per Pack Metric 0.19 Gross Weight UOM Metric kg Height 0.64 in Height [Metric] 16.2560 mm Insulation Class 150 Length 8.30 in Length [Metric] 21.0820 cm Series HUBG Standard UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1 Standards UL 514BUL File No. E14814/E24264/E11853CSA Standard C22.2 No. 18.3, CSA Certified 065178NEMA FB-1UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III, per NEC 501.10(B)(4), 502.10(A)(3), 502.10(B)(4), 503.10(A)(1) Type Insulated Hub With Grounding Screw UNSPSC 39121311 UPC 11 78138119159 UPC 12 781381191593 Width 6.60 in Width [Metric] 16.7640 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Aluminum Material Rugged Die Cast Aluminum Size 2 in Suitable For Use With IMC/Rigid Conduit For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure Rugged metallic construction ensures mechanical protection; May be used in wet or dry locations, indoors or outdoors; Insulated throat, rated up to 150 DEG C, prevents wire abrasion; Integral O-ring provides watertight seal; Unique profile permits easy wrenching; Smooth, accurately tapped threads facilitate installation; Watertight and corrosion resistant; Grounding version provides positive ground for external conductor; Hole diameter: 2.36 - 2-1/2 IN; Panel thickness: 0.06 - 1/4 IN; Aluminum bodies and nuts, BUNA-N o-ring, polypropylene insulator, stainless steel ground screw Buna-N o-ring, polycarbonate insulator, mild steel ground screw Insulated throat, rated up to 105 deg C (221 deg F), prevents wire abrasion Integral o-ring provides watertight seal Grounding version provides positive ground for external conductor Unique profile permits easy wrenching Smooth, accurately tapped threads facilitate installation Watertight and corrosion resistant NEMA types 2, 3, 3R, 4, 4X, 5, 12, 13 May be used in wet or dry locations, indoors or outdoors 2.36 - 2.50 in hole diameter 0.06 - 0.25 in panel thickness 1/4-20 x 0.333 in ground screw size 2.5 in knockout hole size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Entry | 2.5 |
| Catalog Number | HUBG200A |
| Construction | Rugged Die-Cast |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 3.23 in OD x 1.89 in L |
| Enclosure | NEMA 2, 3, 3R, 4, 4X, 5, 12, 13 |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.4100 lb |
| Gross Weight per Pack Metric | 0.19 |
| Gross Weight UOM Metric | kg |
| Height | 0.64 in |
| Height [Metric] | 16.2560 mm |
| Insulation Class | 150 |
| Length | 8.30 in |
| Length [Metric] | 21.0820 cm |
| Series | HUBG |
| Standard | UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1 |
| Standards | UL 514BUL File No. E14814/E24264/E11853CSA Standard C22.2 No. 18.3, CSA Certified 065178NEMA FB-1UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III, per NEC 501.10(B)(4), 502.10(A)(3), 502.10(B)(4), 503.10(A)(1) |
| Type | Insulated Hub With Grounding Screw |
| UNSPSC | 39121311 |
| UPC 11 | 78138119159 |
| UPC 12 | 781381191593 |
| Width | 6.60 in |
| Width [Metric] | 16.7640 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Aluminum |
| Material | Rugged Die Cast Aluminum |
| Size | 2 in |
| Suitable For Use With | IMC/Rigid Conduit |
| For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure |
| Rugged metallic construction ensures mechanical protection; May be used in wet or dry locations, indoors or outdoors; Insulated throat, rated up to 150 DEG C, prevents wire abrasion; Integral O-ring provides watertight seal; Unique profile permits easy wrenching; Smooth, accurately tapped threads facilitate installation; Watertight and corrosion resistant; Grounding version provides positive ground for external conductor; Hole diameter: 2.36 - 2-1/2 IN; Panel thickness: 0.06 - 1/4 IN; Aluminum bodies and nuts, BUNA-N o-ring, polypropylene insulator, stainless steel ground screw |
| Buna-N o-ring, polycarbonate insulator, mild steel ground screw |
| Insulated throat, rated up to 105 deg C (221 deg F), prevents wire abrasion |
| Integral o-ring provides watertight seal |
| Grounding version provides positive ground for external conductor |
| Unique profile permits easy wrenching |
| Smooth, accurately tapped threads facilitate installation |
| Watertight and corrosion resistant |
| NEMA types 2, 3, 3R, 4, 4X, 5, 12, 13 |
| May be used in wet or dry locations, indoors or outdoors |
| 2.36 - 2.50 in hole diameter |
| 0.06 - 0.25 in panel thickness |
| 1/4-20 x 0.333 in ground screw size |
| 2.5 in knockout hole size |
