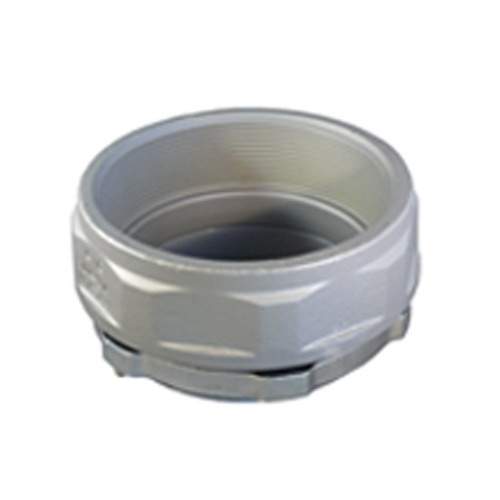

Appleton® HUB-500MB Straight Conduit Hub With Bonding Screw, 5 in, For use with IMC/Rigid Conduit, Malleable Iron, Tri-Coated

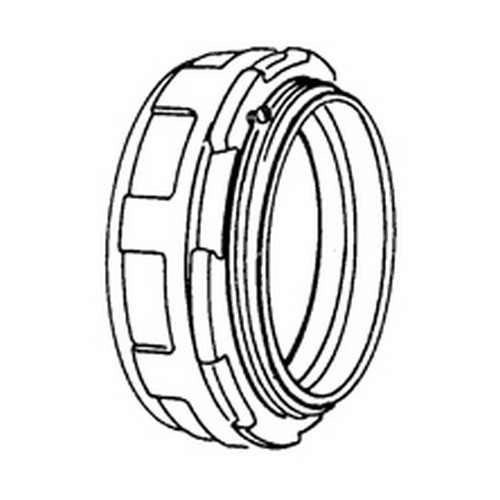

Custom_Product_Images_Illustration
Appleton® HUB-500MB Straight Conduit Hub With Bonding Screw, 5 in, For use with IMC/Rigid Conduit, Malleable Iron, Tri-Coated
SKU292891
MFGR #HUB500MB
Your Cost: $544.30/ea
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.
Application For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure ARRA Compliant N Buy American Compliant N Catalog Number HUB500MB Country of Origin MX Currency USD Dimensions 6.63 in Dia x 2.03 in L EU RoHS Indicator C Gross Weight Per Pack 6.8200 lb Gross Weight per Pack Metric 3.09 Gross Weight UOM Metric kg Height 5.90 in Height [Metric] 14.9860 cm Length 7.70 in Length [Metric] 19.5580 cm Series HUB Standard UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed For Class I, Division 2 Standards UL 514BUL File No. E14814CSA 065178/18.3NEMA FB-1RoHS CompliantClass I, Div 2 Type Insulated Throat Straight UNSPSC 39121311 UPC 11 78138154203 UPC 12 781381542036 Width 7.30 in Width [Metric] 18.5420 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Material Malleable Iron Size 5 in Suitable For Use With IMC/Rigid Conduit For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure Provides threaded termination in sheet metal enclosures; Suitable for service entrance; General purpose fitting; Bonding locknut; Insulated throat; Recessed neoprene O-ring to assure water and dust-tight connections; Wedge: Malleable iron, zinc electroplated, chromate, epoxy powdercoated; Locknut: Zinc electroplated steel; Screw: Zinc electroplated steel; O-ring: Neoprene; Liners: Nylon Appleton™s Uni-Seal rigid conduit hubs eliminate the need for welded hubs Efficiency of installation is built into the superior design, single wrench installation Patented hex-hub wedge adapter fits nearly flush against the interior side walls of enclosures; provides maximum wiring room Simple two piece construction Protective insulated throats, positive grounding and watertight sealing action Flame resistant insulated throat eliminates need for end bushings Locking edge of body bites into enclosure wall, makes hub self-locking, eliminates the need for locknuts, provides continuous 360 deg pressure on both sides of enclosure wall, forms positive grounding and vibration resistant connection Built-in recessed gasket Bonding locknut Insulated throat Recessed neoprene o-ring to assure water and dust tight connections Steel, zinc electroplate locknut, screw Malleable iron, zinc electroplate, chromate, epoxy powder coat wedge Nylon liners Triple-Coat (zinc Electroplated, chromate and epoxy powder coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HUB500MB |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.63 in Dia x 2.03 in L |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 6.8200 lb |
| Gross Weight per Pack Metric | 3.09 |
| Gross Weight UOM Metric | kg |
| Height | 5.90 in |
| Height [Metric] | 14.9860 cm |
| Length | 7.70 in |
| Length [Metric] | 19.5580 cm |
| Series | HUB |
| Standard | UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed For Class I, Division 2 |
| Standards | UL 514BUL File No. E14814CSA 065178/18.3NEMA FB-1RoHS CompliantClass I, Div 2 |
| Type | Insulated Throat Straight |
| UNSPSC | 39121311 |
| UPC 11 | 78138154203 |
| UPC 12 | 781381542036 |
| Width | 7.30 in |
| Width [Metric] | 18.5420 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Material | Malleable Iron |
| Size | 5 in |
| Suitable For Use With | IMC/Rigid Conduit |
| For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure |
| Provides threaded termination in sheet metal enclosures; Suitable for service entrance; General purpose fitting; Bonding locknut; Insulated throat; Recessed neoprene O-ring to assure water and dust-tight connections; Wedge: Malleable iron, zinc electroplated, chromate, epoxy powdercoated; Locknut: Zinc electroplated steel; Screw: Zinc electroplated steel; O-ring: Neoprene; Liners: Nylon |
| Appleton™s Uni-Seal rigid conduit hubs eliminate the need for welded hubs |
| Efficiency of installation is built into the superior design, single wrench installation |
| Patented hex-hub wedge adapter fits nearly flush against the interior side walls of enclosures; provides maximum wiring room |
| Simple two piece construction |
| Protective insulated throats, positive grounding and watertight sealing action |
| Flame resistant insulated throat eliminates need for end bushings |
| Locking edge of body bites into enclosure wall, makes hub self-locking, eliminates the need for locknuts, provides continuous 360 deg pressure on both sides of enclosure wall, forms positive grounding and vibration resistant connection |
| Built-in recessed gasket |
| Bonding locknut |
| Insulated throat |
| Recessed neoprene o-ring to assure water and dust tight connections |
| Steel, zinc electroplate locknut, screw |
| Malleable iron, zinc electroplate, chromate, epoxy powder coat wedge |
| Nylon liners |
| Triple-Coat (zinc Electroplated, chromate and epoxy powder coated) |
