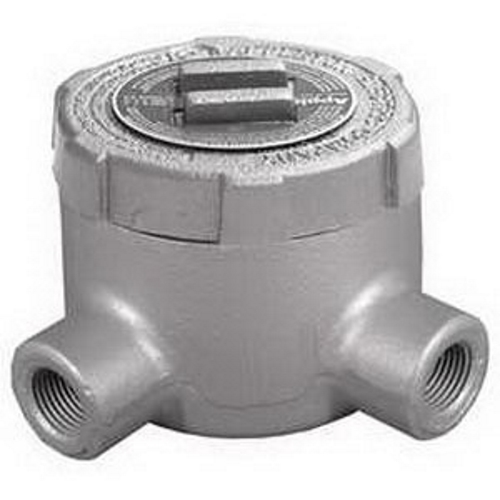

Appleton® GUL75 Unilets™ GUL L-Style Explosionproof Conduit Outlet Box 3/4 in 3.38 in Cover Opening 19 cu-in Tri-Coated
Custom_Product_Images_Illustration
Appleton® GUL75 Unilets™ GUL L-Style Explosionproof Conduit Outlet Box 3/4 in 3.38 in Cover Opening 19 cu-in Tri-Coated
SKU355029
MFGR #GUL75
$/ea
Appleton Group™s explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Appleton Group™s explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Application For Use With Threaded Metal Conduit ARRA Compliant N Brand Appleton™ Buy American Compliant N Cable Entry 0.75 Capacity 19 in³ Catalog Number GUL75 Country of Origin MX Cover Opening Size 3.38 in Cubic Capacity 19 CU-IN in³ Currency USD Depth 3/4 in Dimensions 4.28 in H x 4.28 in W x 2.25 in D EU RoHS Indicator C Finish Triple Coated Gross Weight Per Pack 3.4000 lb Gross Weight per Pack Metric 1.54 Gross Weight UOM Metric kg Height 4.10 in Height [Metric] 10.4140 cm Length 5.00 in Length [Metric] 12.7000 cm Manufacturer Appleton Material Malleable Iron Number Of Outlet 2 Series GUL Size 3/4 in Standard UL 886, UL File Number E10444 , CSA C22.2 No. 25, C22.2 No. 30, CSA 025875 Certified; Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III Standards UL 886UL File No. E10444CSA C22.2 No. 25C22.2 No. 30CSA 025875Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class IIIRoHS Compliant Stock Status NONSTOCK Sub Brand UNILETS Suitable For Use With Threaded Metal Conduit System Type L-Style Dust-Ignitionproof UNSPSC 39121308 UPC 11 78138151739 UPC 12 781381517393 Width 4.80 in Width [Metric] 12.1920 cm For Use With Threaded Metal Conduit Explosionproof, dust-ignitionproof; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with malleable iron cover and cover gasket; General purpose wiring; Externally threaded body with internally threaded cover; Smooth, rounded integral bushing in each hub type box protects conductor insulation; Internal ground screw standard; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity General purpose wiring Externally threaded body with internally threaded cover Smooth, rounded integral bushing in each hub type box protects conductor insulation Complies with a wide range of classified area requirements Corrosion-resistant For pulling of wires Connect conduit lengths and change direction of conduit runs Provide access for maintenance Zinc electro plated, chromate and epoxy powder coated For pulling of wires Connect conduit lengths and change direction of conduit runs Provide access for maintenance 2 outlet, (2) 3/4 in GUC hub cable entry, Without knockout Triple Coat (Zinc electro plated Chromate and Epoxy Powder Coated) Form 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Metal Conduit |
| ARRA Compliant | N |
| Brand | Appleton™ |
| Buy American Compliant | N |
| Cable Entry | 0.75 |
| Capacity | 19 in³ |
| Catalog Number | GUL75 |
| Country of Origin | MX |
| Cover Opening Size | 3.38 in |
| Cubic Capacity | 19 CU-IN in³ |
| Currency | USD |
| Depth | 3/4 in |
| Dimensions | 4.28 in H x 4.28 in W x 2.25 in D |
| EU RoHS Indicator | C |
| Finish | Triple Coated |
| Gross Weight Per Pack | 3.4000 lb |
| Gross Weight per Pack Metric | 1.54 |
| Gross Weight UOM Metric | kg |
| Height | 4.10 in |
| Height [Metric] | 10.4140 cm |
| Length | 5.00 in |
| Length [Metric] | 12.7000 cm |
| Manufacturer | Appleton |
| Material | Malleable Iron |
| Number Of Outlet | 2 |
| Series | GUL |
| Size | 3/4 in |
| Standard | UL 886, UL File Number E10444 , CSA C22.2 No. 25, C22.2 No. 30, CSA 025875 Certified; Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| Standards | UL 886UL File No. E10444CSA C22.2 No. 25C22.2 No. 30CSA 025875Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class IIIRoHS Compliant |
| Stock Status | NONSTOCK |
| Sub Brand | UNILETS |
| Suitable For Use With | Threaded Metal Conduit System |
| Type | L-Style Dust-Ignitionproof |
| UNSPSC | 39121308 |
| UPC 11 | 78138151739 |
| UPC 12 | 781381517393 |
| Width | 4.80 in |
| Width [Metric] | 12.1920 cm |
| For Use With Threaded Metal Conduit |
| Explosionproof, dust-ignitionproof; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with malleable iron cover and cover gasket; General purpose wiring; Externally threaded body with internally threaded cover; Smooth, rounded integral bushing in each hub type box protects conductor insulation; Internal ground screw standard; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock |
| Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity |
| General purpose wiring |
| Externally threaded body with internally threaded cover |
| Smooth, rounded integral bushing in each hub type box protects conductor insulation |
| Complies with a wide range of classified area requirements |
| Corrosion-resistant |
| For pulling of wires |
| Connect conduit lengths and change direction of conduit runs |
| Provide access for maintenance |
| Zinc electro plated, chromate and epoxy powder coated |
| For pulling of wires |
| Connect conduit lengths and change direction of conduit runs |
| Provide access for maintenance |
| 2 outlet, (2) 3/4 in GUC hub cable entry, Without knockout |
| Triple Coat (Zinc electro plated Chromate and Epoxy Powder Coated) |
| Form 1 |
