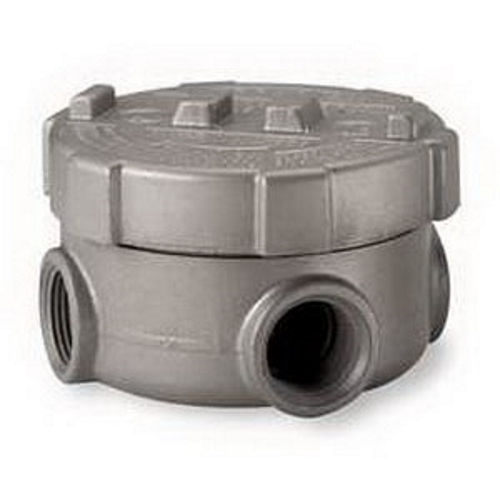

Appleton® GRU50-A Unilets™ GRU Explosionproof Conduit Outlet Box, 1/2 in, 3.38 in Cover Opening, 13-1/2 cu-in
Custom_Product_Images_Illustration
Appleton® GRU50-A Unilets™ GRU Explosionproof Conduit Outlet Box, 1/2 in, 3.38 in Cover Opening, 13-1/2 cu-in
SKU281348
MFGR #GRU50-A
Your Cost: $127.15/ea
Appleton Group's explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Appleton Group's explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Application For Use With Threaded Metal Conduit ARRA Compliant N Buy American Compliant N Cable Entry 0.50 Catalog Number GRU50-A Country of Origin MX Cubic Capacity 13.5 CU-IN in³ Currency USD Depth 1/2 in Dimensions 3.75 in H x 2.69 in W EU RoHS Indicator C Gross Weight Per Pack 1.5000 lb Gross Weight per Pack Metric 0.68 Gross Weight UOM Metric kg Height 1.20 in Height [Metric] 3.0480 cm Length 13.90 in Length [Metric] 35.3060 cm Material Aluminum Number Of Outlet 5 Series GRU Standard UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III Standards UL 886UL File No. E10444CSA C22.2 No. 25C22.2 No. 30/025875Class I, Div 1 and 2, Groups C, D, Class II, Div 1 and 2, Groups E, F, G, Class IIIRoHS Compliant Sub Brand UNILETS Suitable For Use With Threaded Metal Conduit System Type Dust-Ignitionproof Universal UNSPSC 39121308 UPC 11 78138111708 UPC 12 781381117081 Width 10.10 in Width [Metric] 25.6540 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 13-1/2 in³ Cover Opening Size 3.38 in Finish Epoxy Powder Coated Size 1/2 in For Use With Threaded Metal Conduit Explosionproof, dust-ignitionproof; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with internal ground screw, epoxy powder coat cover; General purpose wiring; Universal design with five threaded universal hubs and three close-up plugs; Copperfree aluminum body and cover provide resistance to corrosive atmospheres; Internally threaded body and externally threaded cover with O-ring for raintight fit, NEMA 3, 4; Covers have pry notches for bar or wrench; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant: ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance Explosion proof dust-ignitionproof Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity Furnished with internal ground screw, epoxy powder coat cover General purpose wiring Universal design with five threaded universal hubs and three close-up plugs Copper free aluminum body and cover provide resistance to corrosive atmospheres Internally threaded body and externally threaded cover with O-ring for raintight fit, NEMA 3, 4 Covers have pry notches for bar or wrench Smooth, rounded integral bushing in hub box protects conductor insulation Complies with a wide range of classified area requirements Corrosion-resistant: ideal indoors or out For pulling of wires Connect conduit lengths and change direction of conduit runs; Provide access for maintenance Provide access for maintenance 5 outlet, (5) 1/2 in hub cable entry, 1 form number Copper Free Aluminum Form 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Metal Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Entry | 0.50 |
| Catalog Number | GRU50-A |
| Country of Origin | MX |
| Cubic Capacity | 13.5 CU-IN in³ |
| Currency | USD |
| Depth | 1/2 in |
| Dimensions | 3.75 in H x 2.69 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.5000 lb |
| Gross Weight per Pack Metric | 0.68 |
| Gross Weight UOM Metric | kg |
| Height | 1.20 in |
| Height [Metric] | 3.0480 cm |
| Length | 13.90 in |
| Length [Metric] | 35.3060 cm |
| Material | Aluminum |
| Number Of Outlet | 5 |
| Series | GRU |
| Standard | UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| Standards | UL 886UL File No. E10444CSA C22.2 No. 25C22.2 No. 30/025875Class I, Div 1 and 2, Groups C, D, Class II, Div 1 and 2, Groups E, F, G, Class IIIRoHS Compliant |
| Sub Brand | UNILETS |
| Suitable For Use With | Threaded Metal Conduit System |
| Type | Dust-Ignitionproof Universal |
| UNSPSC | 39121308 |
| UPC 11 | 78138111708 |
| UPC 12 | 781381117081 |
| Width | 10.10 in |
| Width [Metric] | 25.6540 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 13-1/2 in³ |
| Cover Opening Size | 3.38 in |
| Finish | Epoxy Powder Coated |
| Size | 1/2 in |
| For Use With Threaded Metal Conduit |
| Explosionproof, dust-ignitionproof; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with internal ground screw, epoxy powder coat cover; General purpose wiring; Universal design with five threaded universal hubs and three close-up plugs; Copperfree aluminum body and cover provide resistance to corrosive atmospheres; Internally threaded body and externally threaded cover with O-ring for raintight fit, NEMA 3, 4; Covers have pry notches for bar or wrench; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant: ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Explosion proof dust-ignitionproof |
| Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity |
| Furnished with internal ground screw, epoxy powder coat cover |
| General purpose wiring |
| Universal design with five threaded universal hubs and three close-up plugs |
| Copper free aluminum body and cover provide resistance to corrosive atmospheres |
| Internally threaded body and externally threaded cover with O-ring for raintight fit, NEMA 3, 4 |
| Covers have pry notches for bar or wrench |
| Smooth, rounded integral bushing in hub box protects conductor insulation |
| Complies with a wide range of classified area requirements |
| Corrosion-resistant: ideal indoors or out |
| For pulling of wires |
| Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Provide access for maintenance |
| 5 outlet, (5) 1/2 in hub cable entry, 1 form number |
| Copper Free Aluminum |
| Form 1 |
