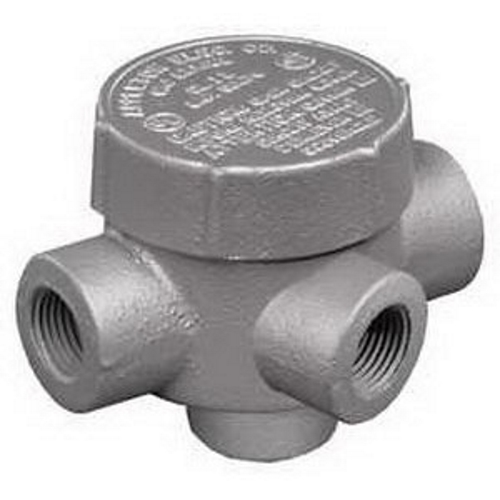

Appleton® GRJTA75 Unilets™ GRJ TA-Style Explosionproof Conduit Outlet Box, 3/4 in, 2.13 in Cover Opening, 7.3 cu-in
Custom_Product_Images_Illustration
Appleton® GRJTA75 Unilets™ GRJ TA-Style Explosionproof Conduit Outlet Box, 3/4 in, 2.13 in Cover Opening, 7.3 cu-in
SKU150077
MFGR #GRJTA75
Your Cost: $102.04/ea
Appleton Group™s explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Appleton Group™s explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Application For Use With Threaded Metal Conduit ARRA Compliant N Buy American Compliant N Cable Entry 0.75 Catalog Number GRJTA75 Country of Origin MX Cubic Capacity 7.3 CU-IN in³ Currency USD Depth 3/4 in Dimensions 2.88 in H x 2.88 in W x 2.06 in D EU RoHS Indicator C Gross Weight Per Pack 1.7600 lb Gross Weight per Pack Metric 0.80 Gross Weight UOM Metric kg Height 3.60 in Height [Metric] 9.1440 cm Length 4.40 in Length [Metric] 11.1760 cm Material Malleable Iron Number Of Outlet 4 Series GRJ Standard UL 886, UL File Number E10444, CSA 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III Standards UL 886UL File No. E10444CSA File No. 025875Class I, Div 1 and 2, Groups C, D, Class II, Div 1 and 2, Groups E, F, G, Class IIIRoHS Compliant Sub Brand UNILETS Suitable For Use With Threaded Metallic Conduit System Type Dust-Ignitionproof Explosionproof Raintight UNSPSC 39121308 UPC 11 78138144130 UPC 12 781381441308 Width 3.60 in Width [Metric] 9.1440 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 7.3 in³ Cover Opening Size 2.13 in Finish Triple Coated Size 3/4 in For Use With Threaded Metal Conduit Explosionproof, dust-ignitionproof, raintight; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with malleable iron cover; General purpose wiring; Externally threaded body with internally threaded cover; Small, round conduit outlet boxes; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity General purpose wiring Externally threaded body with internally threaded cover Small, round conduit outlet boxes Smooth, rounded integral bushing in each hub type box protects conductor insulation Complies with a wide range of classified area requirements Corrosion resistant For pulling of wires Connect conduit lengths and change direction of conduit runs Provide access for maintenance Chromate/epoxy powder coated/zinc electroplated finish Connect conduit lengths and change direction of conduit runs Provide access for maintenance Round back type Triple Coat (Zinc electro plated Chromate and Epoxy Powder Coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Metal Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Entry | 0.75 |
| Catalog Number | GRJTA75 |
| Country of Origin | MX |
| Cubic Capacity | 7.3 CU-IN in³ |
| Currency | USD |
| Depth | 3/4 in |
| Dimensions | 2.88 in H x 2.88 in W x 2.06 in D |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.7600 lb |
| Gross Weight per Pack Metric | 0.80 |
| Gross Weight UOM Metric | kg |
| Height | 3.60 in |
| Height [Metric] | 9.1440 cm |
| Length | 4.40 in |
| Length [Metric] | 11.1760 cm |
| Material | Malleable Iron |
| Number Of Outlet | 4 |
| Series | GRJ |
| Standard | UL 886, UL File Number E10444, CSA 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| Standards | UL 886UL File No. E10444CSA File No. 025875Class I, Div 1 and 2, Groups C, D, Class II, Div 1 and 2, Groups E, F, G, Class IIIRoHS Compliant |
| Sub Brand | UNILETS |
| Suitable For Use With | Threaded Metallic Conduit System |
| Type | Dust-Ignitionproof Explosionproof Raintight |
| UNSPSC | 39121308 |
| UPC 11 | 78138144130 |
| UPC 12 | 781381441308 |
| Width | 3.60 in |
| Width [Metric] | 9.1440 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 7.3 in³ |
| Cover Opening Size | 2.13 in |
| Finish | Triple Coated |
| Size | 3/4 in |
| For Use With Threaded Metal Conduit |
| Explosionproof, dust-ignitionproof, raintight; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with malleable iron cover; General purpose wiring; Externally threaded body with internally threaded cover; Small, round conduit outlet boxes; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock |
| Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity |
| General purpose wiring |
| Externally threaded body with internally threaded cover |
| Small, round conduit outlet boxes |
| Smooth, rounded integral bushing in each hub type box protects conductor insulation |
| Complies with a wide range of classified area requirements |
| Corrosion resistant |
| For pulling of wires |
| Connect conduit lengths and change direction of conduit runs |
| Provide access for maintenance |
| Chromate/epoxy powder coated/zinc electroplated finish |
| Connect conduit lengths and change direction of conduit runs |
| Provide access for maintenance |
| Round back type |
| Triple Coat (Zinc electro plated Chromate and Epoxy Powder Coated) |
