Appleton™

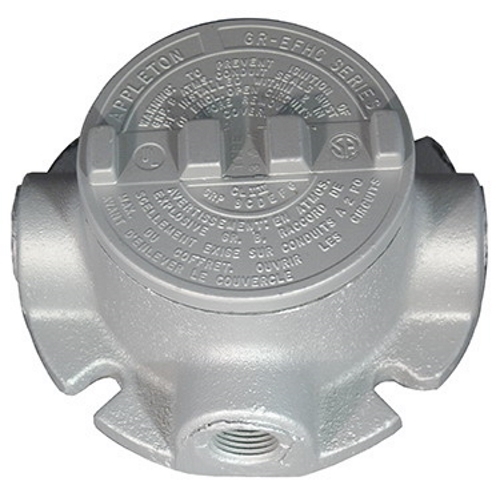

Appleton® GRFT50 Unilets™ GRF T-Style Explosionproof Conduit Outlet Box, 1/2 in, 3.38 in Cover Opening, 18 cu-in, Tri-Coated
Custom_Product_Images_Illustration
Appleton™
Appleton® GRFT50 Unilets™ GRF T-Style Explosionproof Conduit Outlet Box, 1/2 in, 3.38 in Cover Opening, 18 cu-in, Tri-Coated
SKU158075
MFGR #GRFT50
Your Cost: $111.96/ea
Appleton Group™s explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Appleton Group™s explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Application For Use With Threaded Metal Conduit ARRA Compliant N Buy American Compliant N Cable Entry 0.50 Catalog Number GRFT50 Country of Origin MX Cubic Capacity 18 CU-IN in³ Currency USD Depth 1/2 in Dimensions 5.38 in Dia x 2.75 in H EU RoHS Indicator C Gross Weight Per Pack 4.0300 lb Gross Weight per Pack Metric 1.83 Gross Weight UOM Metric kg Height 4.00 in Height [Metric] 10.1600 cm Length 6.50 in Length [Metric] 16.5100 cm Material Malleable Iron Mounting Type Flanged Number Of Outlet 3 Series GRF Standard Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III Standards Class 1, Zone 1 and 2 IIA and IIBUL File No. E10444CSA C22.2 No. 25/30CSA 013017, Class I, Div 1 and 2, Groups B, C, D Class II, Div 1 and 2, Groups E, F, G Class IIIRoHS Compliant Sub Brand UNILETS Suitable For Use With Threaded Metallic Conduit System Type T-Style Dust-Ignitionproof Explosionproof UNSPSC 39121308 UPC 11 78138143880 UPC 12 781381438803 Width 6.20 in Width [Metric] 15.7480 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 18 in³ Cover Opening Size 3.38 in Finish Triple Coated Size 1/2 in For Use With Threaded Metal Conduit Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance Boxes have integral mounting flange Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity General purpose wiring Function as sealing fittings when used with sealing covers Internally threaded body with externally threaded cover Covers have pry notches for bar or wrench Accommodate sealing, dome, hub and union hub covers and canopies Standard O-rings provide raintight fit Internal ground screw standard Smooth, rounded integral bushing in each hub type box protects conductor insulation Complies with a wide range of classified area requirements Corrosion resistant For pulling of wires Connect conduit lengths and change direction of conduit runs Provide access for maintenance Chromate/epoxy powder coated/zinc electroplated finish Triple Coat (Zinc electro plated Chromate and Epoxy Powder Coated) Form 1
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Metal Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Entry | 0.50 |
| Catalog Number | GRFT50 |
| Country of Origin | MX |
| Cubic Capacity | 18 CU-IN in³ |
| Currency | USD |
| Depth | 1/2 in |
| Dimensions | 5.38 in Dia x 2.75 in H |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 4.0300 lb |
| Gross Weight per Pack Metric | 1.83 |
| Gross Weight UOM Metric | kg |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Length | 6.50 in |
| Length [Metric] | 16.5100 cm |
| Material | Malleable Iron |
| Mounting Type | Flanged |
| Number Of Outlet | 3 |
| Series | GRF |
| Standard | Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III |
| Standards | Class 1, Zone 1 and 2 IIA and IIBUL File No. E10444CSA C22.2 No. 25/30CSA 013017, Class I, Div 1 and 2, Groups B, C, D Class II, Div 1 and 2, Groups E, F, G Class IIIRoHS Compliant |
| Sub Brand | UNILETS |
| Suitable For Use With | Threaded Metallic Conduit System |
| Type | T-Style Dust-Ignitionproof Explosionproof |
| UNSPSC | 39121308 |
| UPC 11 | 78138143880 |
| UPC 12 | 781381438803 |
| Width | 6.20 in |
| Width [Metric] | 15.7480 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 18 in³ |
| Cover Opening Size | 3.38 in |
| Finish | Triple Coated |
| Size | 1/2 in |
| For Use With Threaded Metal Conduit |
| Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Boxes have integral mounting flange |
| Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock |
| Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity |
| General purpose wiring |
| Function as sealing fittings when used with sealing covers |
| Internally threaded body with externally threaded cover |
| Covers have pry notches for bar or wrench |
| Accommodate sealing, dome, hub and union hub covers and canopies |
| Standard O-rings provide raintight fit |
| Internal ground screw standard |
| Smooth, rounded integral bushing in each hub type box protects conductor insulation |
| Complies with a wide range of classified area requirements |
| Corrosion resistant |
| For pulling of wires |
| Connect conduit lengths and change direction of conduit runs |
| Provide access for maintenance |
| Chromate/epoxy powder coated/zinc electroplated finish |
| Triple Coat (Zinc electro plated Chromate and Epoxy Powder Coated) |
| Form 1 |
