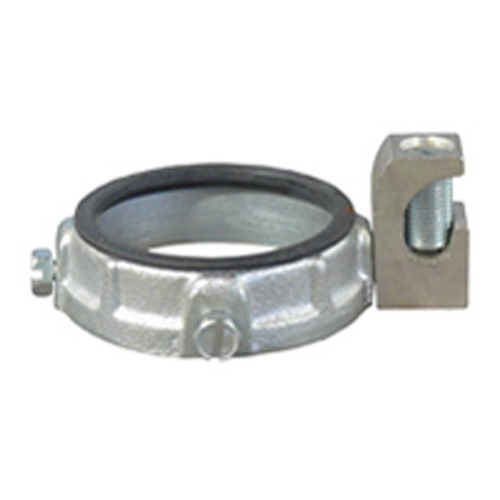

Appleton® GIB-600LS-25AC GIB-LS Ground Bushing With Aluminum Lug, 6 AWG to 250 kcmil AC Cable, 6 in Trade, Malleable Iron, Zinc Plated
Custom_Product_Images_Illustration
Appleton® GIB-600LS-25AC GIB-LS Ground Bushing With Aluminum Lug, 6 AWG to 250 kcmil AC Cable, 6 in Trade, Malleable Iron, Zinc Plated
SKU271496
MFGR #GIB600LS25AC
$/ea
Appleton® Ground Bushing
Appleton® Ground Bushing
Application For Use With Threaded Rigid Metal Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number GIB600LS25AC Country of Origin MX Currency USD Dimensions 7.25 in Dia x 1.31 in H EU RoHS Indicator C Gross Weight Per Pack 1.4200 lb Gross Weight per Pack Metric 0.64 Gross Weight UOM Metric kg Height 2.02 in Height [Metric] 5.1308 cm Insulated|Non~Insulated Insulated Length 8.40 in Length [Metric] 21.3360 cm Series GIB-LS-AC Size 6 IN in Standard UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1 Standards ARRA CompliantRoHS CompliantCSA C22.2 No.41NEMA FB-1UL 467 File No. E6581 Temperature Rating 302 °F Type Insulated Grounding Bushing With Aluminum Lay-In-Lug UNSPSC 39121312 UPC 11 78138109162 UPC 12 781381091626 Width 8.70 in Width [Metric] 22.0980 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton AC Cable Size 6 AWG to 250 kcmil Finish Zinc Electroplated Material Malleable Iron Trade Size 6 in For Use With Threaded Rigid Metal Conduit And IMC Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Provided with a steel, zinc plated set-screw allowing fitting to lock bushing in any desired position; Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors Provides a compact means of grounding conduit through an insulated bushing Can be used with a locknut to terminate conduit at an enclosure Lug used to connect bonding jumper to a neutral bus bar Insulating liner material is self extinguishing The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation Lugs not sold separately Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Rigid Metal Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | GIB600LS25AC |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.25 in Dia x 1.31 in H |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.4200 lb |
| Gross Weight per Pack Metric | 0.64 |
| Gross Weight UOM Metric | kg |
| Height | 2.02 in |
| Height [Metric] | 5.1308 cm |
| Insulated|Non~Insulated | Insulated |
| Length | 8.40 in |
| Length [Metric] | 21.3360 cm |
| Series | GIB-LS-AC |
| Size | 6 IN in |
| Standard | UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantCSA C22.2 No.41NEMA FB-1UL 467 File No. E6581 |
| Temperature Rating | 302 °F |
| Type | Insulated Grounding Bushing With Aluminum Lay-In-Lug |
| UNSPSC | 39121312 |
| UPC 11 | 78138109162 |
| UPC 12 | 781381091626 |
| Width | 8.70 in |
| Width [Metric] | 22.0980 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| AC Cable Size | 6 AWG to 250 kcmil |
| Finish | Zinc Electroplated |
| Material | Malleable Iron |
| Trade Size | 6 in |
| For Use With Threaded Rigid Metal Conduit And IMC |
| Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Provided with a steel, zinc plated set-screw allowing fitting to lock bushing in any desired position; Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors |
| Provides a compact means of grounding conduit through an insulated bushing |
| Can be used with a locknut to terminate conduit at an enclosure |
| Lug used to connect bonding jumper to a neutral bus bar |
| Insulating liner material is self extinguishing |
| The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation |
| Lugs not sold separately |
| Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position |
| Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors |
