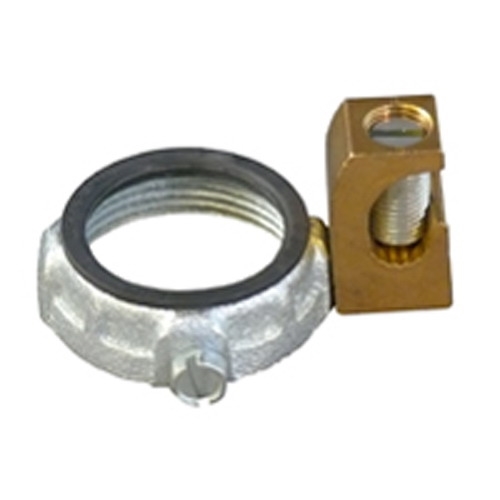

Appleton® GIB-200L-20BC GIB-L-BC Threaded Grounding Bushing, 14 to 2/0 AWG AC Cable, 2 in Trade, Malleable Iron, Electro-Plated Zinc
Conduit Bushings
744447
MFG #: GIB200L20BC
Appleton™
32.61000
/ ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
- Catalog URL - Appleton_SEHT_75_Brochure.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Line Drawing URL - 11043_GIB-50L-4LINE.jpg(Line Drawing URL)
- Line Drawing URL - GIB-50L-4LINE.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_AEC_MC007_SetScrew_Insulated_Ground_Bushings_RMC_IMC.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_AEC_MC007_SetScrew_Insulated_Ground_Bushings_RMC_IMC.pdf(Spec Sheet URL)
- Warranty 1 URL - IDW_O_Z_Gedney_CTC_0507_Warranty_1.pdf(Warranty 1 URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Use With Threaded Rigid Metal Conduit And IMC |
| Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Fasten and ground threaded rigid metal conduit to an enclosure |
| Zinc plated malleable iron body, zinc plated steel clamping and set screw, tin plated aluminum or bronze/bright dip grounding lug |
| Insulating liner material is self extinguishing |
| Tough plastic liner won't chip, crack, swell or shrink; resists corrosion, chemicals and temperature extremes |
| Low surface friction allows wires to be pulled with virtually no abrasion on the cable insulation |
| Provides a compact means of grounding conduit through an insulated bushing |
| Can be used with a locknut to terminate conduit at an enclosure |
| Lug used to connect bonding jumper to a neutral bus bar |
| Bronze Lay-In-Lug |
| Bright dip lug finish |
| 14 AWG Solid - 2/0 AWG Standard cable size |
