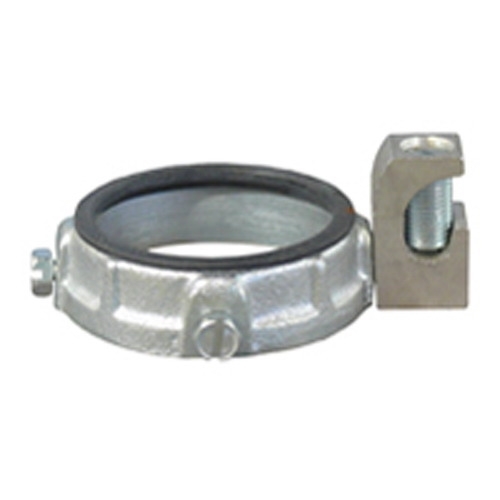

Appleton® GIB-100LS-20AC GIB-LS-AC Grounding Bushing, 14 to 2/0 AWG AC Cable, 1 in Trade, Malleable Iron, Electro-Plated Zinc
Conduit Bushings
266171
MFG #: GIB-100LS-20AC
Appleton™
16.47000
/ ea
- Catalog URL - Appleton_SEHT_75_Brochure.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Line Drawing URL - 11043_GIB-50L-4LINE.jpg(Line Drawing URL)
- Line Drawing URL - GIB-50L-4LINE.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet 1 URL - ID-SPE-v1-AEC_MC007_SetScrew_Insulated_Ground_Bushings_RMC_IMC.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11043_SPE_AEC_MC007_SetScrew_Insulated_Ground_Bushings_RMC_IMC.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_AEC_MC007_SetScrew_Insulated_Ground_Bushings_RMC_IMC.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Use With Threaded Rigid Metal Conduit And IMC |
| Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Provided with a steel, zinc plated set-screw allowing fitting to lock bushing in any desired position; Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors |
| Provides a compact means of grounding conduit through an insulated bushing |
| Can be used with a locknut to terminate conduit at an enclosure |
| Lug used to connect bonding jumper to a neutral bus bar |
| Insulating liner material is self extinguishing |
| The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation |
| Lugs not sold separately |
| Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position |
| Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors |
| Aluminum Lay-In-Lug |
| Tin plated lug finish |
| 14 AWG Solid - 2/0 AWG Standard cable size |
