Appleton® G-EFJB-30 EF Series Explosionproof Flood Light Fixture, 1 Incandescent Lamp, 400 W Fixture
Custom_Product_Images_Illustration

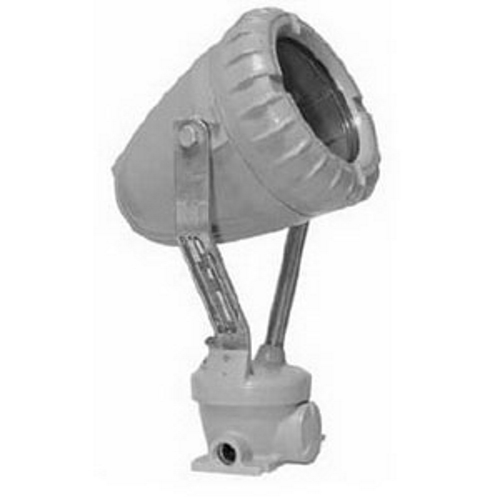

Appleton® G-EFJB-30 EF Series Explosionproof Flood Light Fixture, 1 Incandescent Lamp, 400 W Fixture
SKU210517
MFGR #GEFJB30
Your Cost: $3,217.18/ea
Appleton® Flood Light Fixture, Explosionproof, Series: EF Series, 400 W Fixture, Incandescent Lamp, 300 W Lamp, Medium Lamp Base, 1 Lamp, Glass Lens, 40000 Lumens, Slipfitter Mount, Aluminum Housing, Polyester Powder Coated Housing, 10-1/2 in L x 17-1/2 in H
Appleton® Flood Light Fixture, Explosionproof, Series: EF Series, 400 W Fixture, Incandescent Lamp, 300 W Lamp, Medium Lamp Base, 1 Lamp, Glass Lens, 40000 Lumens, Slipfitter Mount, Aluminum Housing, Polyester Powder Coated Housing, 10-1/2 in L x 17-1/2 in H
Application For 0.314 IN Conduit, Aircraft Service Areas, Oil And Gas Loading Docks, Distilleries ARRA Compliant N Base Medium Buy American Compliant N Catalog Number GEFJB30 Country of Origin MX Currency USD Dimensions 17-1/2 in H x 10-1/2 in W Enclosure Cast Aluminum EU RoHS Indicator N Fixture Type Flood Light Gross Weight Per Pack 21.9000 lb Gross Weight per Pack Metric 7.72 Gross Weight UOM Metric kg Height 13.00 in Height [Metric] 33.0200 cm Housing Material Aluminum Lamp Base Medium Lamp Wattage 300 W Length 24.00 in Length [Metric] 60.9600 cm Lens Type Impact Resistant Glass Mounting Yoke Mounting Type Yoke Number Of Lamps 1 Series EF Series Shape R40 Standard Class I, Group D Standards UL 1598844E-10794 Listed Type Explosionproof Permanent Base UNSPSC 39111611 UPC 11 78138142655 UPC 12 781381426558 Width 16.00 in Width [Metric] 40.6400 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Housing Finish Aluminum Enamel Lamp Type Incandescent For 0.314 IN Conduit, Aircraft Service Areas, Oil And Gas Loading Docks, Distilleries Permanent base; Floodlights feature rugged, lightweight cast aluminum construction and are factory wired and sealed; No external seals are required; Use medium-base 150 WTT PAR-38, R-40 or 300 WTT R40 reflector lamps; Terminal block has pressure terminal for connecting rubber covered cable to floodlight; Cable connector takes a 0.375 - 0.5 IN outside diameter cord; Permanent base model has explosionproof junction wiring chamber with 3/4 IN horizontal feed-through hubs; Vertical adjustment to 135 DEG; Horizontal to 345 DEG; High-strength aluminum alloy yoke; Aluminum enamel finished housing, yoke and wiring compartment; Thermal shock and impact resistant glass lens Floodlights feature rugged, lightweight cast aluminum construction Factory wired and sealed no external seals are required Choice of lamp types provides various distribution patterns Terminal block has pressure terminal for connecting rubber covered cable to floodlight Permanent base model has explosion proof junction wiring chamber with 19.1 mm (3/4 in) horizontal feed-thru hubs used for 8.0 mm (0.314) conduit Cast Aluminum housing Use medium base 150W PAR-38, R-40 or 300W R40 reflector lamps
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | For 0.314 IN Conduit, Aircraft Service Areas, Oil And Gas Loading Docks, Distilleries |
ARRA Compliant | N |
Base | Medium |
Buy American Compliant | N |
Catalog Number | GEFJB30 |
Country of Origin | MX |
Currency | USD |
Dimensions | 17-1/2 in H x 10-1/2 in W |
Enclosure | Cast Aluminum |
EU RoHS Indicator | N |
Fixture Type | Flood Light |
Gross Weight Per Pack | 21.9000 lb |
Gross Weight per Pack Metric | 7.72 |
Gross Weight UOM Metric | kg |
Height | 13.00 in |
Height [Metric] | 33.0200 cm |
Housing Material | Aluminum |
Lamp Base | Medium |
Lamp Wattage | 300 W |
Length | 24.00 in |
Length [Metric] | 60.9600 cm |
Lens Type | Impact Resistant Glass |
Mounting | Yoke |
Mounting Type | Yoke |
Number Of Lamps | 1 |
Series | EF Series |
Shape | R40 |
Standard | Class I, Group D |
Standards | UL 1598844E-10794 Listed |
Type | Explosionproof Permanent Base |
UNSPSC | 39111611 |
UPC 11 | 78138142655 |
UPC 12 | 781381426558 |
Width | 16.00 in |
Width [Metric] | 40.6400 cm |
Stock Status | NONSTOCK |
Brand | Appleton™ |
Manufacturer | Appleton |
Housing Finish | Aluminum Enamel |
Lamp Type | Incandescent |
For 0.314 IN Conduit, Aircraft Service Areas, Oil And Gas Loading Docks, Distilleries |
Permanent base; Floodlights feature rugged, lightweight cast aluminum construction and are factory wired and sealed; No external seals are required; Use medium-base 150 WTT PAR-38, R-40 or 300 WTT R40 reflector lamps; Terminal block has pressure terminal for connecting rubber covered cable to floodlight; Cable connector takes a 0.375 - 0.5 IN outside diameter cord; Permanent base model has explosionproof junction wiring chamber with 3/4 IN horizontal feed-through hubs; Vertical adjustment to 135 DEG; Horizontal to 345 DEG; High-strength aluminum alloy yoke; Aluminum enamel finished housing, yoke and wiring compartment; Thermal shock and impact resistant glass lens |
Floodlights feature rugged, lightweight cast aluminum construction |
Factory wired and sealed no external seals are required |
Choice of lamp types provides various distribution patterns |
Terminal block has pressure terminal for connecting rubber covered cable to floodlight |
Permanent base model has explosion proof junction wiring chamber with 19.1 mm (3/4 in) horizontal feed-thru hubs used for 8.0 mm (0.314) conduit |
Cast Aluminum housing |
Use medium base 150W PAR-38, R-40 or 300W R40 reflector lamps |
