Appleton™

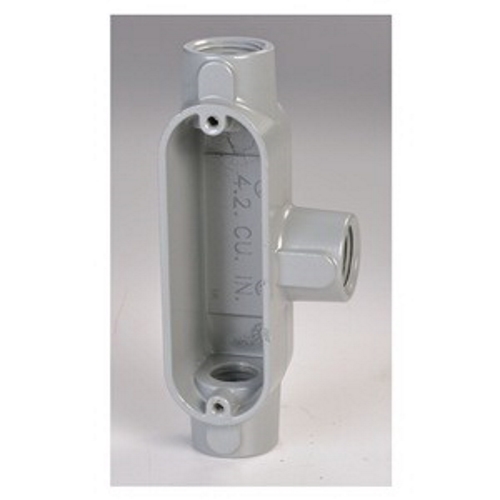

Appleton® Form 85™ Unilets™ T50T-A Type T Conduit Outlet Body, 1/2 in Hub, Form 85, 4 cu-in, Aluminum
Custom_Product_Images_Illustration
Appleton™
Appleton® Form 85™ Unilets™ T50T-A Type T Conduit Outlet Body, 1/2 in Hub, Form 85, 4 cu-in, Aluminum
SKU347328
MFGR #T50TA
Your Cost: $29.23/ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Application For Use With EMT ARRA Compliant N Buy American Compliant N Catalog Number T50TA Connection Set-Screw Connection Type Set Screw Country of Origin IN Currency USD Dimensions 4.75 in L x 1.38 in H Enclosure NEMA FB-1 EU RoHS Indicator N Gross Weight Per Pack 0.3300 lb Gross Weight per Pack Metric 0.15 Gross Weight UOM Metric kg Height 0.46 in Height [Metric] 11.6840 mm Length 7.00 in Length [Metric] 17.7800 cm Mounting Type Surface Number of Hubs 3 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards UL 514A/514B/E2527CSA C22.2 No. 18.3/065183 Sub Brand UNILETS Type Type T UNSPSC 39131708 UPC 11 78138168695 UPC 12 781381686952 Width 5.60 in Width [Metric] 14.2240 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 4 in³ Finish Epoxy Powder Coated Form 85 Hub Size 1/2 in Material Pressure Cast Aluminum For Use With EMT Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Set screw type has slotted hex head steel hardened cup-point set screw for EMT; Wiring capacity: 4 CU-IN as per NEC 314.16(A) Serve as pulling fittings Make bends in conduit system Provide openings for splicing, connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Roomy interiors, more wiring space Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Form 85™ copper free aluminum Unilets™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance Lightweight aluminum facilitates shipping, handling and installing Sizes with flat-back design ideal where fitting is mounted flat against surface Internal volume and maximum wire capacity clearly marked on castings Set screw type has slotted hex head steel hardened cup-point set screw for EMT Pressure Cast Aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With EMT |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | T50TA |
| Connection | Set-Screw |
| Connection Type | Set Screw |
| Country of Origin | IN |
| Currency | USD |
| Dimensions | 4.75 in L x 1.38 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.3300 lb |
| Gross Weight per Pack Metric | 0.15 |
| Gross Weight UOM Metric | kg |
| Height | 0.46 in |
| Height [Metric] | 11.6840 mm |
| Length | 7.00 in |
| Length [Metric] | 17.7800 cm |
| Mounting Type | Surface |
| Number of Hubs | 3 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | UL 514A/514B/E2527CSA C22.2 No. 18.3/065183 |
| Sub Brand | UNILETS |
| Type | Type T |
| UNSPSC | 39131708 |
| UPC 11 | 78138168695 |
| UPC 12 | 781381686952 |
| Width | 5.60 in |
| Width [Metric] | 14.2240 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 4 in³ |
| Finish | Epoxy Powder Coated |
| Form | 85 |
| Hub Size | 1/2 in |
| Material | Pressure Cast Aluminum |
| For Use With EMT |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Set screw type has slotted hex head steel hardened cup-point set screw for EMT; Wiring capacity: 4 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing, connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Roomy interiors, more wiring space |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Form 85™ copper free aluminum Unilets™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance |
| Lightweight aluminum facilitates shipping, handling and installing |
| Sizes with flat-back design ideal where fitting is mounted flat against surface |
| Internal volume and maximum wire capacity clearly marked on castings |
| Set screw type has slotted hex head steel hardened cup-point set screw for EMT |
| Pressure Cast Aluminum |
