Appleton™

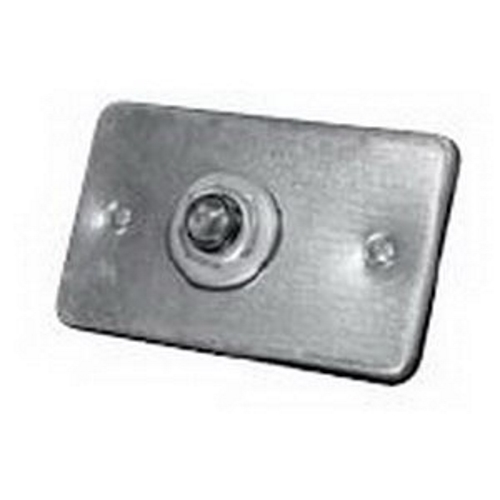

Appleton® FSKAPC247D2 FSK Device Box Cover With Stainless Steel Screws, Aluminum
Custom_Product_Images_Illustration
Appleton™
Appleton® FSKAPC247D2 FSK Device Box Cover With Stainless Steel Screws, Aluminum
SKUPDW~2744146
MFGR #FSKAPC247D2
Your Cost: $595.74/ea
Cast device boxes from Appleton Group incorporate several innovative and useful features. Ridge top construction creates a positive seal against moisture when the cover and gasket are tightened against the body. Wet location receptacle covers provide a gasket that sets around the plug to seal out moisture even when the receptacle is in use. Captive stainless steel screws simplify installation and prevent freezing. Hub and cover options meet virtually any requirement. Whatever size box you need, we're your source.
Cast device boxes from Appleton Group incorporate several innovative and useful features. Ridge top construction creates a positive seal against moisture when the cover and gasket are tightened against the body. Wet location receptacle covers provide a gasket that sets around the plug to seal out moisture even when the receptacle is in use. Captive stainless steel screws simplify installation and prevent freezing. Hub and cover options meet virtually any requirement. Whatever size box you need, we're your source.
Application For Use With FS/FD Box, Mercmaster III - Low Profile, Mercmaster III, And Mercmaster III - 400 Series Luminaires ARRA Compliant C Buy American Compliant N Catalog Number FSKAPC247D2 Color Gray Country of Origin MX Currency USD EU RoHS Indicator C Finish Epoxy Powder Coated Gross Weight Per Pack 0.5600 lb Gross Weight per Pack Metric 0.25 Gross Weight UOM Metric kg Height 4.00 in Height [Metric] 10.1600 cm Length [Metric] 17.7800 cm Standard Class I, Division 2, Groups A, B, C, D; NEMA 4X; UL Listed: 1604, C/US UL Listed Standards ARRA CompliantRoHS CompliantUL 514A E2527CSA 001472 C22.2 No. 18.1NEMA FB-1 Sub Brand Mercmaster III Type PCD2 Series Photocontrol UNSPSC 39121315 UPC 11 78138109093 UPC 12 781381090933 Width [Metric] 15.2400 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Length 7.00 in Material Aluminum Width 6.00 in For Use With FS/FD Box, Mercmaster III - Low Profile, Mercmaster III, And Mercmaster III - 400 Series Luminaires Factory sealed design eliminates the need for an explosionproof enclosure; Can be easily installed in the field; solid-state design for performance and reliability; Minimum time delay 15 S to eliminate nuisance tripping; Will fit through standard 1/2 IN knockout; Supplied with two stainless steel screws; Encapsulated photocontrol provides automatic dusk-to-dawn lighting control Covers have captive stainless steel screws to speed installation, prevents loss of screws Cover tightens on largest perimeter of gasket and fits snugly against portion of gasket that wraps around ridge top of box Less gasket Copper-Free Aluminum material Ridge Top construction
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With FS/FD Box, Mercmaster III - Low Profile, Mercmaster III, And Mercmaster III - 400 Series Luminaires |
| ARRA Compliant | C |
| Buy American Compliant | N |
| Catalog Number | FSKAPC247D2 |
| Color | Gray |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Epoxy Powder Coated |
| Gross Weight Per Pack | 0.5600 lb |
| Gross Weight per Pack Metric | 0.25 |
| Gross Weight UOM Metric | kg |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Length [Metric] | 17.7800 cm |
| Standard | Class I, Division 2, Groups A, B, C, D; NEMA 4X; UL Listed: 1604, C/US UL Listed |
| Standards | ARRA CompliantRoHS CompliantUL 514A E2527CSA 001472 C22.2 No. 18.1NEMA FB-1 |
| Sub Brand | Mercmaster III |
| Type | PCD2 Series Photocontrol |
| UNSPSC | 39121315 |
| UPC 11 | 78138109093 |
| UPC 12 | 781381090933 |
| Width [Metric] | 15.2400 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Length | 7.00 in |
| Material | Aluminum |
| Width | 6.00 in |
| For Use With FS/FD Box, Mercmaster III - Low Profile, Mercmaster III, And Mercmaster III - 400 Series Luminaires |
| Factory sealed design eliminates the need for an explosionproof enclosure; Can be easily installed in the field; solid-state design for performance and reliability; Minimum time delay 15 S to eliminate nuisance tripping; Will fit through standard 1/2 IN knockout; Supplied with two stainless steel screws; Encapsulated photocontrol provides automatic dusk-to-dawn lighting control |
| Covers have captive stainless steel screws to speed installation, prevents loss of screws |
| Cover tightens on largest perimeter of gasket and fits snugly against portion of gasket that wraps around ridge top of box |
| Less gasket |
| Copper-Free Aluminum material |
| Ridge Top construction |
