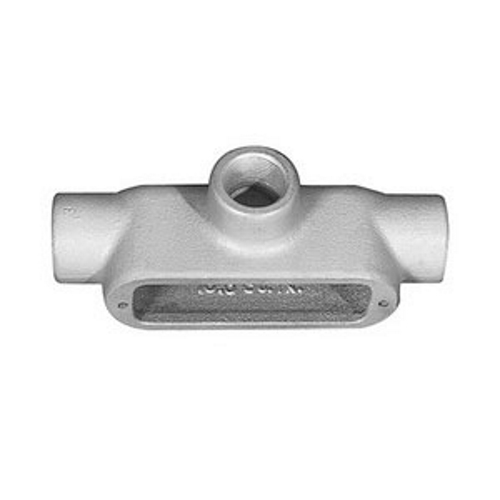

Appleton® FM8™ Unilets™ T38 Type T Conduit Outlet Body, 1 in Hub, Form 8, 15.5 cu-in, Grayloy-Iron, Tri-Coated
Custom_Product_Images_Illustration
Appleton® FM8™ Unilets™ T38 Type T Conduit Outlet Body, 1 in Hub, Form 8, 15.5 cu-in, Grayloy-Iron, Tri-Coated
SKU375130
MFGR #T38
Your Cost: $57.09/ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality componets you need.
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality componets you need.
Application For Use With Rigid Steel Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number T38 Color Gray Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 7.56 in L x 2.78 in W x 2.28 in H Enclosure NEMA FB-1 EU RoHS Indicator N Gross Weight Per Pack 2.7400 lb Gross Weight per Pack Metric 1.24 Gross Weight UOM Metric kg Height 1.70 in Height [Metric] 4.3180 cm Length 8.30 in Length [Metric] 21.0820 cm Number of Hubs 3 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards UL 514A, 514B, E2527 Listed, CSA C22.2 NO 18.3 Certified, CSA 065183 Certified Sub Brand UNILETS Type Type T UNSPSC 39131708 UPC 11 78138174433 UPC 12 781381744331 Width 5.40 in Width [Metric] 13.7160 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 15.5 in³ Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Form 8 Hub Size 1 in Material Grayloy Iron For Use With Rigid Steel Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers; Equivalent FM8 and Form 8 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Wiring capacity: 15.5 CU-IN as per NEC 314.16(A) Serve as pulling fittings Make bends in conduit system Provide openings for splicing, connect and change direction of conduit runs Connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers Equivalent FM8™ and Form 8 units have identical applications and installation dimensions Flat back design provides greater cubic content for easier wire pulling and more room for splicing Fits flush and snug against flat surfaces for more stable installation Covers with gaskets are approved for use in wet locations Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | T38 |
| Color | Gray |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.56 in L x 2.78 in W x 2.28 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 2.7400 lb |
| Gross Weight per Pack Metric | 1.24 |
| Gross Weight UOM Metric | kg |
| Height | 1.70 in |
| Height [Metric] | 4.3180 cm |
| Length | 8.30 in |
| Length [Metric] | 21.0820 cm |
| Number of Hubs | 3 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | UL 514A, 514B, E2527 Listed, CSA C22.2 NO 18.3 Certified, CSA 065183 Certified |
| Sub Brand | UNILETS |
| Type | Type T |
| UNSPSC | 39131708 |
| UPC 11 | 78138174433 |
| UPC 12 | 781381744331 |
| Width | 5.40 in |
| Width [Metric] | 13.7160 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 15.5 in³ |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | 8 |
| Hub Size | 1 in |
| Material | Grayloy Iron |
| For Use With Rigid Steel Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers; Equivalent FM8 and Form 8 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Wiring capacity: 15.5 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing, connect and change direction of conduit runs |
| Connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers |
| Equivalent FM8™ and Form 8 units have identical applications and installation dimensions |
| Flat back design provides greater cubic content for easier wire pulling and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Covers with gaskets are approved for use in wet locations |
| Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining |
| Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) |
