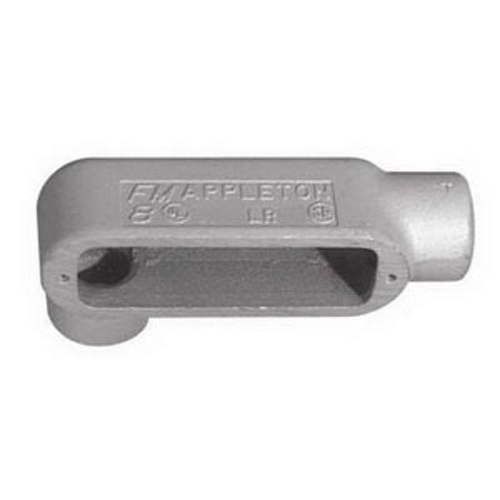

Appleton® FM8™ Unilet® LR58 Type LR Conduit Body, 1-1/2 in Hub, 8, 42.5 cu-in, Iron, Tri-Coated
Custom_Product_Images_Illustration
Appleton® FM8™ Unilet® LR58 Type LR Conduit Body, 1-1/2 in Hub, 8, 42.5 cu-in, Iron, Tri-Coated
SKU367172
MFGR #LR58
Your Cost: $95.13/ea
FM8 Unilet conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
FM8 Unilet conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Application For Use With Rigid Steel Conduit And IMC ARRA Compliant N Buy American Compliant N Catalog Number LR58 Color Gray Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 9.13 in L x 4.03 in W x 4.03 in H Enclosure NEMA FB-1 EU RoHS Indicator N Gross Weight Per Pack 5.1500 lb Gross Weight per Pack Metric 2.34 Gross Weight UOM Metric kg Height 4.30 in Height [Metric] 10.9220 cm Length 11.90 in Length [Metric] 30.2260 cm Mounting Type Surface Number of Hubs 2 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards UL 514A/514B/E2527CSA C22.2 No. 18.3/065183 Sub Brand UNILETS Type Type LR UNSPSC 39131708 UPC 11 78138174426 UPC 12 781381744263 Width 5.10 in Width [Metric] 12.9540 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 42.5 in³ Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Form 8 Hub Size 1-1/2 in Material Grayloy Iron For Use With Rigid Steel Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers; Equivalent FM8 and Form 8 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Wiring capacity: 42.5 CU-IN as per NEC 314.16(A) Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Completely interchangeable with Crouse-Hinds Form 8™ bodies, gaskets and covers Flat back design provides greater cubic content for easier wire pulling, and more room for splicing Fits flush and snug against flat surfaces for more stable installation Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining Serve as pulling fittings make bends in conduit system, provide openings for splicing, connect and change direction of conduit runs, allow connections for branch runs, permit access to conductors for maintenance Allow connections for branch runs, permit access to conductors for maintenance For use with rigid steel, rigid aluminum and IMC conduit Equivalent FM8™ and Form 8™ units have identical applications and installation dimensions Right side access opening 90 deg hub location Tapered FNPT connection Triple coated (zinc electroplated, chromate and epoxy powder coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LR58 |
| Color | Gray |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 9.13 in L x 4.03 in W x 4.03 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 5.1500 lb |
| Gross Weight per Pack Metric | 2.34 |
| Gross Weight UOM Metric | kg |
| Height | 4.30 in |
| Height [Metric] | 10.9220 cm |
| Length | 11.90 in |
| Length [Metric] | 30.2260 cm |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | UL 514A/514B/E2527CSA C22.2 No. 18.3/065183 |
| Sub Brand | UNILETS |
| Type | Type LR |
| UNSPSC | 39131708 |
| UPC 11 | 78138174426 |
| UPC 12 | 781381744263 |
| Width | 5.10 in |
| Width [Metric] | 12.9540 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 42.5 in³ |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | 8 |
| Hub Size | 1-1/2 in |
| Material | Grayloy Iron |
| For Use With Rigid Steel Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers; Equivalent FM8 and Form 8 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Wiring capacity: 42.5 CU-IN as per NEC 314.16(A) |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Completely interchangeable with Crouse-Hinds Form 8™ bodies, gaskets and covers |
| Flat back design provides greater cubic content for easier wire pulling, and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining |
| Serve as pulling fittings make bends in conduit system, provide openings for splicing, connect and change direction of conduit runs, allow connections for branch runs, permit access to conductors for maintenance |
| Allow connections for branch runs, permit access to conductors for maintenance |
| For use with rigid steel, rigid aluminum and IMC conduit |
| Equivalent FM8™ and Form 8™ units have identical applications and installation dimensions |
| Right side access opening |
| 90 deg hub location |
| Tapered FNPT connection |
| Triple coated (zinc electroplated, chromate and epoxy powder coated) |
