Appleton™

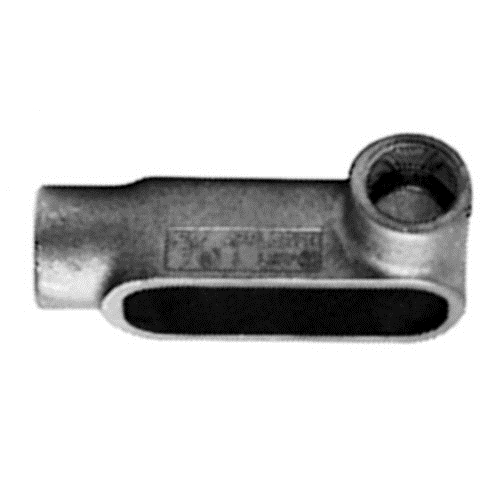

Appleton® FM7™ Unilet® LR37SA Type LR Conduit Outlet Body, 1 in Hub, 7, 11 cu-in, Aluminum, Epoxy Powder Coated
Custom_Product_Images_Illustration
Appleton™
Appleton® FM7™ Unilet® LR37SA Type LR Conduit Outlet Body, 1 in Hub, 7, 11 cu-in, Aluminum, Epoxy Powder Coated
SKU941051
MFGR #APPLR37SA
Your Cost: $48.31/ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC ARRA Compliant N Buy American Compliant C Catalog Number APPLR37SA Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 6 in L x 2.75 in W x 2.88 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 0.6700 lb Gross Weight per Pack Metric 0.30 Gross Weight UOM Metric kg Height 0.38 in Height [Metric] 9.5250 mm Item Group 0130A Item Group 2 013 Length 13.50 in Length [Metric] 34.2900 cm Mounting Type Surface Number of Hubs 2 Returnable Y Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 Sub Brand UNILETS Type Type LR Conduit Outlet Body UNSPSC 39131708 UPC 11 78138160092 UPC 12 781381600927 Width 9.80 in Width [Metric] 24.8920 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 11 in³ Finish Epoxy Powder Coated Form 7 Hub Size 1 in Material Aluminum For Use With Rigid Steel, Rigid Aluminum Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 11 CU-IN as per NEC 314.16(A) Serve as pulling fittings Make bends in conduit system Provide openings for splicing, connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Completely interchangeable with Crouse-Hinds Form 7™ bodies, gaskets and covers Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions Flat back design provides greater cubic content for easier wire pulling and more room for splicing Fits flush and snug against flat surfaces for more stable installation Smooth hub openings allow easy conduit joining Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body Tapered FNPT connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | C |
| Catalog Number | APPLR37SA |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6 in L x 2.75 in W x 2.88 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.6700 lb |
| Gross Weight per Pack Metric | 0.30 |
| Gross Weight UOM Metric | kg |
| Height | 0.38 in |
| Height [Metric] | 9.5250 mm |
| Item Group | 0130A |
| Item Group 2 | 013 |
| Length | 13.50 in |
| Length [Metric] | 34.2900 cm |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Returnable | Y |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 |
| Sub Brand | UNILETS |
| Type | Type LR Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC 11 | 78138160092 |
| UPC 12 | 781381600927 |
| Width | 9.80 in |
| Width [Metric] | 24.8920 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 11 in³ |
| Finish | Epoxy Powder Coated |
| Form | 7 |
| Hub Size | 1 in |
| Material | Aluminum |
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 11 CU-IN as per NEC 314.16(A) |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing, connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Completely interchangeable with Crouse-Hinds Form 7™ bodies, gaskets and covers |
| Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions |
| Flat back design provides greater cubic content for easier wire pulling and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Smooth hub openings allow easy conduit joining |
| Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
| Tapered FNPT connection |
