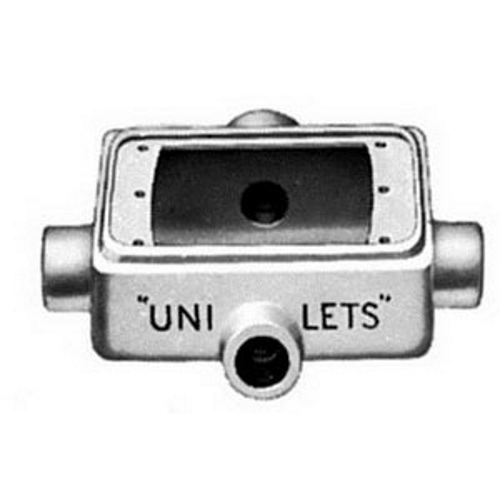

Appleton® FDX150 UNILETS™ FDX-1-50 Type FDX Device Box, Malleable Iron, 25 cu-in, 1 Gangs, 4 Outlets
Custom_Product_Images_Illustration
Appleton® FDX150 UNILETS™ FDX-1-50 Type FDX Device Box, Malleable Iron, 25 cu-in, 1 Gangs, 4 Outlets
SKU280389
MFGR #FDX150
Your Cost: $69.00/ea
Appleton® UNILETS™ Device Box, Type FDX, 4 Outlets, 1 Gang, 1/2 in Hub, Tapered Threaded Hub, Hub Cable Entry, Deep, NEMA FB-1, 25 cu-in, Malleable Iron, Tri-Coated, 4.56 in L x 2.81 in W x 2.69 in D
Appleton® UNILETS™ Device Box, Type FDX, 4 Outlets, 1 Gang, 1/2 in Hub, Tapered Threaded Hub, Hub Cable Entry, Deep, NEMA FB-1, 25 cu-in, Malleable Iron, Tri-Coated, 4.56 in L x 2.81 in W x 2.69 in D
Application For Use With Threaded Metal Conduit And IMC ARRA Compliant N Buy American Compliant C Cable Entry 0.50 Catalog Number FDX150 Country of Origin MX Cubic Capacity 25 CU-IN in³ Currency USD Enclosure Type NEMA FB-1 EU RoHS Indicator C Finish Tri-Coated Gross Weight Per Pack 3.2000 lb Gross Weight per Pack Metric 1.45 Gross Weight UOM Metric kg Height 3.60 in Height [Metric] 9.1440 cm Hub Size 1/2 in Hub Style Tapered Threaded Length 6.80 in Length [Metric] 17.2720 cm Mounting Type Lug Number Of Outlet 4 Size 1/2 IN in Standard UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 Standards UL 514A File No. E2527CSA C22.2 No. 18.1CSA 001472NEMA FB-1 Sub Brand UNILETS Type Type FDX Deep UNSPSC 39121315 UPC 11 78138133855 UPC 12 781381338554 Width 5.10 in Width [Metric] 12.9540 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 25 in³ Dimensions 4.56 in L x 2.81 in W x 2.69 in D Material Malleable Iron Number of Gangs 1 Number of Outlets 4 For Use With Threaded Metal Conduit And IMC Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; Corrosion-resistant ideal for indoor and outdoor installations Weatherproof, raintight and dust tight when used with cast gasketed covers FS and FD boxes take standard flush wiring devices FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity Complete selection of covers, receptacles, plugs, gaskets and accessories Covers have captive stainless steel screws to speed installation, prevents loss of screws Internal grounding screws standard Smooth, rounded integral bushing in each hub protects conductor insulation Malleable iron cover, stainless steel screws, neoprene gaskets (4) 1/2 in threaded hub Zinc electroplated/chromate/epoxy powder coated finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Metal Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | C |
| Cable Entry | 0.50 |
| Catalog Number | FDX150 |
| Country of Origin | MX |
| Cubic Capacity | 25 CU-IN in³ |
| Currency | USD |
| Enclosure Type | NEMA FB-1 |
| EU RoHS Indicator | C |
| Finish | Tri-Coated |
| Gross Weight Per Pack | 3.2000 lb |
| Gross Weight per Pack Metric | 1.45 |
| Gross Weight UOM Metric | kg |
| Height | 3.60 in |
| Height [Metric] | 9.1440 cm |
| Hub Size | 1/2 in |
| Hub Style | Tapered Threaded |
| Length | 6.80 in |
| Length [Metric] | 17.2720 cm |
| Mounting Type | Lug |
| Number Of Outlet | 4 |
| Size | 1/2 IN in |
| Standard | UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 |
| Standards | UL 514A File No. E2527CSA C22.2 No. 18.1CSA 001472NEMA FB-1 |
| Sub Brand | UNILETS |
| Type | Type FDX Deep |
| UNSPSC | 39121315 |
| UPC 11 | 78138133855 |
| UPC 12 | 781381338554 |
| Width | 5.10 in |
| Width [Metric] | 12.9540 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 25 in³ |
| Dimensions | 4.56 in L x 2.81 in W x 2.69 in D |
| Material | Malleable Iron |
| Number of Gangs | 1 |
| Number of Outlets | 4 |
| For Use With Threaded Metal Conduit And IMC |
| Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; |
| Corrosion-resistant ideal for indoor and outdoor installations |
| Weatherproof, raintight and dust tight when used with cast gasketed covers |
| FS and FD boxes take standard flush wiring devices |
| FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears |
| Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock |
| Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit |
| Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity |
| Complete selection of covers, receptacles, plugs, gaskets and accessories |
| Covers have captive stainless steel screws to speed installation, prevents loss of screws |
| Internal grounding screws standard |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Malleable iron cover, stainless steel screws, neoprene gaskets |
| (4) 1/2 in threaded hub |
| Zinc electroplated/chromate/epoxy powder coated finish |
