Appleton™

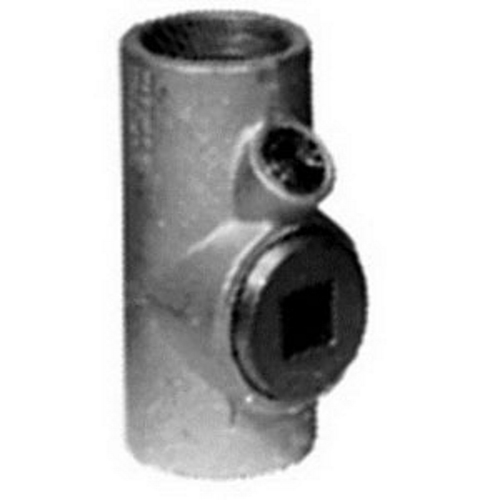

Appleton® EYSF200 Unilet® EYS Explosionproof Conduit Sealing Fitting, 2 in, For Use With IMC/Threaded Rigid Metal Conduit
Custom_Product_Images_Illustration
Appleton™
Appleton® EYSF200 Unilet® EYS Explosionproof Conduit Sealing Fitting, 2 in, For Use With IMC/Threaded Rigid Metal Conduit
SKU17283
MFGR #EYSF200
Your Cost: $119.66/ea
These Appleton sealing fittings minimize the passage of gases and vapors and prevent the passage of flames from one portion of a conduit system to another. They prevent pressure piling within conduit system and contain any explosion that occurs. The EYS series is used for sealing vertical conduit, and provides a large opening for damming and filling.
These Appleton sealing fittings minimize the passage of gases and vapors and prevent the passage of flames from one portion of a conduit system to another. They prevent pressure piling within conduit system and contain any explosion that occurs. The EYS series is used for sealing vertical conduit, and provides a large opening for damming and filling.
Application For Use With Threaded Rigid Metal Conduit And IMC ARRA Compliant N Buy American Compliant N Catalog Number EYSF200 Connection Tapered FNPT Country of Origin MX Currency USD Dimensions 6.25 in L x 2.94 in W EU RoHS Indicator C Gross Weight Per Pack 2.4400 lb Gross Weight per Pack Metric 1.11 Gross Weight UOM Metric kg Height 1.50 in Height [Metric] 3.8100 cm Length 17.80 in Length [Metric] 45.2120 cm Series EYS Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181 Standards UL 1203 File No. E10444CSA C22.2 No. 30CSA 065181RoHS Compliant Sub Brand UNILETS Type Dust-Ignitionproof Explosionproof Raintight UNSPSC 39121311 UPC 11 78138133096 UPC 12 781381330961 Width 8.50 in Width [Metric] 21.5900 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Material Malleable Iron Size 2 in Suitable For Use With IMC/Threaded Rigid Metallic Conduit For Use With Threaded Rigid Metal Conduit and IMC For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; F Smooth, rounded integral bushing in each hub to protect conductor insulation Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub Large opening for damming and filling Restrict any explosion to the sealed off enclosure Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations Tapered FNPT connection 25% fill vertical conduit sealing fittings Chromate/epoxy powder coated/zinc electroplated finish 25% fill vertical conduit sealing fittings Triple-Coat (Zinc Electroplate, Chromate And epoxy Powder Coat) finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Rigid Metal Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EYSF200 |
| Connection | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.25 in L x 2.94 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 2.4400 lb |
| Gross Weight per Pack Metric | 1.11 |
| Gross Weight UOM Metric | kg |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Length | 17.80 in |
| Length [Metric] | 45.2120 cm |
| Series | EYS |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181 |
| Standards | UL 1203 File No. E10444CSA C22.2 No. 30CSA 065181RoHS Compliant |
| Sub Brand | UNILETS |
| Type | Dust-Ignitionproof Explosionproof Raintight |
| UNSPSC | 39121311 |
| UPC 11 | 78138133096 |
| UPC 12 | 781381330961 |
| Width | 8.50 in |
| Width [Metric] | 21.5900 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Material | Malleable Iron |
| Size | 2 in |
| Suitable For Use With | IMC/Threaded Rigid Metallic Conduit |
| For Use With Threaded Rigid Metal Conduit and IMC |
| For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; F |
| Smooth, rounded integral bushing in each hub to protect conductor insulation |
| Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity |
| Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub |
| Large opening for damming and filling |
| Restrict any explosion to the sealed off enclosure |
| Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures |
| Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps |
| Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location |
| Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure |
| Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations |
| Tapered FNPT connection |
| 25% fill vertical conduit sealing fittings |
| Chromate/epoxy powder coated/zinc electroplated finish |
| 25% fill vertical conduit sealing fittings |
| Triple-Coat (Zinc Electroplate, Chromate And epoxy Powder Coat) finish |
