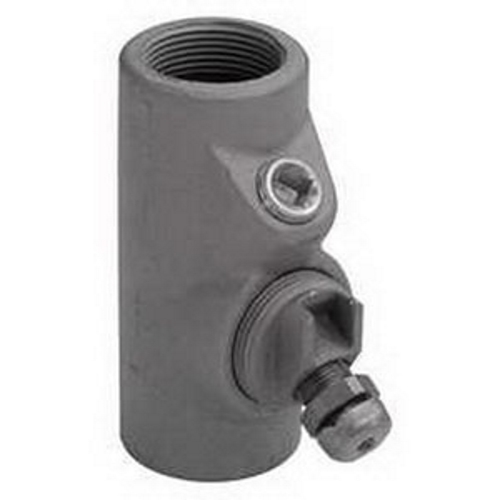

Appleton® EYD6 Unilet® EYD Explosionproof Conduit Sealing Fitting, 2 in, For Use With IMC/Threaded Rigid Metal Conduit
Custom_Product_Images_Illustration
Appleton® EYD6 Unilet® EYD Explosionproof Conduit Sealing Fitting, 2 in, For Use With IMC/Threaded Rigid Metal Conduit
SKU254686
MFGR #EYD6
Your Cost: $144.44/ea
These Appleton sealing fittings minimizes the passage of gases and vapors and prevents the passage of flames from one portion of a conduit system to another. They prevent pressure piling the within conduit system and contain any explosion that occurs.
These Appleton sealing fittings minimizes the passage of gases and vapors and prevents the passage of flames from one portion of a conduit system to another. They prevent pressure piling the within conduit system and contain any explosion that occurs.
Application For Use With Threaded Rigid Metal Conduit And IMC ARRA Compliant N Buy American Compliant N Catalog Number EYD6 Color Gray Connection Tapered FNPT Country of Origin MX Currency USD EU RoHS Indicator C Gross Weight Per Pack 6.3000 lb Gross Weight per Pack Metric 2.15 Gross Weight UOM Metric kg Height 3.60 in Height [Metric] 9.1440 cm Length 7.50 in Length [Metric] 19.0500 cm Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 1 And 2 Groups C, D, Class II, Division 1 And 2 Groups E, F, G, Class III Standards UL 886 (1203), File No. E10444, CSA C22.2 No. 30, File No. 065181, Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III NEC/CEC Certified Sub Brand UNILETS Type EYD Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting UNSPSC 39121311 UPC 11 78138162081 UPC 12 781381620819 Width 4.60 in Width [Metric] 11.6840 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Material Grayloy-Iron Size 2 in For Use With Threaded Rigid Metal Conduit and IMC For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; U Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and ground continuity Dust-ignition proof, raintight Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub Close radius type for sealing vertical conduit runs Restrict any explosion to the sealed off enclosure Required in class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures Required in class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps Required in class I, Division 1 and 2 locations at the boundary where conduit leaves classified location Required in class I, Division 1 and 2 locations where two or more enclosures are connected by 36 or less conduit, seal must be located within 18 in of either enclosure Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in class I, Division 2locations 2.31 in turning radius Tapered FNPT connection 25% fill vertical conduit drain sealing fittings Triple-coat (Zinc electroplate, chromate and epoxy powder coat) finish Access cover has drain valve for automatic draining of water accumulation above the sea
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Rigid Metal Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EYD6 |
| Color | Gray |
| Connection | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 6.3000 lb |
| Gross Weight per Pack Metric | 2.15 |
| Gross Weight UOM Metric | kg |
| Height | 3.60 in |
| Height [Metric] | 9.1440 cm |
| Length | 7.50 in |
| Length [Metric] | 19.0500 cm |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 1 And 2 Groups C, D, Class II, Division 1 And 2 Groups E, F, G, Class III |
| Standards | UL 886 (1203), File No. E10444, CSA C22.2 No. 30, File No. 065181, Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III NEC/CEC Certified |
| Sub Brand | UNILETS |
| Type | EYD Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting |
| UNSPSC | 39121311 |
| UPC 11 | 78138162081 |
| UPC 12 | 781381620819 |
| Width | 4.60 in |
| Width [Metric] | 11.6840 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Material | Grayloy-Iron |
| Size | 2 in |
| For Use With Threaded Rigid Metal Conduit and IMC |
| For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; U |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Dust-ignition proof, raintight |
| Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub |
| Close radius type for sealing vertical conduit runs |
| Restrict any explosion to the sealed off enclosure |
| Required in class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures |
| Required in class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps |
| Required in class I, Division 1 and 2 locations at the boundary where conduit leaves classified location |
| Required in class I, Division 1 and 2 locations where two or more enclosures are connected by 36 or less conduit, seal must be located within 18 in of either enclosure |
| Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in class I, Division 2locations |
| 2.31 in turning radius |
| Tapered FNPT connection |
| 25% fill vertical conduit drain sealing fittings |
| Triple-coat (Zinc electroplate, chromate and epoxy powder coat) finish |
| Access cover has drain valve for automatic draining of water accumulation above the sea |
