Appleton™

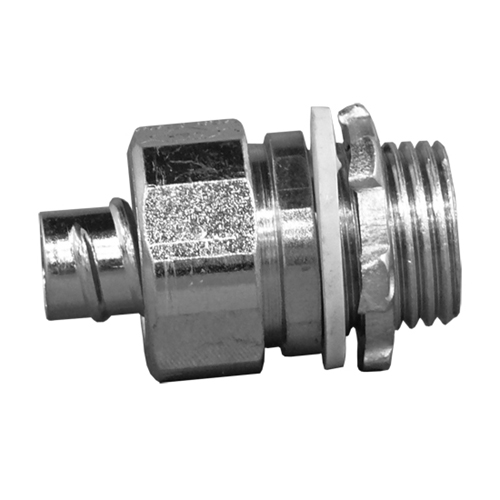

Appleton® ETP™ 4QS-200 Liquidtight Conduit Connector, 2 in Trade, Straight, Steel, Electroplated Zinc
Custom_Product_Images_Illustration
Appleton™
Appleton® ETP™ 4QS-200 Liquidtight Conduit Connector, 2 in Trade, Straight, Steel, Electroplated Zinc
SKU263946
MFGR #4QS-200
Your Cost: $61.27/ea
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
Application For Terminating Liquidtight Flexible Metal Conduit to an Enclosure ARRA Compliant N Buy American Compliant N Catalog Number 4QS-200 Color Metallic Connection Male NPT Taper Threaded Country of Origin CN Currency USD Dimensions 5.8 in H x 0.76 in W Environmental Conditions Raintight EU RoHS Indicator C Gross Weight Per Pack 1.2900 lb Gross Weight per Pack Metric 0.34 Gross Weight UOM Metric kg Height 1.80 in Height [Metric] 4.5720 cm Insulation None Length 6.10 in Length [Metric] 15.4940 cm NEMA Rating FB-1 Series 4QS Size 2 IN in Standard UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795; NEMA: FB-1 Standards UL 514BUL File No. E11853CSA C22.2 No. 18.3CSA 009795RoHS CompliantClass I, Div 2 Sub Brand ETP Suitable For Use With Liquidtight Flexible Metallic Conduit Type Liquidtight Non-Insulated Oiltight Raintight UNSPSC 39121420 UPC 11 68785512064 UPC 12 687855120642 Width 5.50 in Width [Metric] 13.9700 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Angle Straight Finish Zinc Electroplated Material Malleable Iron Trade Size 2 in For Terminating Liquidtight Flexible Metal Conduit to an Enclosure 2 IN Trade Size Straight Liquidtight Connector, Tapered Male Hub Threads - NPT, Suitable for Wet Locations, Suitable for use in Class I, Division 2 Locations, Furnished with Locknut and Sealing Ring Male NPT taper threaded connection Non-insulated Suitable for wet Locations Suitable for use in class I, division 2 locations Furnished with locknut and sealing ring Compact, slim diameter with small turning radius Liquidtight/Raintight/Oiltight Long ferrule prevents pullout and tight bend conduit pop-out Reusable ferrule Raintight environmental conditions 0.76 in L thread
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Terminating Liquidtight Flexible Metal Conduit to an Enclosure |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 4QS-200 |
| Color | Metallic |
| Connection | Male NPT Taper Threaded |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 5.8 in H x 0.76 in W |
| Environmental Conditions | Raintight |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 1.2900 lb |
| Gross Weight per Pack Metric | 0.34 |
| Gross Weight UOM Metric | kg |
| Height | 1.80 in |
| Height [Metric] | 4.5720 cm |
| Insulation | None |
| Length | 6.10 in |
| Length [Metric] | 15.4940 cm |
| NEMA Rating | FB-1 |
| Series | 4QS |
| Size | 2 IN in |
| Standard | UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795; NEMA: FB-1 |
| Standards | UL 514BUL File No. E11853CSA C22.2 No. 18.3CSA 009795RoHS CompliantClass I, Div 2 |
| Sub Brand | ETP |
| Suitable For Use With | Liquidtight Flexible Metallic Conduit |
| Type | Liquidtight Non-Insulated Oiltight Raintight |
| UNSPSC | 39121420 |
| UPC 11 | 68785512064 |
| UPC 12 | 687855120642 |
| Width | 5.50 in |
| Width [Metric] | 13.9700 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | Straight |
| Finish | Zinc Electroplated |
| Material | Malleable Iron |
| Trade Size | 2 in |
| For Terminating Liquidtight Flexible Metal Conduit to an Enclosure |
| 2 IN Trade Size Straight Liquidtight Connector, Tapered Male Hub Threads - NPT, Suitable for Wet Locations, Suitable for use in Class I, Division 2 Locations, Furnished with Locknut and Sealing Ring |
| Male NPT taper threaded connection |
| Non-insulated |
| Suitable for wet Locations |
| Suitable for use in class I, division 2 locations |
| Furnished with locknut and sealing ring |
| Compact, slim diameter with small turning radius |
| Liquidtight/Raintight/Oiltight |
| Long ferrule prevents pullout and tight bend conduit pop-out |
| Reusable ferrule |
| Raintight environmental conditions |
| 0.76 in L thread |
