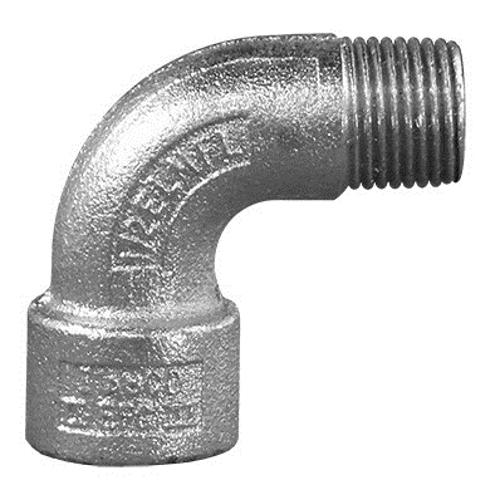

Appleton® ELMFL90-150 Unilets™ ELM Explosionproof Conduit Elbow, 1-1/2 in Trade, 90 deg, Malleable Iron, Zinc Plated
Custom_Product_Images_Illustration
Appleton® ELMFL90-150 Unilets™ ELM Explosionproof Conduit Elbow, 1-1/2 in Trade, 90 deg, Malleable Iron, Zinc Plated
SKU342140
MFGR #ELMFL90-150
Your Cost: $85.14/ea
Appleton Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2" through 4", with designs that facilitate pulling of even heavy, difficult to bend conductors.
Appleton Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2" through 4", with designs that facilitate pulling of even heavy, difficult to bend conductors.
Application For Use With Threaded Rigid Metal Conduit and IMC ARRA Compliant N Buy American Compliant N Catalog Number ELMFL90-150 Connection Tapered MNPT X Tapered FNPT Country of Origin MX Currency USD EU RoHS Indicator C Flexibility Rigid And IMC Gross Weight Per Pack 1.4800 lb Gross Weight per Pack Metric 0.67 Gross Weight UOM Metric kg Height 0.62 in Height [Metric] 15.7480 mm Length 11.00 in Length [Metric] 27.9400 cm Series ELM Standard UL 886, UL File Number E10444, CSA C22.2 No. 25 And 30, CSA 065181, UL Listed For Class II, Division 1 And 2 Groups E, F, G Class III Standards UL 886UL File No. E10444CSA C22.2 No. 25/30CSA 065181Class II, Div 1 and 2 Groups E, F, G Class IIIRoHS Compliant Sub Brand UNILETS Suitable For Use With IMC/Threaded Rigid Metallic Conduit Type Dust-Ignitionproof Explosionproof UNSPSC 39131717 UPC 11 78138129515 UPC 12 781381295154 Width 7.70 in Width [Metric] 19.5580 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Angle 90 ° Finish Zinc Electroplated Material Malleable Iron Trade Size 1.5 in For Use With Threaded Rigid Metal Conduit And IMC Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity Explosion proof dust-ignitionproof Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity Tapered MNPT X Tapered FNPT connection ASTM A47-77 malleable iron Zinc electroplated Class 1, Division 1 And 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G Class III
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ELMFL90-150 |
| Connection | Tapered MNPT X Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Flexibility | Rigid And IMC |
| Gross Weight Per Pack | 1.4800 lb |
| Gross Weight per Pack Metric | 0.67 |
| Gross Weight UOM Metric | kg |
| Height | 0.62 in |
| Height [Metric] | 15.7480 mm |
| Length | 11.00 in |
| Length [Metric] | 27.9400 cm |
| Series | ELM |
| Standard | UL 886, UL File Number E10444, CSA C22.2 No. 25 And 30, CSA 065181, UL Listed For Class II, Division 1 And 2 Groups E, F, G Class III |
| Standards | UL 886UL File No. E10444CSA C22.2 No. 25/30CSA 065181Class II, Div 1 and 2 Groups E, F, G Class IIIRoHS Compliant |
| Sub Brand | UNILETS |
| Suitable For Use With | IMC/Threaded Rigid Metallic Conduit |
| Type | Dust-Ignitionproof Explosionproof |
| UNSPSC | 39131717 |
| UPC 11 | 78138129515 |
| UPC 12 | 781381295154 |
| Width | 7.70 in |
| Width [Metric] | 19.5580 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | 90 ° |
| Finish | Zinc Electroplated |
| Material | Malleable Iron |
| Trade Size | 1.5 in |
| For Use With Threaded Rigid Metal Conduit And IMC |
| Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Explosion proof dust-ignitionproof |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity |
| Tapered MNPT X Tapered FNPT connection |
| ASTM A47-77 malleable iron |
| Zinc electroplated |
| Class 1, Division 1 And 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G Class III |
