Appleton™

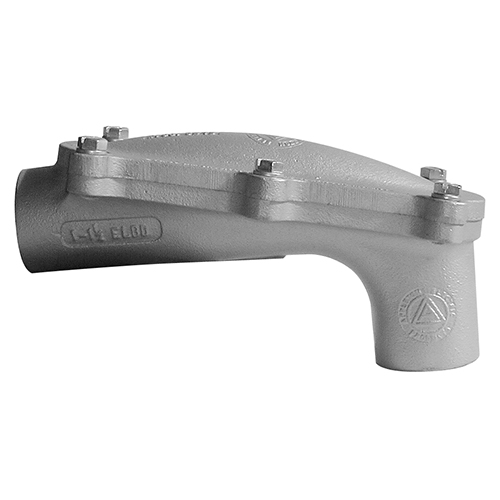

Appleton® ELBD75 Unilets™ ELBD Pulling Elbow, 3/4 in Trade, 90 deg, Malleable Iron, Tri-Coated
Custom_Product_Images_Illustration
Appleton™
Appleton® ELBD75 Unilets™ ELBD Pulling Elbow, 3/4 in Trade, 90 deg, Malleable Iron, Tri-Coated
SKU84425
MFGR #ELBD75
Your Cost: $144.39/ea
Appleton Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2" through 4", with designs that facilitate pulling of even heavy, difficult to bend conductors.
Appleton Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2" through 4", with designs that facilitate pulling of even heavy, difficult to bend conductors.
Application For Use With Metal Conduit ARRA Compliant N Buy American Compliant N Catalog Number ELBD75 Connection Female Threaded Country of Origin MX Currency USD Depth 5.06 in EU RoHS Indicator C Flexibility EMT Gross Weight Per Pack 3.4000 lb Gross Weight per Pack Metric 1.52 Gross Weight UOM Metric kg Height 1.00 in Height [Metric] 25.4000 mm Length 10.00 in Length [Metric] 25.4000 cm Standard UL 886, UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class 1, Division 1 And 2, Group D Class II, Division 1 And 2, Groups E, F, G Class III Standards UL 886 (1203), File No. E10444, CSA C22.2 No. 30, 065181, Class 1, Division 1 and 2, Group D, Class II, Division 1 and 2, Groups E, F, G, Class III, RoHS Compliant Type ELBD Series 90 DEG Pulling Elbow UNSPSC 39131717 UPC 11 78138129315 UPC 12 781381293150 Width 7.00 in Width [Metric] 17.7800 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Material Malleable Iron Trade Size 0.75 in For Use With Metal Conduit Serves as pulling fitting; Makes 90 DEG bend in conduit runs; Permits easy access to pulling conductors; Easily removable covers; Explosion-proof, dust-ignition-proof, Raintight Serves as pulling fitting Makes 90 deg bend in conduit runs Pulling Elbows feature built-in rollers to facilitate cable pulling Permits easy access to pulling conductors Easily removable covers Explosion proof dust-ignitionproof, raintight Female threaded connection Triple coat (zinc electroplate, chromate and epoxy powder-coated) Class 1, Division 1 And 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G Class III
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Metal Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ELBD75 |
| Connection | Female Threaded |
| Country of Origin | MX |
| Currency | USD |
| Depth | 5.06 in |
| EU RoHS Indicator | C |
| Flexibility | EMT |
| Gross Weight Per Pack | 3.4000 lb |
| Gross Weight per Pack Metric | 1.52 |
| Gross Weight UOM Metric | kg |
| Height | 1.00 in |
| Height [Metric] | 25.4000 mm |
| Length | 10.00 in |
| Length [Metric] | 25.4000 cm |
| Standard | UL 886, UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class 1, Division 1 And 2, Group D Class II, Division 1 And 2, Groups E, F, G Class III |
| Standards | UL 886 (1203), File No. E10444, CSA C22.2 No. 30, 065181, Class 1, Division 1 and 2, Group D, Class II, Division 1 and 2, Groups E, F, G, Class III, RoHS Compliant |
| Type | ELBD Series 90 DEG Pulling Elbow |
| UNSPSC | 39131717 |
| UPC 11 | 78138129315 |
| UPC 12 | 781381293150 |
| Width | 7.00 in |
| Width [Metric] | 17.7800 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Material | Malleable Iron |
| Trade Size | 0.75 in |
| For Use With Metal Conduit |
| Serves as pulling fitting; Makes 90 DEG bend in conduit runs; Permits easy access to pulling conductors; Easily removable covers; Explosion-proof, dust-ignition-proof, Raintight |
| Serves as pulling fitting |
| Makes 90 deg bend in conduit runs |
| Pulling Elbows feature built-in rollers to facilitate cable pulling |
| Permits easy access to pulling conductors |
| Easily removable covers |
| Explosion proof dust-ignitionproof, raintight |
| Female threaded connection |
| Triple coat (zinc electroplate, chromate and epoxy powder-coated) |
| Class 1, Division 1 And 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G Class III |
