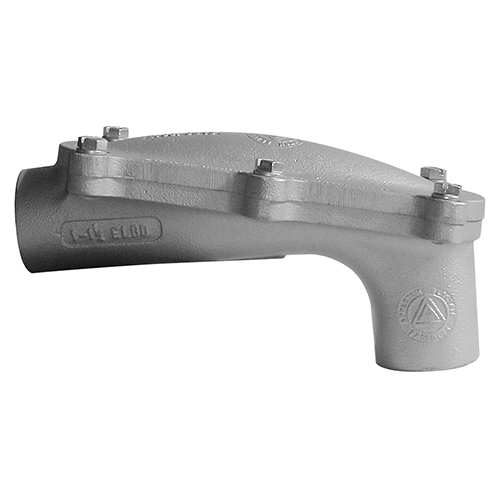

Appleton® ELBD100 Unilets™ ELBD Pulling Elbow, 1 in Trade, 90 deg, Malleable Iron, Tri-Coated
Custom_Product_Images_Illustration
Appleton® ELBD100 Unilets™ ELBD Pulling Elbow, 1 in Trade, 90 deg, Malleable Iron, Tri-Coated
SKU372006
MFGR #ELBD100
Your Cost: $345.15/ea
Appleton Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2" through 4", with designs that facilitate pulling of even heavy, difficult to bend conductors.
Appleton Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2" through 4", with designs that facilitate pulling of even heavy, difficult to bend conductors.
Application For Use With Metal Conduit ARRA Compliant N Buy American Compliant N Catalog Number ELBD100 Connection Female Threaded Country of Origin MX Currency USD Dimensions 5 in H x 3.94 in W EU RoHS Indicator C Flexibility EMT Gross Weight Per Pack 6.0400 lb Gross Weight per Pack Metric 2.74 Gross Weight UOM Metric kg Height 4.90 in Height [Metric] 12.4460 cm Length 11.70 in Length [Metric] 29.7180 cm Series ELBD Standard UL 886, UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class 1, Division 1 And 2, Group D Class II, Division 1 And 2, Groups E, F, G Class III Standards UL 886, UL File No. E10444, E85310CSA C22.2 No. 30CSA 065181Class 1, Div 1 and 2, Group D Class II, Div 1 and 2, Groups E, F, G Class IIIRoHS Compliant Suitable For Use With Threaded Metallic Conduit Type Dust-Ignitionproof Explosionproof Pulling Raintight UNSPSC 39131717 UPC 11 78138129320 UPC 12 781381293204 Width 5.30 in Width [Metric] 13.4620 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Angle 90 ° Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Material Malleable Iron Trade Size 1 in For Use With Metal Conduit Serves as pulling fitting; Makes 90 DEG bend in conduit runs; Permits easy access to pulling conductors; Easily removable covers; Explosion-proof, dust-ignition-proof, Raintight Serves as pulling fitting Makes 90 deg bend in conduit runs Pulling Elbows feature built-in rollers to facilitate cable pulling Permits easy access to pulling conductors Easily removable covers Explosion proof dust-ignitionproof, raintight Female threaded connection Triple coat (zinc electroplate, chromate and epoxy powder-coated) Class 1, Division 1 And 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G Class III
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | For Use With Metal Conduit |
ARRA Compliant | N |
Buy American Compliant | N |
Catalog Number | ELBD100 |
Connection | Female Threaded |
Country of Origin | MX |
Currency | USD |
Dimensions | 5 in H x 3.94 in W |
EU RoHS Indicator | C |
Flexibility | EMT |
Gross Weight Per Pack | 6.0400 lb |
Gross Weight per Pack Metric | 2.74 |
Gross Weight UOM Metric | kg |
Height | 4.90 in |
Height [Metric] | 12.4460 cm |
Length | 11.70 in |
Length [Metric] | 29.7180 cm |
Series | ELBD |
Standard | UL 886, UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class 1, Division 1 And 2, Group D Class II, Division 1 And 2, Groups E, F, G Class III |
Standards | UL 886, UL File No. E10444, E85310CSA C22.2 No. 30CSA 065181Class 1, Div 1 and 2, Group D Class II, Div 1 and 2, Groups E, F, G Class IIIRoHS Compliant |
Suitable For Use With | Threaded Metallic Conduit |
Type | Dust-Ignitionproof Explosionproof Pulling Raintight |
UNSPSC | 39131717 |
UPC 11 | 78138129320 |
UPC 12 | 781381293204 |
Width | 5.30 in |
Width [Metric] | 13.4620 cm |
Stock Status | NONSTOCK |
Brand | Appleton™ |
Manufacturer | Appleton |
Angle | 90 ° |
Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
Material | Malleable Iron |
Trade Size | 1 in |
For Use With Metal Conduit |
Serves as pulling fitting; Makes 90 DEG bend in conduit runs; Permits easy access to pulling conductors; Easily removable covers; Explosion-proof, dust-ignition-proof, Raintight |
Serves as pulling fitting |
Makes 90 deg bend in conduit runs |
Pulling Elbows feature built-in rollers to facilitate cable pulling |
Permits easy access to pulling conductors |
Easily removable covers |
Explosion proof dust-ignitionproof, raintight |
Female threaded connection |
Triple coat (zinc electroplate, chromate and epoxy powder-coated) |
Class 1, Division 1 And 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G Class III |
