Appleton™

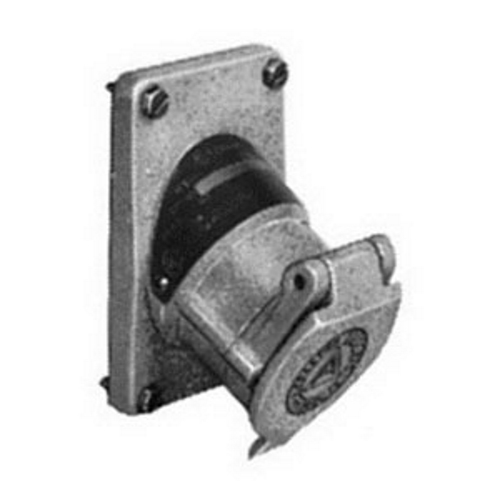

Appleton® EFSR-2023M Receptacle Cover Assembly, 125 VAC, 20 A, 3 Poles, 2 Wires
Custom_Product_Images_Illustration
Appleton™
Appleton® EFSR-2023M Receptacle Cover Assembly, 125 VAC, 20 A, 3 Poles, 2 Wires
SKU17425
MFGR #EFSR-2023M
Your Cost: $815.92/ea
Appleton® Receptacle Cover Assembly, 125 VAC, 20 A, 1 hp, 3 Poles, 2 Wires, NEMA 3/3R, Malleable Iron, 4.63 in H x 3 in W x 3.19 in D
Appleton® Receptacle Cover Assembly, 125 VAC, 20 A, 1 hp, 3 Poles, 2 Wires, NEMA 3/3R, Malleable Iron, 4.63 in H x 3 in W x 3.19 in D
Application For ECP Mating Plugs ARRA Compliant N Buy American Compliant N Catalog Number EFSR-2023M Country of Origin MX Currency USD Dimensions 4.63 in H x 3 in W x 3.19 in D EU RoHS Indicator C Gross Weight Per Pack 2.8800 lb Gross Weight per Pack Metric 1.31 Gross Weight UOM Metric kg Height 3.60 in Height [Metric] 9.1440 cm Horsepower 1 hp Length 6.70 in Length [Metric] 17.0180 cm Material Malleable Iron Mounting Box NEMA Rating NEMA 3/3R Number Of Poles 3 Sub Brand U-Line Type Replacement UNSPSC 39121406 UPC 11 78138139736 UPC 12 781381397360 Width 4.60 in Width [Metric] 11.6840 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 20 A Number of Wires 2 Voltage Rating 125 VAC For ECP Mating Plugs Explosionproof, dust-ignitionproof; Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Glass-filled reinforced polyester insulating blocks Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior Glass filled reinforced polyester insulating blocks Energized receptacle contacts deeply recessed to reduce danger of accidental touching Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact Insulators provide superior dielectric and mechanical strength and lowest arc tracking ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line™ explosionproof receptacles Intermateable with competitor's plugs of like configurations Glass-filled reinforced polyester insulating blocks Box mounting Epoxy powder coated malleable iron 1 gang
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For ECP Mating Plugs |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EFSR-2023M |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.63 in H x 3 in W x 3.19 in D |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 2.8800 lb |
| Gross Weight per Pack Metric | 1.31 |
| Gross Weight UOM Metric | kg |
| Height | 3.60 in |
| Height [Metric] | 9.1440 cm |
| Horsepower | 1 hp |
| Length | 6.70 in |
| Length [Metric] | 17.0180 cm |
| Material | Malleable Iron |
| Mounting | Box |
| NEMA Rating | NEMA 3/3R |
| Number Of Poles | 3 |
| Sub Brand | U-Line |
| Type | Replacement |
| UNSPSC | 39121406 |
| UPC 11 | 78138139736 |
| UPC 12 | 781381397360 |
| Width | 4.60 in |
| Width [Metric] | 11.6840 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 20 A |
| Number of Wires | 2 |
| Voltage Rating | 125 VAC |
| For ECP Mating Plugs |
| Explosionproof, dust-ignitionproof; Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Glass-filled reinforced polyester insulating blocks |
| Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior |
| Glass filled reinforced polyester insulating blocks |
| Energized receptacle contacts deeply recessed to reduce danger of accidental touching |
| Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact |
| Insulators provide superior dielectric and mechanical strength and lowest arc tracking |
| ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line™ explosionproof receptacles |
| Intermateable with competitor's plugs of like configurations |
| Glass-filled reinforced polyester insulating blocks |
| Box mounting |
| Epoxy powder coated malleable iron |
| 1 gang |
