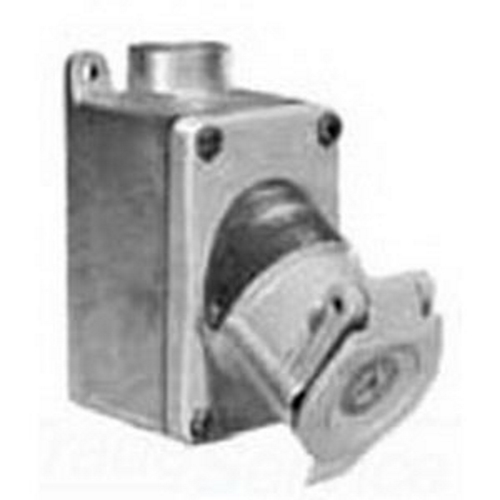

Appleton® EFS150-20232 U-Line® Pin and Sleeve Receptacle Assembly, 250 VAC, 20 A, 3 Poles, 2 Wires
Custom_Product_Images_Illustration
Appleton® EFS150-20232 U-Line® Pin and Sleeve Receptacle Assembly, 250 VAC, 20 A, 3 Poles, 2 Wires
SKU296324
MFGR #EFS15020232
Your Cost: $610.17/ea
U-Line® plugs and receptacles allow the use of electrical equipment in hazardous locations. In non-hazardous locations, the U-Line ECP plug fits into standard NEMA 5-20R and 6-20R receptacles. In hazardous locations, the same U-Line plug is the key to energizing the explosionproof U-Line receptacle. Although U-Line plugs can be used with ordinary receptacles, U-Line receptacles are designed so that they cant be energized by an ordinary plug - ensuring that only safe connections can be made in a hazardous location. Its an convenient, time- and money-saving solution for handheld tools, lighting and other equipment that might be used in both ordinary and hazardous locations. When using a U-Line plug in an explosionproof U-Line receptacle, a twist of the plug makes electrical contact and locks the plug in place with an audible click. The neoprene gasket in the throat of the receptacle seals against the plug or the spring-loaded cover to seal out water, dust and corrosive compounds.
U-Line® plugs and receptacles allow the use of electrical equipment in hazardous locations. In non-hazardous locations, the U-Line ECP plug fits into standard NEMA 5-20R and 6-20R receptacles. In hazardous locations, the same U-Line plug is the key to energizing the explosionproof U-Line receptacle. Although U-Line plugs can be used with ordinary receptacles, U-Line receptacles are designed so that they cant be energized by an ordinary plug - ensuring that only safe connections can be made in a hazardous location. Its an convenient, time- and money-saving solution for handheld tools, lighting and other equipment that might be used in both ordinary and hazardous locations. When using a U-Line plug in an explosionproof U-Line receptacle, a twist of the plug makes electrical contact and locks the plug in place with an audible click. The neoprene gasket in the throat of the receptacle seals against the plug or the spring-loaded cover to seal out water, dust and corrosive compounds.
Application For ECP And NCP Mating Plugs ARRA Compliant C Buy American Compliant N Catalog Number EFS15020232 Country of Origin MX Currency USD Dimensions 6.5 in H x 2.75 in W x 5.64 in D EU RoHS Indicator C Gross Weight Per Pack 4.2500 lb Horsepower 2 hp Material Copper Free Aluminum Mounting Surface Mount With 1/2 IN Dead-End Hub NEMA Rating NEMA 3/3R Number Of Poles 3 Standard Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159; CSA Certified: 038644 Standards ARRA CompliantRoHS CompliantClass I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups F, G, Class IIIUL File No. E10784/E81751UL 1203/1010/894CSA C22.2 File No. 25/30/42/159CSA File No. 038644 Sub Brand U-Line Type 1-Gang Dead End Dust-Ignitionproof UNSPSC 39121406 UPC 11 78138110721 UPC 12 781381107211 Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 20 A Number of Wires 2 Voltage Rating 250 VAC For ECP And NCP Mating Plugs Explosionproof, dust-ignitionproof; Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Suitable for use in Class I, Division 1, Group B when used with external seals (seals must be placed within 2 IN from each conduit opening, seals are not required in Class I, Division 2 locations); Spring cover; Glass-filled reinforced polyester insulating blocks Explosion proof, dust-ignition proof Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior Suitable for use in Class I, Division 1, Group B when used with external seals (seals must be placed within 2 IN from each conduit opening, seals are not required in Class I, Division 2 locations Spring cover Glass-filled reinforced polyester insulating blocks Energized receptacle contacts deeply recessed to reduce danger of accidental touching Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact Insulators provide superior dielectric and mechanical strength and lowest arc tracking Surface mount 1/2 in dead-end hub 1-gang For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps Copper free (4/10 of 1 PCT) aluminum receptacle Epoxy powder coat With mounting box
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For ECP And NCP Mating Plugs |
| ARRA Compliant | C |
| Buy American Compliant | N |
| Catalog Number | EFS15020232 |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.5 in H x 2.75 in W x 5.64 in D |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 4.2500 lb |
| Horsepower | 2 hp |
| Material | Copper Free Aluminum |
| Mounting | Surface Mount With 1/2 IN Dead-End Hub |
| NEMA Rating | NEMA 3/3R |
| Number Of Poles | 3 |
| Standard | Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159; CSA Certified: 038644 |
| Standards | ARRA CompliantRoHS CompliantClass I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups F, G, Class IIIUL File No. E10784/E81751UL 1203/1010/894CSA C22.2 File No. 25/30/42/159CSA File No. 038644 |
| Sub Brand | U-Line |
| Type | 1-Gang Dead End Dust-Ignitionproof |
| UNSPSC | 39121406 |
| UPC 11 | 78138110721 |
| UPC 12 | 781381107211 |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 20 A |
| Number of Wires | 2 |
| Voltage Rating | 250 VAC |
| For ECP And NCP Mating Plugs |
| Explosionproof, dust-ignitionproof; Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Suitable for use in Class I, Division 1, Group B when used with external seals (seals must be placed within 2 IN from each conduit opening, seals are not required in Class I, Division 2 locations); Spring cover; Glass-filled reinforced polyester insulating blocks |
| Explosion proof, dust-ignition proof |
| Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior |
| Suitable for use in Class I, Division 1, Group B when used with external seals (seals must be placed within 2 IN from each conduit opening, seals are not required in Class I, Division 2 locations |
| Spring cover |
| Glass-filled reinforced polyester insulating blocks |
| Energized receptacle contacts deeply recessed to reduce danger of accidental touching |
| Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact |
| Insulators provide superior dielectric and mechanical strength and lowest arc tracking |
| Surface mount |
| 1/2 in dead-end hub |
| 1-gang |
| For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps |
| Copper free (4/10 of 1 PCT) aluminum receptacle |
| Epoxy powder coat |
| With mounting box |
