Appleton™

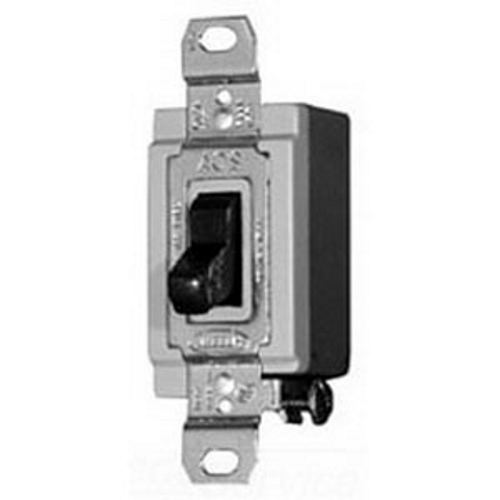

Appleton® EFS-FR1-Q EFS Non-Sealed Tumbler Switch With Internal Ground Screw, 120/277 VAC, 20 A, NEMA 7CD/9EFG
Custom_Product_Images_Illustration
Appleton™
Appleton® EFS-FR1-Q EFS Non-Sealed Tumbler Switch With Internal Ground Screw, 120/277 VAC, 20 A, NEMA 7CD/9EFG
SKU84414
MFGR #EFS-FR1-Q
Your Cost: $186.61/ea
EFS series non-sealed tumbler switches prevent ignition of hazardous atmospheres by containing any arcing within an explosionproof enclosure. Front operated and side rocker arm models are available and both types can be padlocked in either the on or off position.
EFS series non-sealed tumbler switches prevent ignition of hazardous atmospheres by containing any arcing within an explosionproof enclosure. Front operated and side rocker arm models are available and both types can be padlocked in either the on or off position.
Actuator Front Operated Lever Application For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present ARRA Compliant N Buy American Compliant N Catalog Number EFS-FR1-Q Country of Origin CN Currency USD Enclosure NEMA 7CD, 9EFG EU RoHS Indicator C Finish Triple Coated Gross Weight Per Pack 0.1900 lb Gross Weight per Pack Metric 0.09 Gross Weight UOM Metric kg Height 4.20 in Height [Metric] 10.6680 cm Length 7.20 in Length [Metric] 18.2880 cm Material Malleable Iron Mounting Type Surface Number Of Poles 1 Series EFS Standard UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III Standards UL 894UL 1203 File No. E10523/E81751NEC class I, Div 1 and 2, Groups C, D class II, Div 1 and 2, Groups E, F, G class III Sub Brand UNILETS Type 1-Gang Non-Sealed UNSPSC 39121565 UPC 11 78138128730 UPC 12 781381287302 Width 5.10 in Width [Metric] 12.9540 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 20 A NEMA Rating NEMA 7CD/9EFG Voltage Rating 120/277 VAC For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Choice of front-operating or side rocker arm handle each may be locked in ON or OFF position; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Enclosures furnished with internal ground screw; For installation in: chemical plants, petrochemical plants, Refineries, other process industries; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads Enclosures have external mounting lugs for ease of mounting Smooth, rounded integral bushing in each hub protects conductor insulation Enclosures furnished with internal ground screw Smooth ground mating surfaces assure flame tight joint between cover and mounting enclosure Stainless steel hex head cap screws for attaching cover to mounting enclosure Choice of front operating or side rocker arm handle each may be locked in ON or OFF position Each handle has close tolerance threaded stainless steel shaft to meet explosionproof requirements For use in classified areas where ignitable vapors, gases or highly combustible dusts are present Explosionproof and dust-ignitionproof NEC class I, division 1 and 2, groups C, D class II, division 1 and 2, groups E, F, G class III Zinc electroplate/chromate/epoxy powder coated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Actuator | Front Operated Lever |
Application | For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present |
ARRA Compliant | N |
Buy American Compliant | N |
Catalog Number | EFS-FR1-Q |
Country of Origin | CN |
Currency | USD |
Enclosure | NEMA 7CD, 9EFG |
EU RoHS Indicator | C |
Finish | Triple Coated |
Gross Weight Per Pack | 0.1900 lb |
Gross Weight per Pack Metric | 0.09 |
Gross Weight UOM Metric | kg |
Height | 4.20 in |
Height [Metric] | 10.6680 cm |
Length | 7.20 in |
Length [Metric] | 18.2880 cm |
Material | Malleable Iron |
Mounting Type | Surface |
Number Of Poles | 1 |
Series | EFS |
Standard | UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III |
Standards | UL 894UL 1203 File No. E10523/E81751NEC class I, Div 1 and 2, Groups C, D class II, Div 1 and 2, Groups E, F, G class III |
Sub Brand | UNILETS |
Type | 1-Gang Non-Sealed |
UNSPSC | 39121565 |
UPC 11 | 78138128730 |
UPC 12 | 781381287302 |
Width | 5.10 in |
Width [Metric] | 12.9540 cm |
Stock Status | NONSTOCK |
Brand | Appleton™ |
Manufacturer | Appleton |
Amperage Rating | 20 A |
NEMA Rating | NEMA 7CD/9EFG |
Voltage Rating | 120/277 VAC |
For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present |
Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Choice of front-operating or side rocker arm handle each may be locked in ON or OFF position; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Enclosures furnished with internal ground screw; For installation in: chemical plants, petrochemical plants, Refineries, other process industries; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads |
Enclosures have external mounting lugs for ease of mounting |
Smooth, rounded integral bushing in each hub protects conductor insulation |
Enclosures furnished with internal ground screw |
Smooth ground mating surfaces assure flame tight joint between cover and mounting enclosure |
Stainless steel hex head cap screws for attaching cover to mounting enclosure |
Choice of front operating or side rocker arm handle each may be locked in ON or OFF position |
Each handle has close tolerance threaded stainless steel shaft to meet explosionproof requirements |
For use in classified areas where ignitable vapors, gases or highly combustible dusts are present |
Explosionproof and dust-ignitionproof |
NEC class I, division 1 and 2, groups C, D class II, division 1 and 2, groups E, F, G class III |
Zinc electroplate/chromate/epoxy powder coated |
