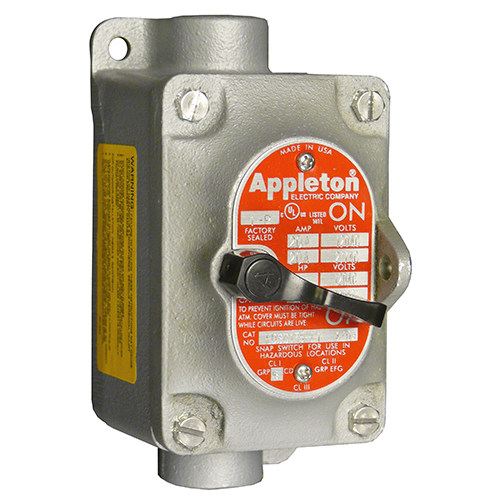

Appleton® EFDC175-3MS EFDC1753MS Dust-Ignitionproof Explosionproof Manual Motor Contactor EFDC1753MS, 600 VAC Coil, 30 A Max Load
Custom_Product_Images_Illustration
Appleton® EFDC175-3MS EFDC1753MS Dust-Ignitionproof Explosionproof Manual Motor Contactor EFDC1753MS, 600 VAC Coil, 30 A Max Load
SKU269100
MFGR #EFDC175-3MS
Your Cost: $853.75/ea
Appleton® Manual Motor Contactor, Dust-Ignitionproof Explosionproof, 600 VAC Coil, 30 A Maximum Load, 15 hp Coil Power Rating, 3 Pole, NEMA 3/3R, Malleable Iron, Gray, Epoxy Powder Coated
Appleton® Manual Motor Contactor, Dust-Ignitionproof Explosionproof, 600 VAC Coil, 30 A Maximum Load, 15 hp Coil Power Rating, 3 Pole, NEMA 3/3R, Malleable Iron, Gray, Epoxy Powder Coated
Application For EDS Series Factory Sealed Manual Motor Starter And Contactor ARRA Compliant N Buy American Compliant N Catalog Number EFDC175-3MS Coil Power Rating 15 hp Color Gray Country of Origin MX Currency USD Enclosure Type NEMA 3/3R EU RoHS Indicator C Finish Epoxy Powder Coated Gross Weight Per Pack 5.2400 lb Gross Weight per Pack Metric 2.38 Gross Weight UOM Metric kg Height 4.80 in Height [Metric] 12.1920 cm Length 7.80 in Length [Metric] 19.8120 cm Material Malleable Iron Number Of Poles 3 Standard UL 508, UL 698, UL 1203, CSA Number C22.2 14-M, C22.2 No. 25, C22.2 No. 30, C/US UL File Number E76550, E81751, Class I, Division 1, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III Standards Class I, Div 1, Groups C, D, Class II, Div 1, 2, Groups E, F, G, Class III, cUSULUL 508, 698, 1203 File No. E76550 File No. E81751 ListedCSA C22.2 14-M/25/30 UNSPSC 39121521 UPC 11 78138127410 UPC 12 781381274104 Width 5.60 in Width [Metric] 14.2240 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Coil Voltage 600 VAC Maximum Load Current 30 A Type Dust-Ignitionproof Explosionproof For EDS Series Factory Sealed Manual Motor Starter And Contactor Manual motor starters are available to meet any plant installation requirement; They may be used to install a variety of electrical wiring devices and comes complete with covers and dead-end or feed-through hub arrangements; Available with or without the starter switch; Complete units are ideal for manual starting of small VAC or VDC motors in locations made hazardous by the presence of flammable vapors, gases or combustible dust; Easily readable operator handle with provisions for padlocking in the ON or OFF position; Cast in hubs; Interchangeable heater units
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For EDS Series Factory Sealed Manual Motor Starter And Contactor |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EFDC175-3MS |
| Coil Power Rating | 15 hp |
| Color | Gray |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 3/3R |
| EU RoHS Indicator | C |
| Finish | Epoxy Powder Coated |
| Gross Weight Per Pack | 5.2400 lb |
| Gross Weight per Pack Metric | 2.38 |
| Gross Weight UOM Metric | kg |
| Height | 4.80 in |
| Height [Metric] | 12.1920 cm |
| Length | 7.80 in |
| Length [Metric] | 19.8120 cm |
| Material | Malleable Iron |
| Number Of Poles | 3 |
| Standard | UL 508, UL 698, UL 1203, CSA Number C22.2 14-M, C22.2 No. 25, C22.2 No. 30, C/US UL File Number E76550, E81751, Class I, Division 1, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III |
| Standards | Class I, Div 1, Groups C, D, Class II, Div 1, 2, Groups E, F, G, Class III, cUSULUL 508, 698, 1203 File No. E76550 File No. E81751 ListedCSA C22.2 14-M/25/30 |
| UNSPSC | 39121521 |
| UPC 11 | 78138127410 |
| UPC 12 | 781381274104 |
| Width | 5.60 in |
| Width [Metric] | 14.2240 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Coil Voltage | 600 VAC |
| Maximum Load Current | 30 A |
| Type | Dust-Ignitionproof Explosionproof |
| For EDS Series Factory Sealed Manual Motor Starter And Contactor |
| Manual motor starters are available to meet any plant installation requirement; They may be used to install a variety of electrical wiring devices and comes complete with covers and dead-end or feed-through hub arrangements; Available with or without the starter switch; Complete units are ideal for manual starting of small VAC or VDC motors in locations made hazardous by the presence of flammable vapors, gases or combustible dust; Easily readable operator handle with provisions for padlocking in the ON or OFF position; Cast in hubs; Interchangeable heater units |
