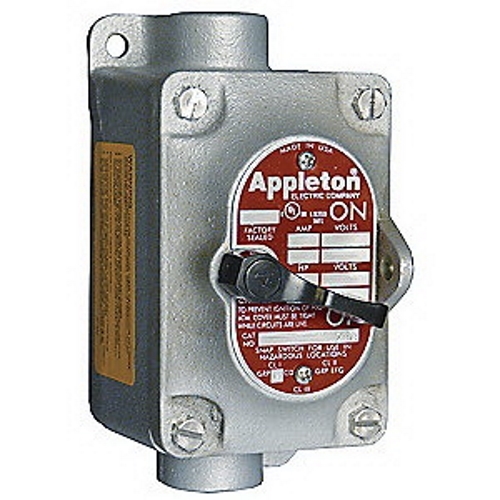

Appleton® EDSC2140 Control Station
SKU289701
MFGR #EDSC2140
Your Cost: $649.74/ea
Appleton® Tumbler Switch Control Station, Feed Through, Series: Contender® EDSC, 120/277 VAC, 20 A, Front Operated Lever Operator, NEMA 3/7CD/9EFG, Surface Mount, Malleable Iron, 6.81 in H x 3.72 in W x 5.31 in D
Appleton® Tumbler Switch Control Station, Feed Through, Series: Contender® EDSC, 120/277 VAC, 20 A, Front Operated Lever Operator, NEMA 3/7CD/9EFG, Surface Mount, Malleable Iron, 6.81 in H x 3.72 in W x 5.31 in D
Actuator Front Operated Lever Application For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present ARRA Compliant N Buy American Compliant N Catalog Number EDSC2140 Connection Type Threaded Country of Origin MX Currency USD Dimensions 6.81 in H x 3.72 in W x 5.31 in D Enclosure NEMA 3, 7CD, 9EFG EU RoHS Indicator N Finish Triple Coated Gross Weight Per Pack 9.8000 lb Gross Weight per Pack Metric 4.44 Gross Weight UOM Metric kg Height 4.60 in Height [Metric] 11.6840 cm Legend On/Off Length 7.40 in Length [Metric] 18.7960 cm Material Malleable Iron Mounting Surface Mount With 3/4 IN Feed-Thru Hub Mounting Type Surface Series EDS Standard UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1, Groups C, D, Class I, Division 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III Standards Class I, Div 1 and Groups C D, Class I, Div 2 and Groups B C D, Class II, Div 1 and 2 Groups E F G, Class IIIUL 508/698/1203/1604 Sub Brand Contender Type 1-Gang Feed-Through UNSPSC 39121565 UPC 11 78138169733 UPC 12 781381697330 Width 5.80 in Width [Metric] 14.7320 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 20 A NEMA Rating NEMA 3/7CD/9EFG Voltage Rating 120/277 VAC For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; On/off legend marking Corrosion resistant, pad lockable in the on or off position Enclosures have external mounting lugs for ease of mounting Smooth, rounded integral bushing in each hub protects conductor insulation Enclosures furnished with internal ground screw Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure Stainless steel hex head screws attach sealing chamber to cover and mounting enclosure Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads Explosion proof dust-ignitionproof 3/4 in hub 1 gang 1 hp at 120 VAC, 2 hp at 240 VAC Zinc electroplated chromate epoxy powder coated malleable iron, nylon 6/6 handle On/Off 4-Way
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | Front Operated Lever |
| Application | For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EDSC2140 |
| Connection Type | Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.81 in H x 3.72 in W x 5.31 in D |
| Enclosure | NEMA 3, 7CD, 9EFG |
| EU RoHS Indicator | N |
| Finish | Triple Coated |
| Gross Weight Per Pack | 9.8000 lb |
| Gross Weight per Pack Metric | 4.44 |
| Gross Weight UOM Metric | kg |
| Height | 4.60 in |
| Height [Metric] | 11.6840 cm |
| Legend | On/Off |
| Length | 7.40 in |
| Length [Metric] | 18.7960 cm |
| Material | Malleable Iron |
| Mounting | Surface Mount With 3/4 IN Feed-Thru Hub |
| Mounting Type | Surface |
| Series | EDS |
| Standard | UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1, Groups C, D, Class I, Division 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III |
| Standards | Class I, Div 1 and Groups C D, Class I, Div 2 and Groups B C D, Class II, Div 1 and 2 Groups E F G, Class IIIUL 508/698/1203/1604 |
| Sub Brand | Contender |
| Type | 1-Gang Feed-Through |
| UNSPSC | 39121565 |
| UPC 11 | 78138169733 |
| UPC 12 | 781381697330 |
| Width | 5.80 in |
| Width [Metric] | 14.7320 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 20 A |
| NEMA Rating | NEMA 3/7CD/9EFG |
| Voltage Rating | 120/277 VAC |
| For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present |
| Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; On/off legend marking |
| Corrosion resistant, pad lockable in the on or off position |
| Enclosures have external mounting lugs for ease of mounting |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Enclosures furnished with internal ground screw |
| Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure |
| Stainless steel hex head screws attach sealing chamber to cover and mounting enclosure |
| Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements |
| Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads |
| Explosion proof dust-ignitionproof |
| 3/4 in hub |
| 1 gang |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
| Zinc electroplated chromate epoxy powder coated malleable iron, nylon 6/6 handle |
| On/Off |
| 4-Way |
