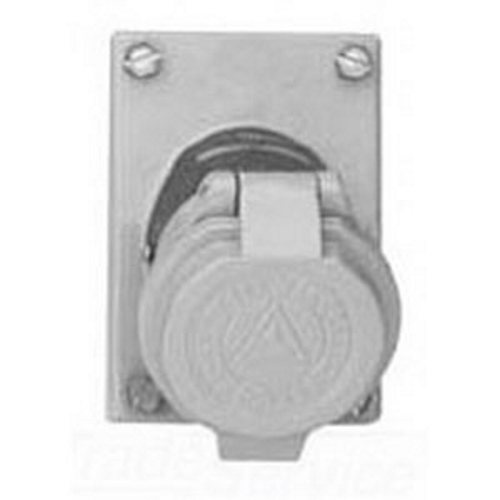

Appleton® CPS152R Contender® Pin and Sleeve Receptacle Assembly, 250 VAC/18 VDC, 20 A, 3 Poles, 2 Wires
Explosion Proof Pin & Sleeve Receptacles
593613
MFG #: CPS152R
Appleton™
615.22000
/ ea
Contender® CPS 20 Amp factory sealed pin and sleeve receptacles provide explosionproof protection for stationary or portable equipment in hazardous, damp or corrosive locations. They are interchangeable with select competitors boxes, receptacles and plugs, allowing you to benefit from Appleton features and reliability. Covers are UL Listed when used with Contender Series EDS mounting bodies.
- Brochure URL - 11043_BRO_781381186261_Broc.pdf(Brochure URL)
- Brochure URL - BRO_781381186261_Broc.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_cf38a88c7f15447133b0d7a7dd07fcaf596fc4214f0878d4e3f5f108b431bcf8.pdf(Catalog URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- http://www.appletonelec.com(Seller Home Page URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Spec Sheet URL - 11043_SPE_781381000314_Spec.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_781381000314_Spec.pdf(Spec Sheet URL)
- Applications
- Features
| For CPP516 Plug |
| Explosionproof, delayed action; CPS factory sealed: external seals not required; Receptacles are supplied with pressure terminal connectors; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Fiberglass reinforced thermoset polyester insulating blocks |
| Explosion proof, delayed action |
| Covers are UL Listed when used with Contender® Series mounting bodies |
| Insulators provide superior dielectric and mechanical strength and lowest arc tracking |
| Insert plug partially rotate slide on front of receptacle and insert plug fully delayed action construction |
| CPS factory sealed external seals not required |
| For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps |
| Box mounting |
| 1-gang |
| 125 - 250 VAC, 18 VDC |
| Epoxy powder coat copper free (4/10 of 1 pct maximum) aluminum cover |
| Malleable iron mounting box |
| Fiberglass reinforced thermoset polyester insulating blocks |
