Appleton™

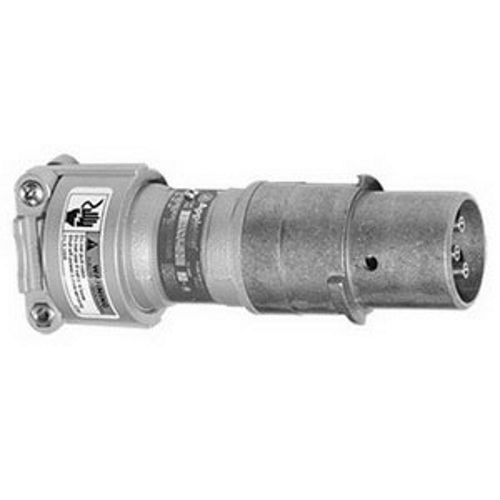

Appleton® CPH-6034BC CPH Pin & Sleeve Plug, 125/250/480 VAC, 60 A, 4 Poles, 3 Wires
Custom_Product_Images_Illustration
Appleton™
Appleton® CPH-6034BC CPH Pin & Sleeve Plug, 125/250/480 VAC, 60 A, 4 Poles, 3 Wires
SKU85008
MFGR #CPH-6034BC
Your Cost: $871.55/ea
Appleton® Pin & Sleeve Plug, Series: CPH, 125/250/480 VAC, 60 A, 5 hp, 50/400 Hz, 4 Pole, 3 Wires, NEMA 3/3R/4/4X/7BCD/9FG, Pressure Wire Terminal, Aluminum, 3.06 in H x 3.06 in W x 8.44 in D
Appleton® Pin & Sleeve Plug, Series: CPH, 125/250/480 VAC, 60 A, 5 hp, 50/400 Hz, 4 Pole, 3 Wires, NEMA 3/3R/4/4X/7BCD/9FG, Pressure Wire Terminal, Aluminum, 3.06 in H x 3.06 in W x 8.44 in D
Application For JBR Receptacles ARRA Compliant C Buy American Compliant N Catalog Number CPH-6034BC Country of Origin MX Currency USD Dimensions 3.06 in H x 3.06 in W x 8.44 in D EU RoHS Indicator N Frequency Rating 50/400 Hz Gross Weight Per Pack 2.4300 lb Gross Weight per Pack Metric 1.10 Gross Weight UOM Metric kg Height 3.60 in Height [Metric] 9.1440 cm Horsepower 5 hp Length 9.00 in Length [Metric] 22.8600 cm Material Copper Free Aluminum NEMA Rating NEMA 3/3R/4/4X/7BCD/9FG Number Of Poles 4 Phase 3 Series CPH Standard Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III Standards ARRA CompliantClass I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups F, G, Class III Terminal Type Pressure Wire Type 3-Phase UNSPSC 39121402 UPC 11 78138167890 UPC 12 781381678902 Width 5.30 in Width [Metric] 13.4620 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 60 A Number of Wires 3 Voltage Rating 125/250/480 VAC For JBR Receptacles Plug must be inserted into receptacle before the switch is in the on position Plug must be inserted into receptacle before the switch is in the on position3 phase 3-phase 0.39 to 1-3/8 in plug cable diameter Copper free aluminum construction CPH Plugs for EBR, EBRH and DBR Receptacles 4 to 6 AWG copper aluminum terminal block wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For JBR Receptacles |
| ARRA Compliant | C |
| Buy American Compliant | N |
| Catalog Number | CPH-6034BC |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3.06 in H x 3.06 in W x 8.44 in D |
| EU RoHS Indicator | N |
| Frequency Rating | 50/400 Hz |
| Gross Weight Per Pack | 2.4300 lb |
| Gross Weight per Pack Metric | 1.10 |
| Gross Weight UOM Metric | kg |
| Height | 3.60 in |
| Height [Metric] | 9.1440 cm |
| Horsepower | 5 hp |
| Length | 9.00 in |
| Length [Metric] | 22.8600 cm |
| Material | Copper Free Aluminum |
| NEMA Rating | NEMA 3/3R/4/4X/7BCD/9FG |
| Number Of Poles | 4 |
| Phase | 3 |
| Series | CPH |
| Standard | Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III |
| Standards | ARRA CompliantClass I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups F, G, Class III |
| Terminal Type | Pressure Wire |
| Type | 3-Phase |
| UNSPSC | 39121402 |
| UPC 11 | 78138167890 |
| UPC 12 | 781381678902 |
| Width | 5.30 in |
| Width [Metric] | 13.4620 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 60 A |
| Number of Wires | 3 |
| Voltage Rating | 125/250/480 VAC |
| For JBR Receptacles |
| Plug must be inserted into receptacle before the switch is in the on position |
| Plug must be inserted into receptacle before the switch is in the on position3 phase |
| 3-phase |
| 0.39 to 1-3/8 in plug cable diameter |
| Copper free aluminum construction |
| CPH Plugs for EBR, EBRH and DBR Receptacles |
| 4 to 6 AWG copper aluminum terminal block wire |
