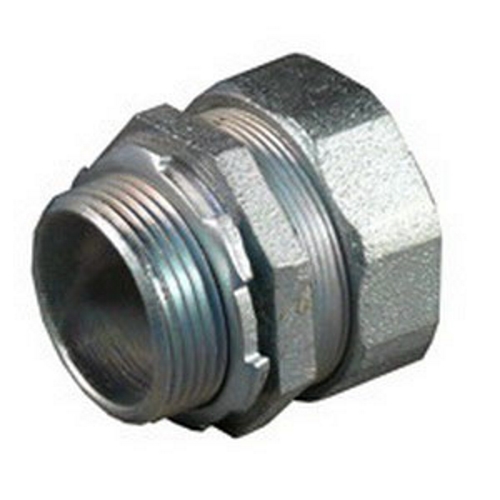

Appleton® CG-5075S Strain Relief Straight Cord Connector, 3/4 in Trade, 1/2 to 5/8 in Cable Openings, Machined Steel
Liquid Tight Straight Cord Connectors
84658
MFG #: CG-5075S
Appleton™
12.12000
/ ea
- Catalog URL - Appleton_SEHT_75_Brochure.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Line Drawing URL - Straight CG-37100.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet 1 URL(Spec Sheet 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Machined steel cap; Neoprene sealing grommet |
| Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed |
| Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord |
| Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion |
| Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap |
| For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors |
| Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable |
| Machined steel cap, neoprene sealing grommet, steel or teflon washer |
| Liquidtight |
