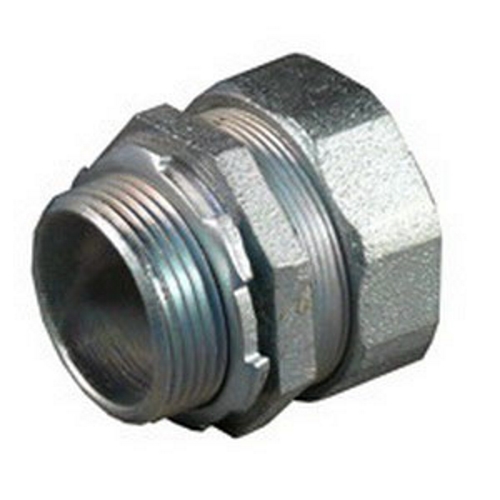

Appleton® CG-112125S Strain Relief Straight Cord Connector, 1-1/4 in Trade, 1-1/8 to 1-1/4 in Cable Openings
Custom_Product_Images_Illustration
Appleton® CG-112125S Strain Relief Straight Cord Connector, 1-1/4 in Trade, 1-1/8 to 1-1/4 in Cable Openings
SKU798779
MFGR #CG112125S
Your Cost: $56.64/ea
Appleton Group's hazardous location cable and cord fitting s provide liquidtight termination and strain relief for neoprene, hypalon, and PVC jacketed power and control cables and cords in a choice of materials for strength and corrosion resistance.
Appleton Group's hazardous location cable and cord fitting s provide liquidtight termination and strain relief for neoprene, hypalon, and PVC jacketed power and control cables and cords in a choice of materials for strength and corrosion resistance.
Application For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable ARRA Compliant Y Buy American Compliant N Catalog Number CG112125S Color Brown Label Conductor Range 1-1/8 - 1-1/4 IN Connection Threaded Hub Connection Type Threaded Hub Country of Origin MX Currency USD Dimensions 2.13 in W EU RoHS Indicator C Gross Weight Per Pack 0.6900 lb Gross Weight per Pack Metric 0.31 Gross Weight UOM Metric kg Height 0.74 in Height [Metric] 18.7960 mm Length 4.10 in Length [Metric] 10.4140 cm NEMA Rating NEMA 3R Series CG Series Size 1-1/4 IN in Standard Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178 Standards ARRA CompliantRoHS CompliantCSA C22.2 No. 18.3CSA 065178UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class IIIUL 514BE14817 Type Strain Relief UNSPSC 39121431 UPC 11 78138144953 UPC 12 781381449533 Width 4.10 in Width [Metric] 10.4140 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Cable Openings 1-1/8 to 1-1/4 in Finish Natural Material Machined Steel Trade Size 1-1/4 in For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Machined steel cap; Neoprene sealing grommet Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable Machined steel cap, neoprene sealing grommet, steel or teflon washer Liquidtight
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | CG112125S |
| Color | Brown Label |
| Conductor Range | 1-1/8 - 1-1/4 IN |
| Connection | Threaded Hub |
| Connection Type | Threaded Hub |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.13 in W |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.6900 lb |
| Gross Weight per Pack Metric | 0.31 |
| Gross Weight UOM Metric | kg |
| Height | 0.74 in |
| Height [Metric] | 18.7960 mm |
| Length | 4.10 in |
| Length [Metric] | 10.4140 cm |
| NEMA Rating | NEMA 3R |
| Series | CG Series |
| Size | 1-1/4 IN in |
| Standard | Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178 |
| Standards | ARRA CompliantRoHS CompliantCSA C22.2 No. 18.3CSA 065178UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class IIIUL 514BE14817 |
| Type | Strain Relief |
| UNSPSC | 39121431 |
| UPC 11 | 78138144953 |
| UPC 12 | 781381449533 |
| Width | 4.10 in |
| Width [Metric] | 10.4140 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Cable Openings | 1-1/8 to 1-1/4 in |
| Finish | Natural |
| Material | Machined Steel |
| Trade Size | 1-1/4 in |
| For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Machined steel cap; Neoprene sealing grommet |
| Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed |
| Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord |
| Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion |
| Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap |
| For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors |
| Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable |
| Machined steel cap, neoprene sealing grommet, steel or teflon washer |
| Liquidtight |
