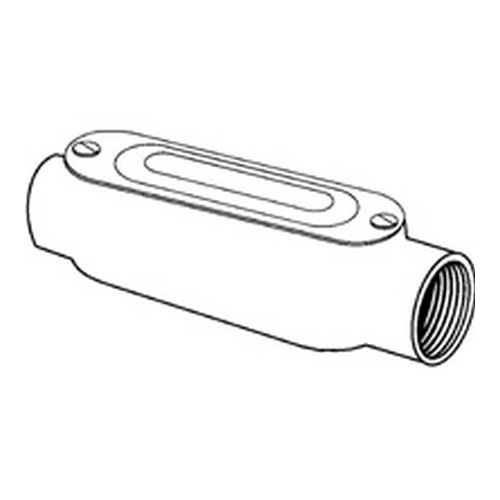

Appleton® C-100ACGA Type C Conduit Outlet Body With Assembled Cover and Gasket, 1 in Hub, 85, 11.8 cu-in, Aluminum
Type C Conduit Fitting Body
329859
MFG #: C100ACGA
Appleton™
31.90000
/ ea
- Catalog URL - Appleton_BC100_A_Brochure.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Line Drawing URL - 11043_Type_C-ACGALINE.jpg(Line Drawing URL)
- Line Drawing URL - Type_C-ACGALINE.jpg(Line Drawing URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - 11043_98YRZCTXKELHP2OG.pdf(Spec Sheet URL)
- Spec Sheet URL - SPE_AEC_MC007_Form_85_Unilet_Conduit_Outlet_Bodies.pdf(Spec Sheet URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copper free aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 11.8 CU-IN as per NEC 314.16(A) |
Serve as pulling fittings |
Make bends in conduit system |
Provide openings for splicing, connect and change direction of conduit runs |
Allow connections for branch runs |
Permit access to conductors for maintenance |
Smooth, rounded integral bushing in each hub protects conductor insulation |
Roomy interiors, more wiring space |
Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance |
Lightweight aluminum facilitates shipping, handling and installing |
Sizes with flat back design ideal where fitting is mounted flat against surface |
Internal volume and maximum wire capacity clearly marked on castings |
Threaded style is raintight when used with casketed covers |
Pressure cast aluminum body |
