Appleton™

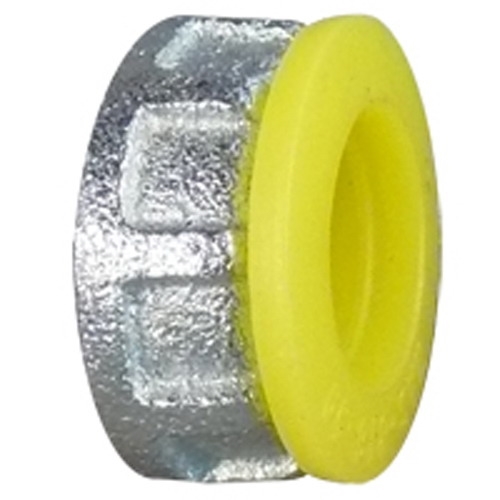

Appleton® BUC-300 BU Series Threaded Conduit Bushing, 3 in Trade, Malleable Iron, Electro-Plated Zinc
Custom_Product_Images_Illustration
Appleton™
Appleton® BUC-300 BU Series Threaded Conduit Bushing, 3 in Trade, Malleable Iron, Electro-Plated Zinc
SKU16836
MFGR #BUC-300
Your Cost: $33.18/ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
Application For Use With Locknut To Terminate Rigid Metal Conduit Or IMC To A Box Or Enclosure ARRA Compliant Y Buy American Compliant N Catalog Number BUC-300 Connection Threaded Country of Origin MX Currency USD Dimensions 3.81 in Dia x 0.94 in H EU RoHS Indicator C Gross Weight Per Pack 0.4700 lb Gross Weight per Pack Metric 0.21 Gross Weight UOM Metric kg Height 0.34 in Height [Metric] 8.6360 mm Length 12.00 in Length [Metric] 30.4800 cm Size 3 IN in Standard UL 514B, E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1 Standards ARRA CompliantRoHS CompliantCSA 065178 C22.2 No. 18.3NEMA FB-1UL 514B E14814 Type Capped Bushing UNSPSC 39121312 UPC 11 78138116295 UPC 12 781381162951 Width 10.60 in Width [Metric] 26.9240 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplated Material Malleable Iron Trade Size 3 in For Use With Locknut To Terminate Rigid Metal Conduit Or IMC To A Box Or Enclosure Provides a smooth pulling surface; Non-grounding Provides capped smooth pulling surface, non-grounding These bushings are used with a locknut to terminate rigid metal conduit or IMC to a box or enclosure and to provide a smooth surface for pulling cable without damaging insulation Polyethylene cap
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Locknut To Terminate Rigid Metal Conduit Or IMC To A Box Or Enclosure |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | BUC-300 |
| Connection | Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3.81 in Dia x 0.94 in H |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.4700 lb |
| Gross Weight per Pack Metric | 0.21 |
| Gross Weight UOM Metric | kg |
| Height | 0.34 in |
| Height [Metric] | 8.6360 mm |
| Length | 12.00 in |
| Length [Metric] | 30.4800 cm |
| Size | 3 IN in |
| Standard | UL 514B, E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantCSA 065178 C22.2 No. 18.3NEMA FB-1UL 514B E14814 |
| Type | Capped Bushing |
| UNSPSC | 39121312 |
| UPC 11 | 78138116295 |
| UPC 12 | 781381162951 |
| Width | 10.60 in |
| Width [Metric] | 26.9240 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplated |
| Material | Malleable Iron |
| Trade Size | 3 in |
| For Use With Locknut To Terminate Rigid Metal Conduit Or IMC To A Box Or Enclosure |
| Provides a smooth pulling surface; Non-grounding |
| Provides capped smooth pulling surface, non-grounding |
| These bushings are used with a locknut to terminate rigid metal conduit or IMC to a box or enclosure and to provide a smooth surface for pulling cable without damaging insulation |
| Polyethylene cap |
