Appleton™

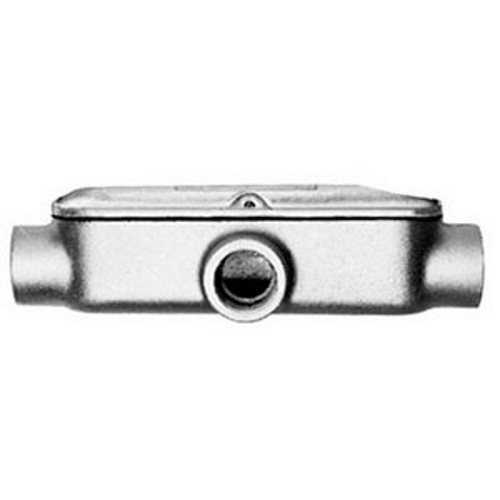

Appleton® BT200-M Unilets™ NEC 8X Type T Conduit Outlet Body With Cover and Gasket, 2 in Hub, 143 cu-in, Malleable Iron
Custom_Product_Images_Illustration
Appleton™
Appleton® BT200-M Unilets™ NEC 8X Type T Conduit Outlet Body With Cover and Gasket, 2 in Hub, 143 cu-in, Malleable Iron
SKU376088
MFGR #BT200M
Your Cost: $543.76/ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality componets you need.
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality componets you need.
Application For Use With Rigid Metal Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number BT200M Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 17.94 in L x 4.13 in W x 4.44 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 14.0000 lb Gross Weight per Pack Metric 6.35 Gross Weight UOM Metric kg Height 3.30 in Height [Metric] 8.3820 cm Length 18.00 in Length [Metric] 45.7200 cm Number of Hubs 3 Series NEC 8x Standard UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards ARRA CompliantRoHS CompliantUL 514B File No. E2527C22.2 No. 18.3/065183 Certified Sub Brand Mogul UNILETS Type Type T UNSPSC 39131708 UPC 11 78138146364 UPC 12 781381463645 Width 4.50 in Width [Metric] 11.4300 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 143 in³ Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Hub Size 2 in Material Malleable Iron For Use With Rigid Metal Conduit And IMC Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; These are like C moguls (1 IN through 4 IN), except with an additional middle side hub-distance between the centerline of each C hub conduit stop exceeds eight times the trade diameter of the conduit per NEC 314.28(A)(1); Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 143 CU-IN Exclusive built-in rollers facilitate cable pulling Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and ground continuity Covers have captive stainless steel screws to speed installation, prevent freezing of screws These are like "C" moguls (1 thru 4 in), except with an additional middle side hub Distance between the centerline of each "C" hub conduit stop exceeds eight times the trade diameter of the conduit per NEC 314.28(A)(1) Larger body size facilitates pulling of large and heavy conductors Specially designed raised cast covers provide additional wiring area Mogul Unilets™ for pulling straight, 45 or 90 deg angle turns and/or making taps and splices Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Metal Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | BT200M |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 17.94 in L x 4.13 in W x 4.44 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 14.0000 lb |
| Gross Weight per Pack Metric | 6.35 |
| Gross Weight UOM Metric | kg |
| Height | 3.30 in |
| Height [Metric] | 8.3820 cm |
| Length | 18.00 in |
| Length [Metric] | 45.7200 cm |
| Number of Hubs | 3 |
| Series | NEC 8x |
| Standard | UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantUL 514B File No. E2527C22.2 No. 18.3/065183 Certified |
| Sub Brand | Mogul UNILETS |
| Type | Type T |
| UNSPSC | 39131708 |
| UPC 11 | 78138146364 |
| UPC 12 | 781381463645 |
| Width | 4.50 in |
| Width [Metric] | 11.4300 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 143 in³ |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Hub Size | 2 in |
| Material | Malleable Iron |
| For Use With Rigid Metal Conduit And IMC |
| Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; These are like C moguls (1 IN through 4 IN), except with an additional middle side hub-distance between the centerline of each C hub conduit stop exceeds eight times the trade diameter of the conduit per NEC 314.28(A)(1); Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 143 CU-IN |
| Exclusive built-in rollers facilitate cable pulling |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Covers have captive stainless steel screws to speed installation, prevent freezing of screws |
| These are like "C" moguls (1 thru 4 in), except with an additional middle side hub |
| Distance between the centerline of each "C" hub conduit stop exceeds eight times the trade diameter of the conduit per NEC 314.28(A)(1) |
| Larger body size facilitates pulling of large and heavy conductors |
| Specially designed raised cast covers provide additional wiring area |
| Mogul Unilets™ for pulling straight, 45 or 90 deg angle turns and/or making taps and splices |
| Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) |
