Appleton™

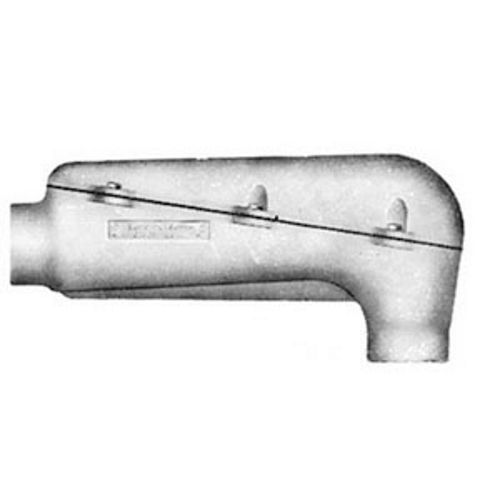

Appleton® BLB250-A Unilets™ NEC 6x Type LB Mogul Conduit Body With Cover and Gasket, 2-1/2 in Hub, 210 cu-in, Aluminium
Custom_Product_Images_Illustration
Appleton™
Appleton® BLB250-A Unilets™ NEC 6x Type LB Mogul Conduit Body With Cover and Gasket, 2-1/2 in Hub, 210 cu-in, Aluminium
SKU186984
MFGR #BLB250A
Your Cost: $1,093.07/ea
The NEC 6x8x Series provides ample room for pulling and wiring large, heavy connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
The NEC 6x8x Series provides ample room for pulling and wiring large, heavy connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Application For Use With Rigid Metal Conduit And IMC ARRA Compliant N Buy American Compliant N Catalog Number BLB250A Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 17.88 in L x 5.88 in W x 8 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 8.8100 lb Gross Weight per Pack Metric 4.00 Gross Weight UOM Metric kg Height 7.40 in Height [Metric] 18.7960 cm Length 18.10 in Length [Metric] 45.9740 cm Number of Hubs 2 Series NEC 6x Standard UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards UL 514B File No. E2527CSA C22.2 No. 18.3/065183RoHS Compliant Sub Brand Mogul UNILETS Type Type LB UNSPSC 39131708 UPC 11 78138147449 UPC 12 781381474498 Width 8.50 in Width [Metric] 21.5900 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 210 in³ Finish Epoxy Powder Coated Hub Size 2-1/2 in Material Aluminum For Use With Rigid Metal Conduit And IMC Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2); Bending space requirement: These moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) table; Furnished with rollers for easier cable pulling; Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 210 CU-IN Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and ground continuity Covers have captive stainless steel screws to speed installation, prevent freezing of screws Length requirement distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2) Bending space requirement these moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) Larger body size facilitates pulling of large and heavy conductors Specially designed raised cast covers provide additional wiring area Larger body size facilitates pulling of large and heavy conductors, specially designed raised cast covers provide additional wiring area Stainless steel screw, neoprene gasket
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Metal Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BLB250A |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 17.88 in L x 5.88 in W x 8 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 8.8100 lb |
| Gross Weight per Pack Metric | 4.00 |
| Gross Weight UOM Metric | kg |
| Height | 7.40 in |
| Height [Metric] | 18.7960 cm |
| Length | 18.10 in |
| Length [Metric] | 45.9740 cm |
| Number of Hubs | 2 |
| Series | NEC 6x |
| Standard | UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | UL 514B File No. E2527CSA C22.2 No. 18.3/065183RoHS Compliant |
| Sub Brand | Mogul UNILETS |
| Type | Type LB |
| UNSPSC | 39131708 |
| UPC 11 | 78138147449 |
| UPC 12 | 781381474498 |
| Width | 8.50 in |
| Width [Metric] | 21.5900 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 210 in³ |
| Finish | Epoxy Powder Coated |
| Hub Size | 2-1/2 in |
| Material | Aluminum |
| For Use With Rigid Metal Conduit And IMC |
| Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2); Bending space requirement: These moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) table; Furnished with rollers for easier cable pulling; Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 210 CU-IN |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Covers have captive stainless steel screws to speed installation, prevent freezing of screws |
| Length requirement distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2) |
| Bending space requirement these moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) |
| Larger body size facilitates pulling of large and heavy conductors |
| Specially designed raised cast covers provide additional wiring area |
| Larger body size facilitates pulling of large and heavy conductors, specially designed raised cast covers provide additional wiring area |
| Stainless steel screw, neoprene gasket |
